Customized/Used Mining Hydraulic Integrated DTH Drilling Rig Machine
Customized/Used Mining Hydraulic Integrated DTH Drilling Rig Machine
Customized/Used Mining Hydraulic Integrated DTH Drilling Rig Machine
Customized/Used Mining Hydraulic Integrated DTH Drilling Rig Machine
Customized/Used Mining Hydraulic Integrated DTH Drilling Rig Machine
1 / 5
Customized/Used Mining Hydraulic Integrated DTH Drilling Rig Machine
Customized/Used Mining Hydraulic Integrated DTH Drilling Rig Machine
Customized/Used Mining Hydraulic Integrated DTH Drilling Rig Machine
Customized/Used Mining Hydraulic Integrated DTH Drilling Rig Machine
Customized/Used Mining Hydraulic Integrated DTH Drilling Rig Machine

Customized/Used Mining Hydraulic Integrated DTH Drilling Rig Machine

After-sales Service: 12 Months
Warranty: 12 Months
Hole Depth: 30m
Send Inquiry

Product Description

📋

Basic Info.

Model NO.
TH99
Drill Rod
60*3000mm
Hole Diameter Range
80-115mm
Diesel Engine Brand
Yuchai
Engine Model
Yc6j220-H300
Free Air Delivery
13.5 M3/Min
Working Pressure
16 Bar
Rotary Torque
1500 Nm
Electrical Voltage
24 V
Feed Type
Cylinder/Chain
Feed Travel Length
3700mm
Feed Extension
1000 mm
Max.Feed Force
12 kN
Max.Pul · L up Force
18 kN
Tramming Speed
1.6 - 2.9 Km/H
Origin
China
Production Capacity
50000PCS/Year
⚙️

Product Description

The Integrated DTH Rig is a compact and mobile air compressor that combines a down-the-hole drill rig and a mobile air compressor. Flexible, easy to shift and transition. The drilling rig is equipped with two-stage dry dust removal, which has excellent effect on resisting dust emissions. It is mainly used in open-pit projects such as ore and limestone mining and road engineering construction.
📊

Product Parameters

ITEM B1 B3 B4 B5 B6 B7
Diesel engineYUCHAICumminsYUCHAICumminsCumminsCummins
Engine power182kw154kw176kw194kw194kw262kw
Drilling hardnessF6-20F6-20F6-20F6-20F6-20F6-20
Drilling diameter80-115mm90-130mm90-140mm90-138mm90-138mm90-138mm
Drilling depth30M30M30M30M30M30M
Suitable rod60*300mm60/76*300mm76*300mm76*300mm76*300mm76*300mm
Air endSingle stageSingle stageTwo stageSingle stageTwo stageSingle stage
Working pressure16bar16bar18bar18bar18bar20bar
Air consumption13m³15m³16m³15m³18m³18m³
Rotary torque1500N/M2000N/M2000N/M1500N/M2300N/M2300N/M
Travelling speed1.6-2.9KM/H2-3KM/H1.6-3.2KM/H1.6-3.2KM/H1.6-3.3KM/H1.6-3.6KM/H
Weight8500kg9200kg10500kg11000kg12000kg14500kg
🔍

Basic Information Display

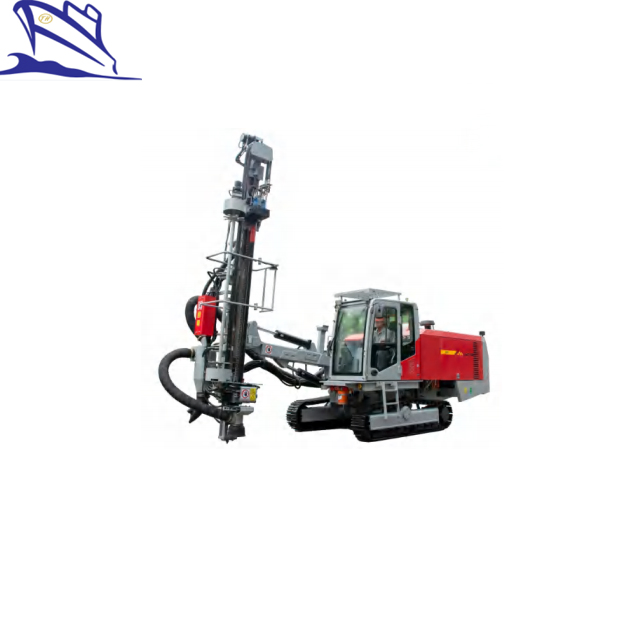

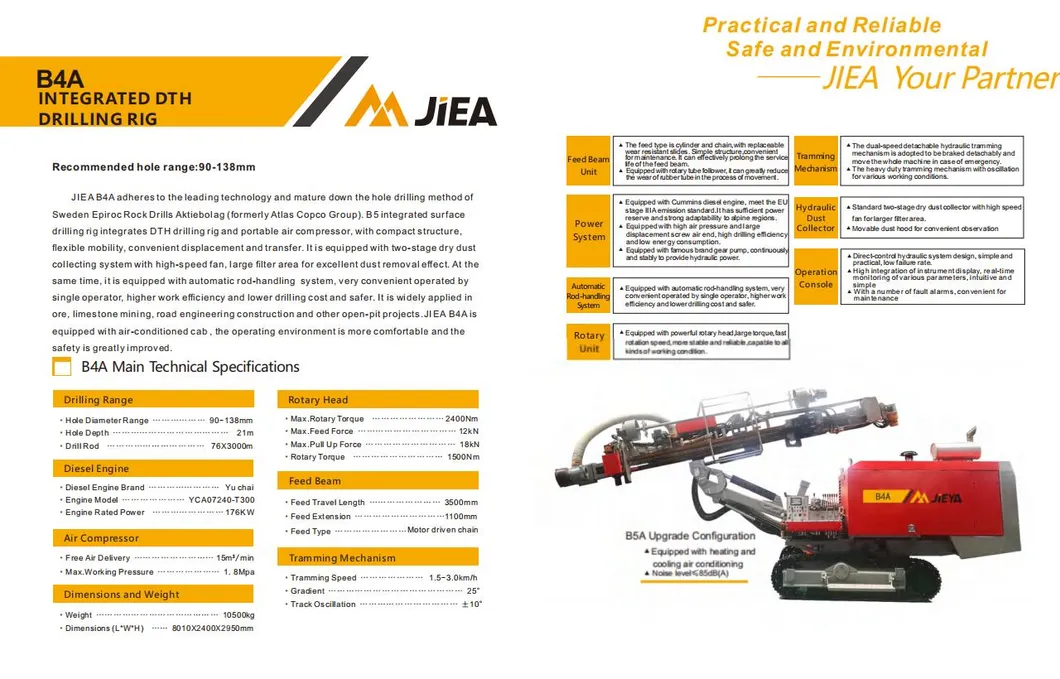

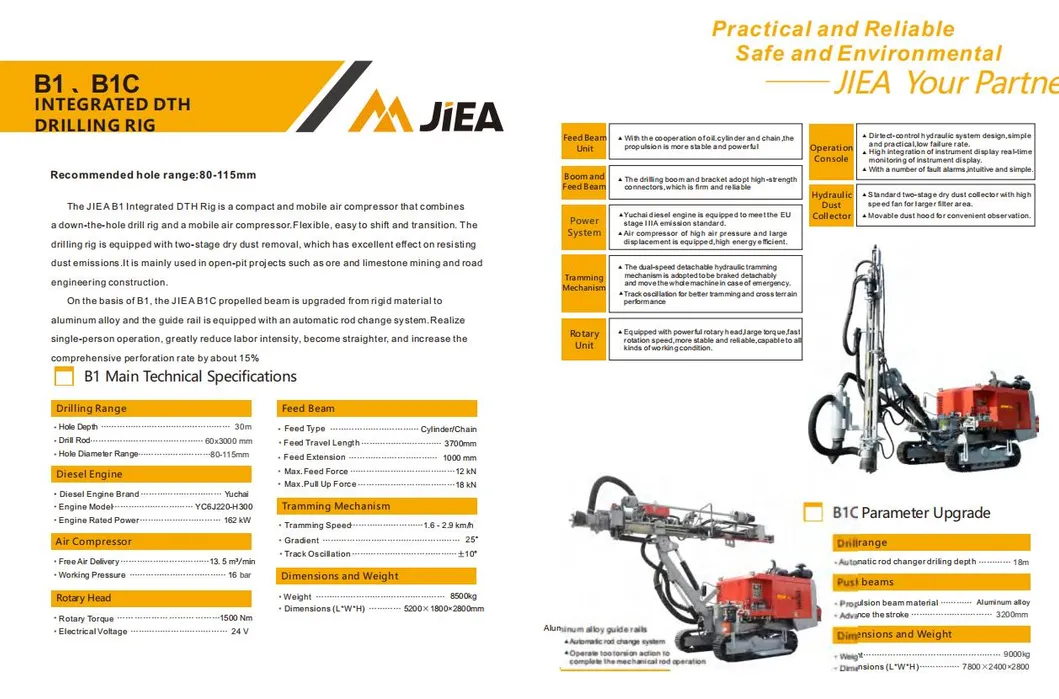

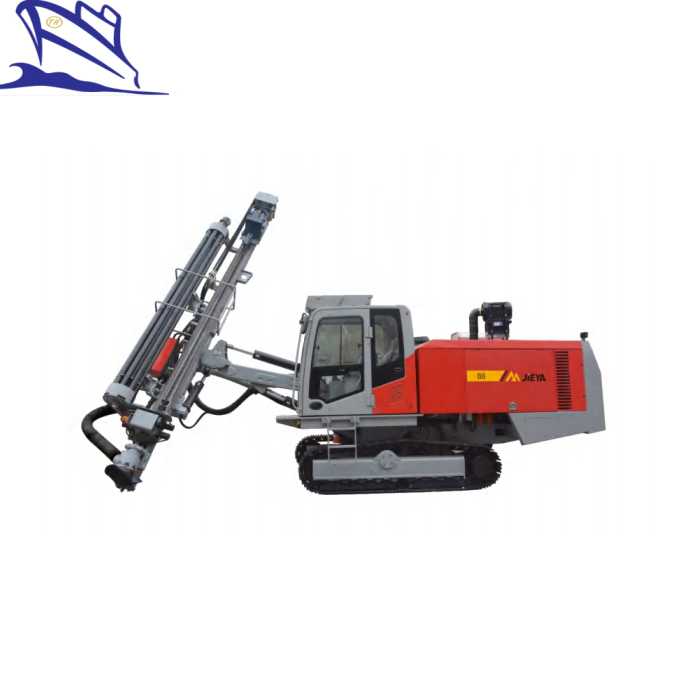

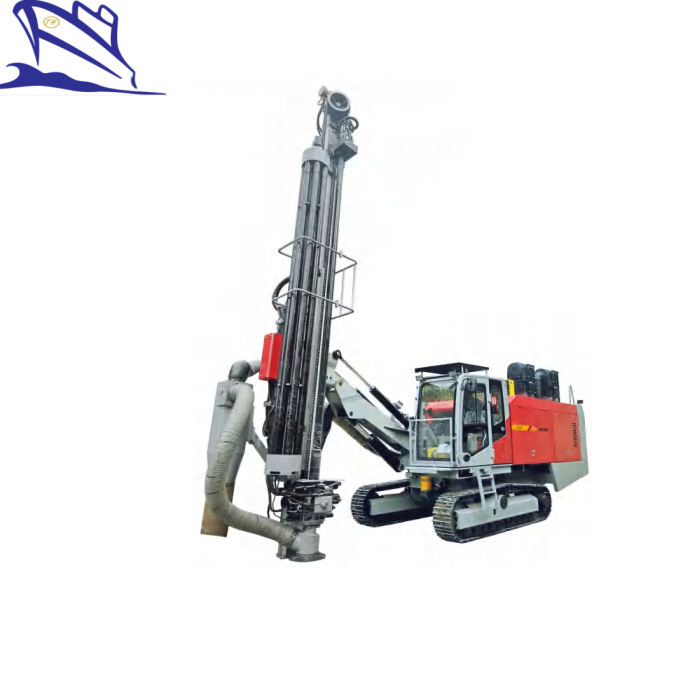

Mining Hydraulic Integrated DTH Drilling Rig Machine

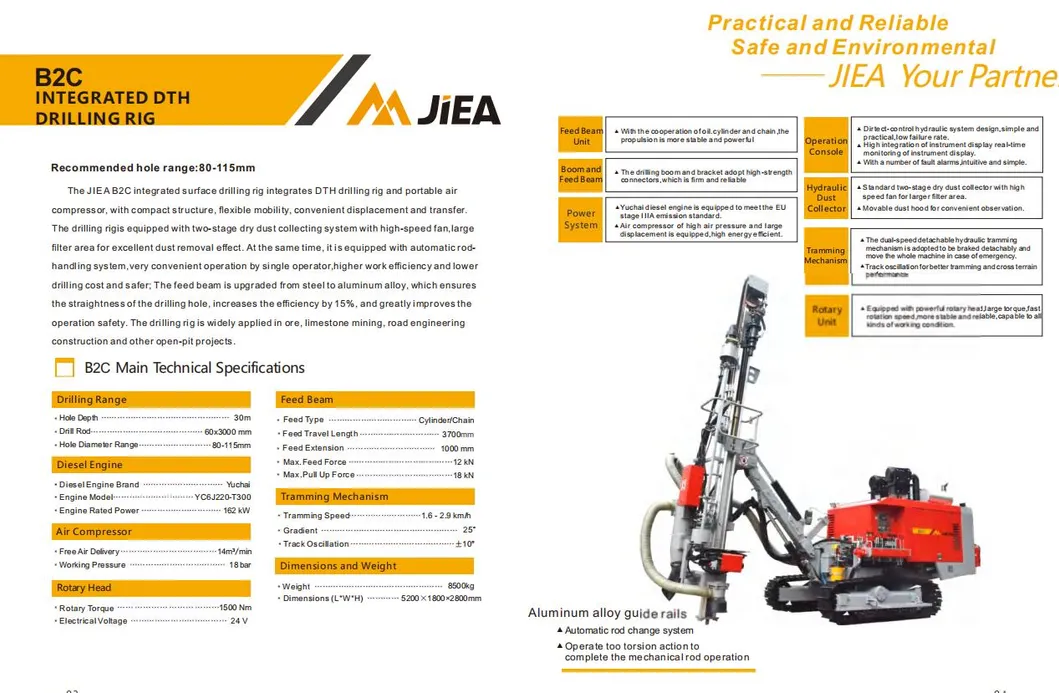

Integrated DTH Drilling Rig

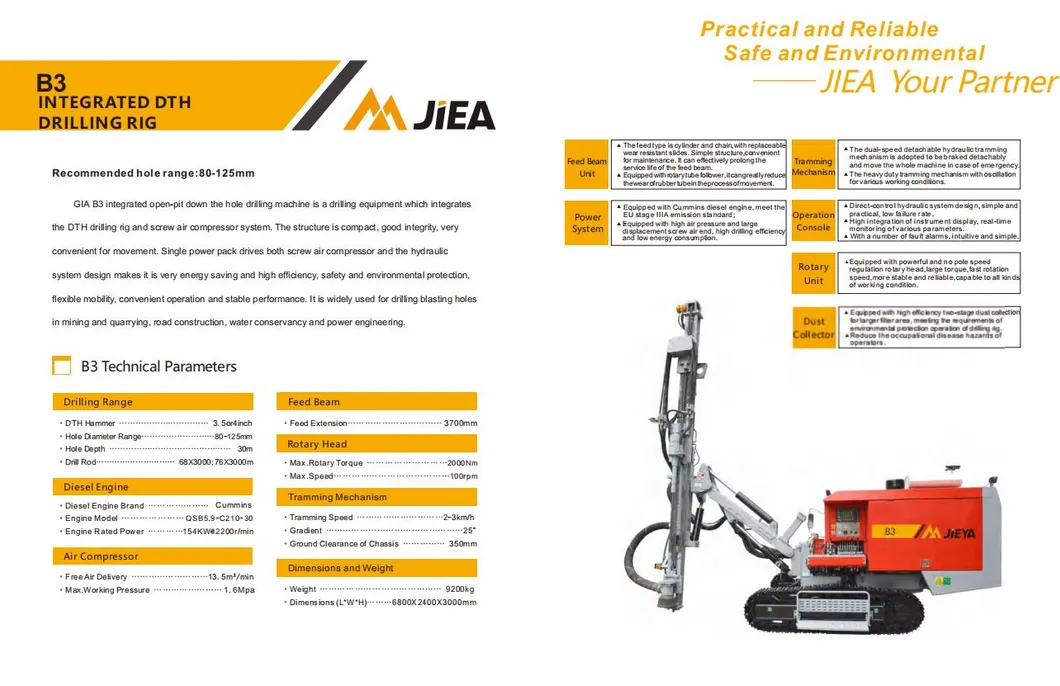

Drilling Rig Machine View

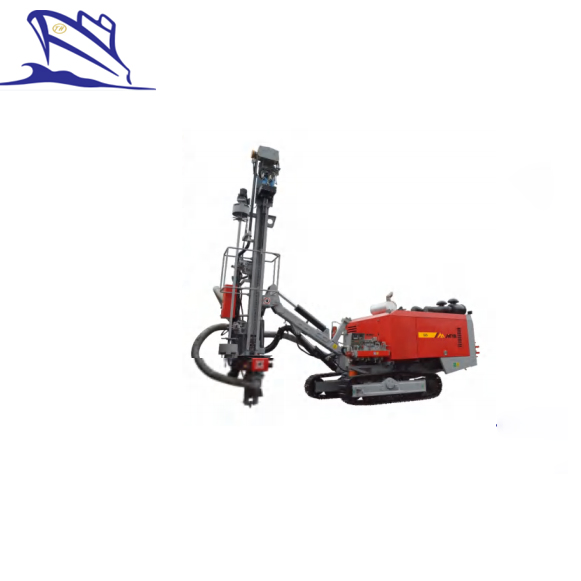

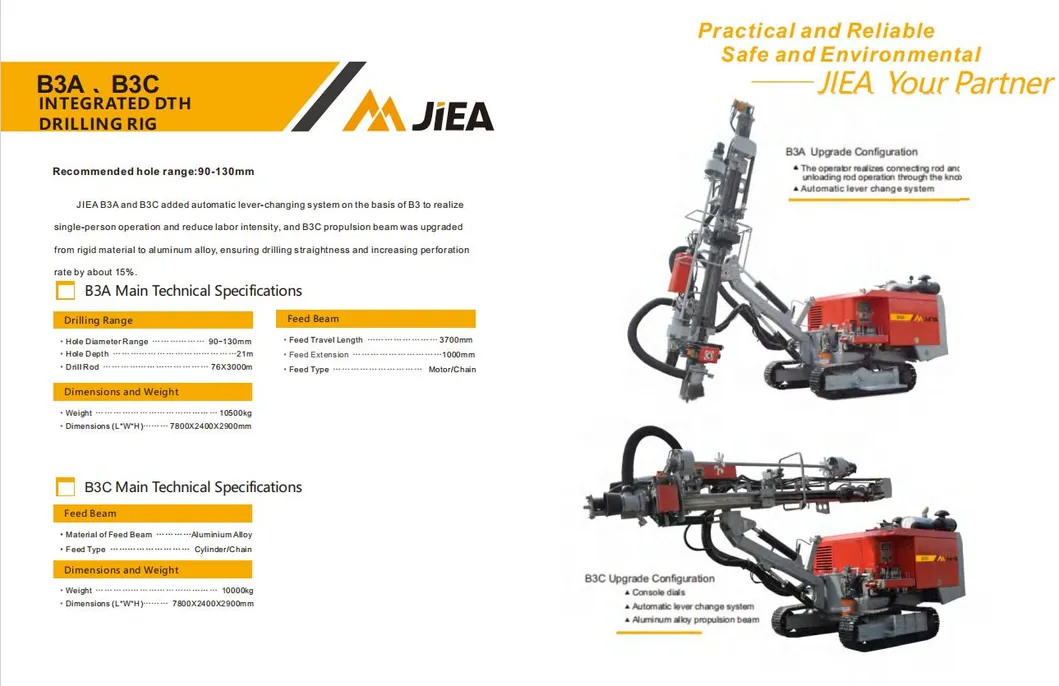

Hydraulic Drilling Rig

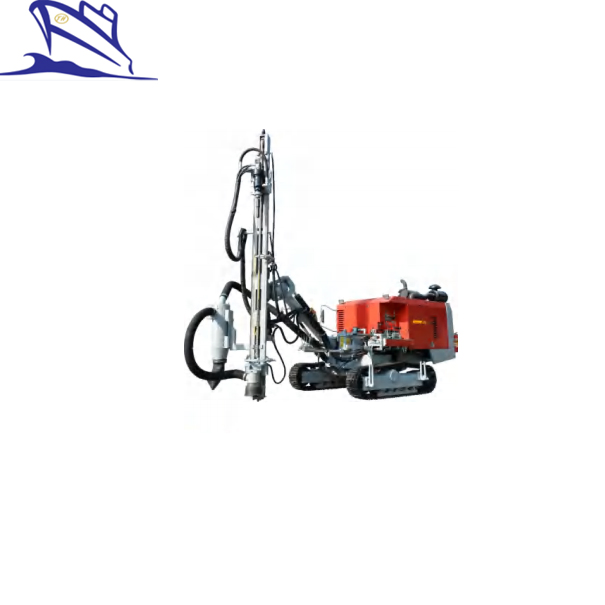

DTH Drilling Equipment
📸

Detailed Photos

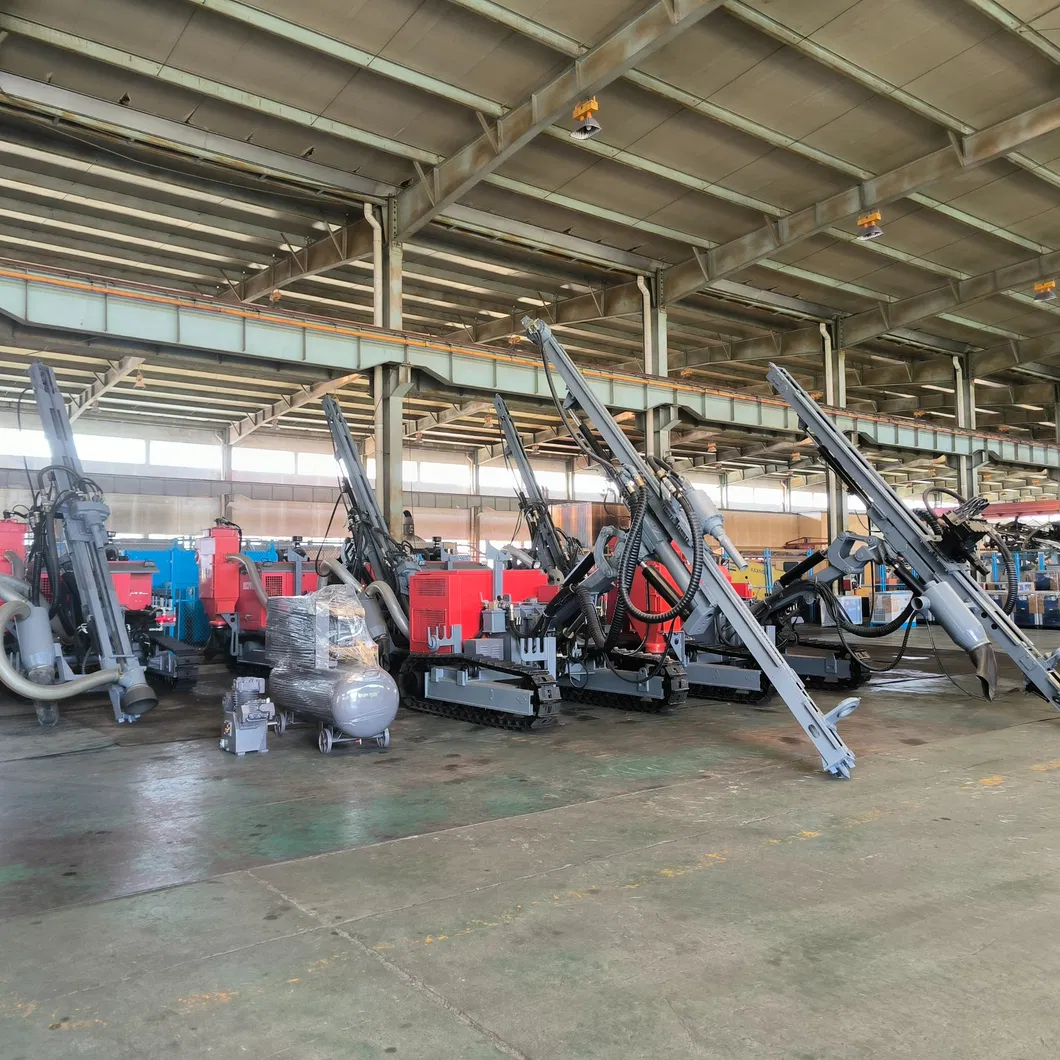

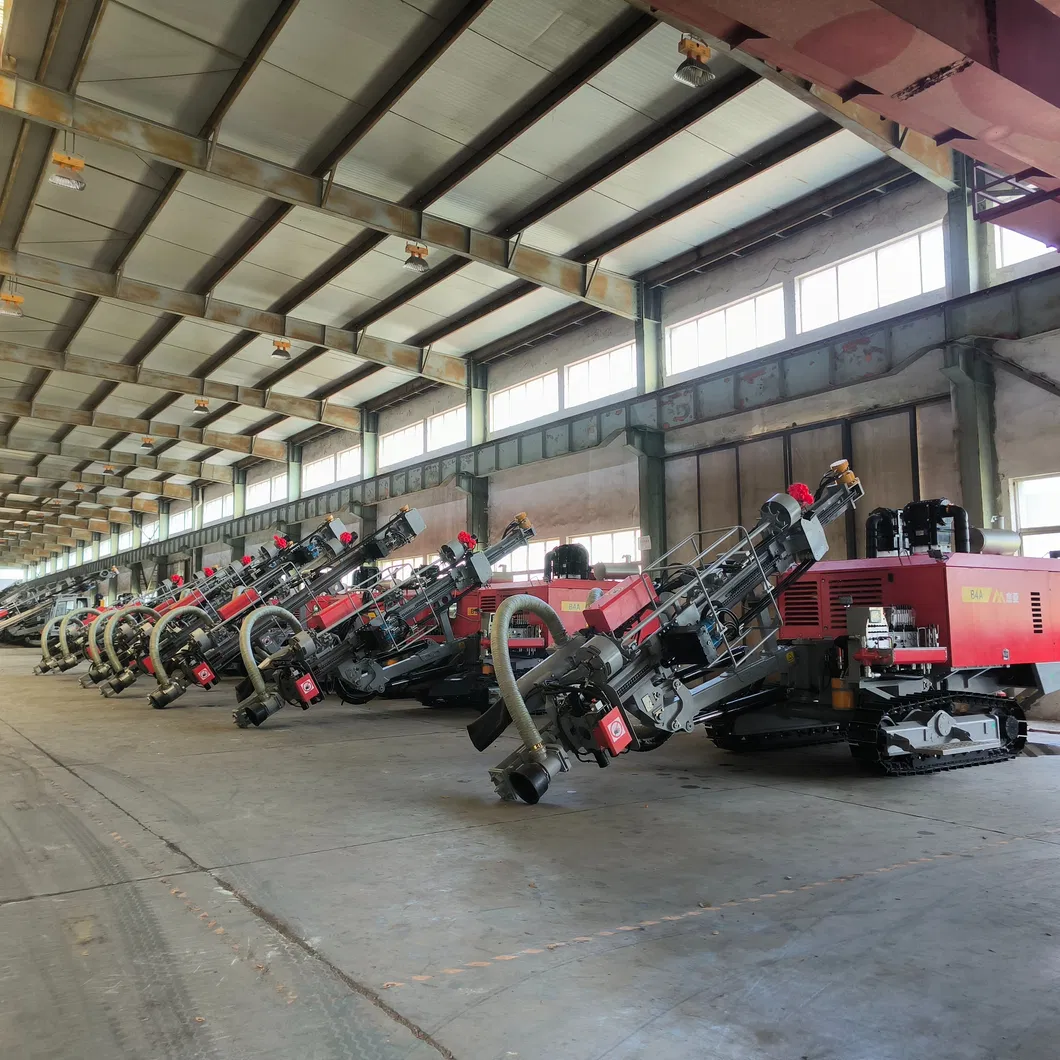

Detailed Component 1
Detailed Component 2
⭐

Our Advantages

  • 01
    Our founding team has experience of more than 15 years in ship building and ship repair with our own engineer and designer.
  • 02
    Equipment quality guarantee: We maintain detailed manufacturer files to ensure high product quality and can deploy engineers for installation and testing assistance.
  • 03
    We serve as a second-hand broker to help you find specific used vessels that meet your satisfaction.
  • 04
    One-stop service: We provide CKD kits utilizing our laser-cutting machinery and strong purchasing capabilities.
  • 05
    Our professional technical team develops perfect plans and solves pre-sale and after-sale matters efficiently.
  • 06
    Global Reach: Extensive customer distribution across Tananzia, Rwanda, India, Portugal, Russia, Malaysia, Mexico, and more.
Advantage Image 1
Advantage Image 2
Advantage Image 3
Advantage Image 4
Advantage Image 5
❓

Frequently Asked Questions

What are the primary applications for the Integrated DTH Rig?
The rig is primarily used for open-pit projects, including ore mining, limestone mining, and road engineering construction.
What drilling diameter and depth can these machines achieve?
Depending on the model (B1 to B7), the drilling diameter ranges from 80mm to 140mm, with a standard drilling depth capability of up to 30 meters.
Does the equipment feature any dust control technology?
Yes, the rigs are equipped with a two-stage dry dust removal system, which is highly effective in minimizing dust emissions during operation.
Which engine brands are used in these drilling rigs?
We utilize high-performance engines from reputable brands like Yuchai and Cummins to ensure reliability and power.
What is the advantage of the integrated design?
The integrated design combines the drill rig and air compressor into a single mobile unit, making it exceptionally flexible and easy to shift between work sites.
What is the climbing capacity of the drilling rig?
The machines offer a climbing capacity between 20° and 25°, allowing for effective navigation in challenging terrain.
