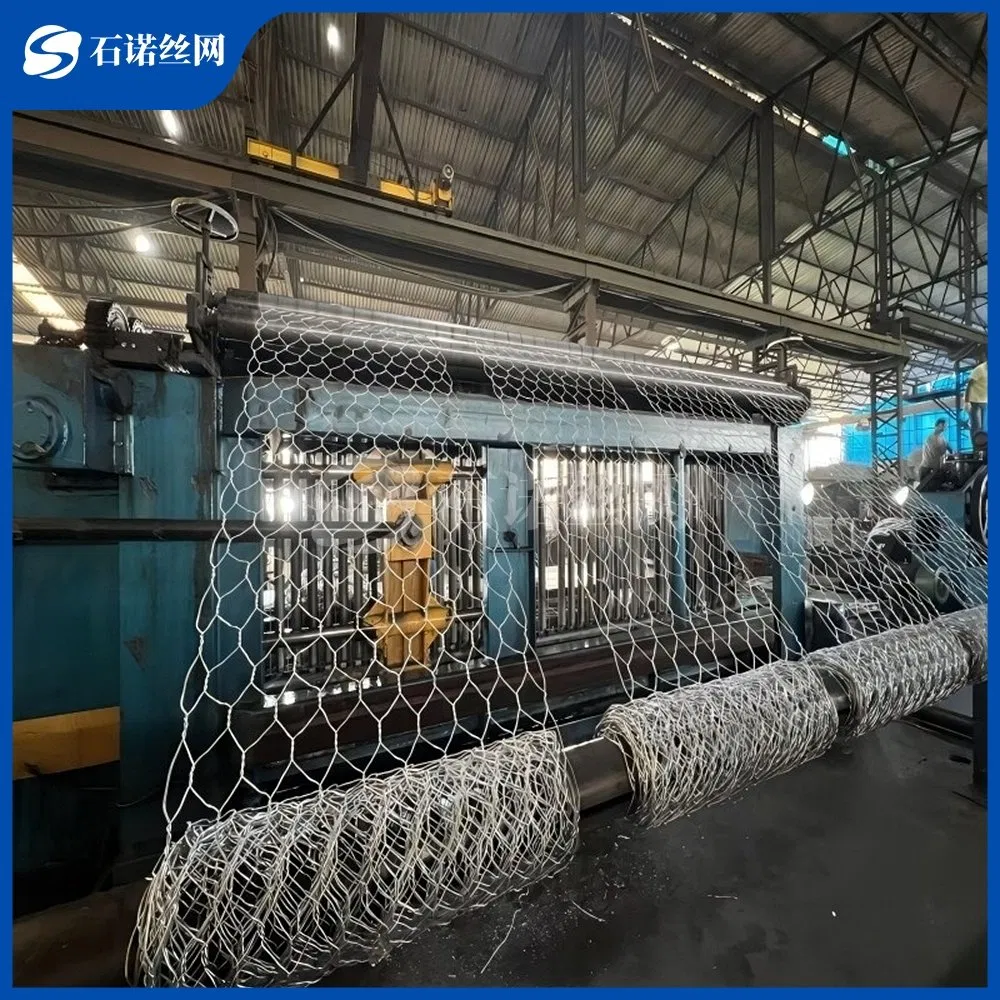

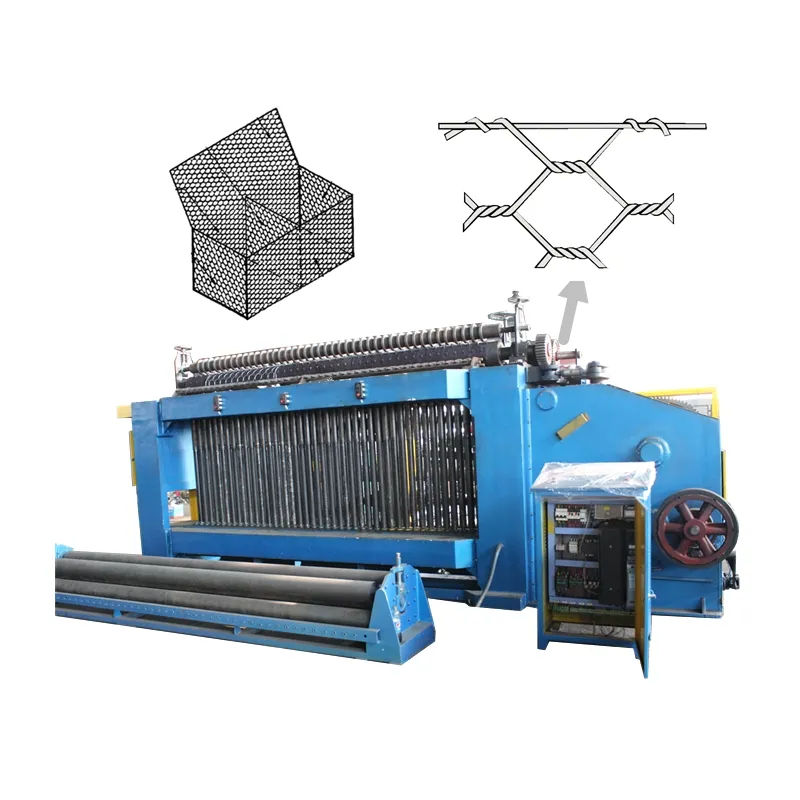

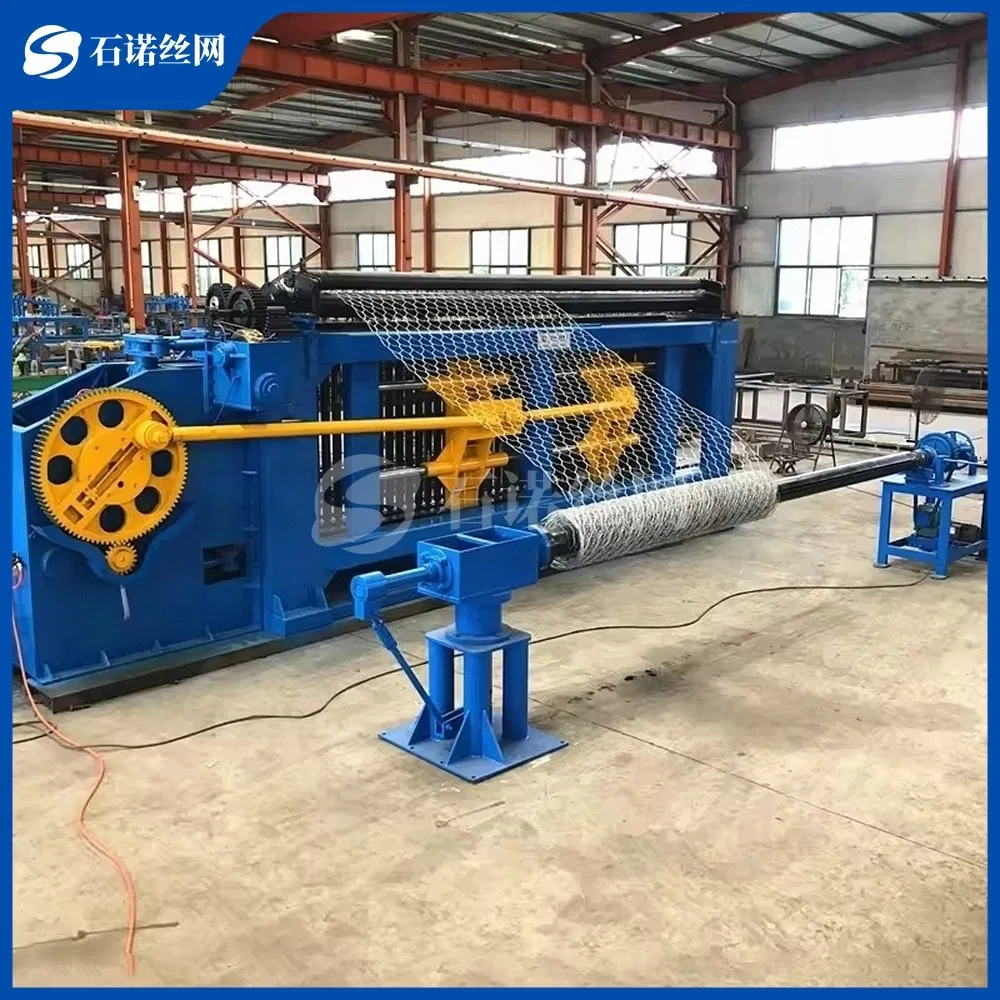

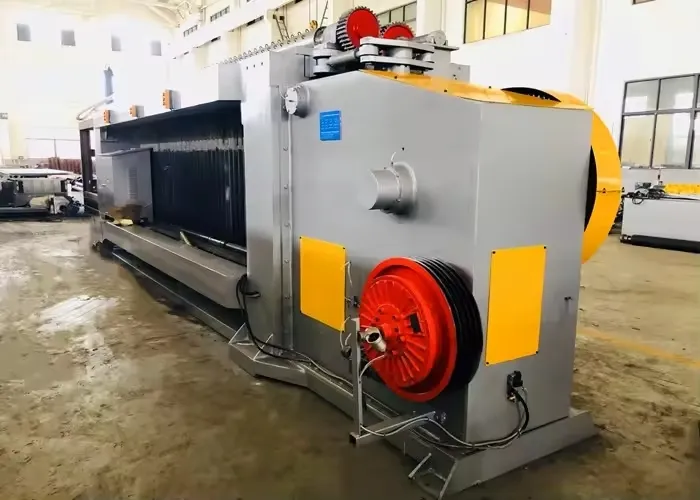

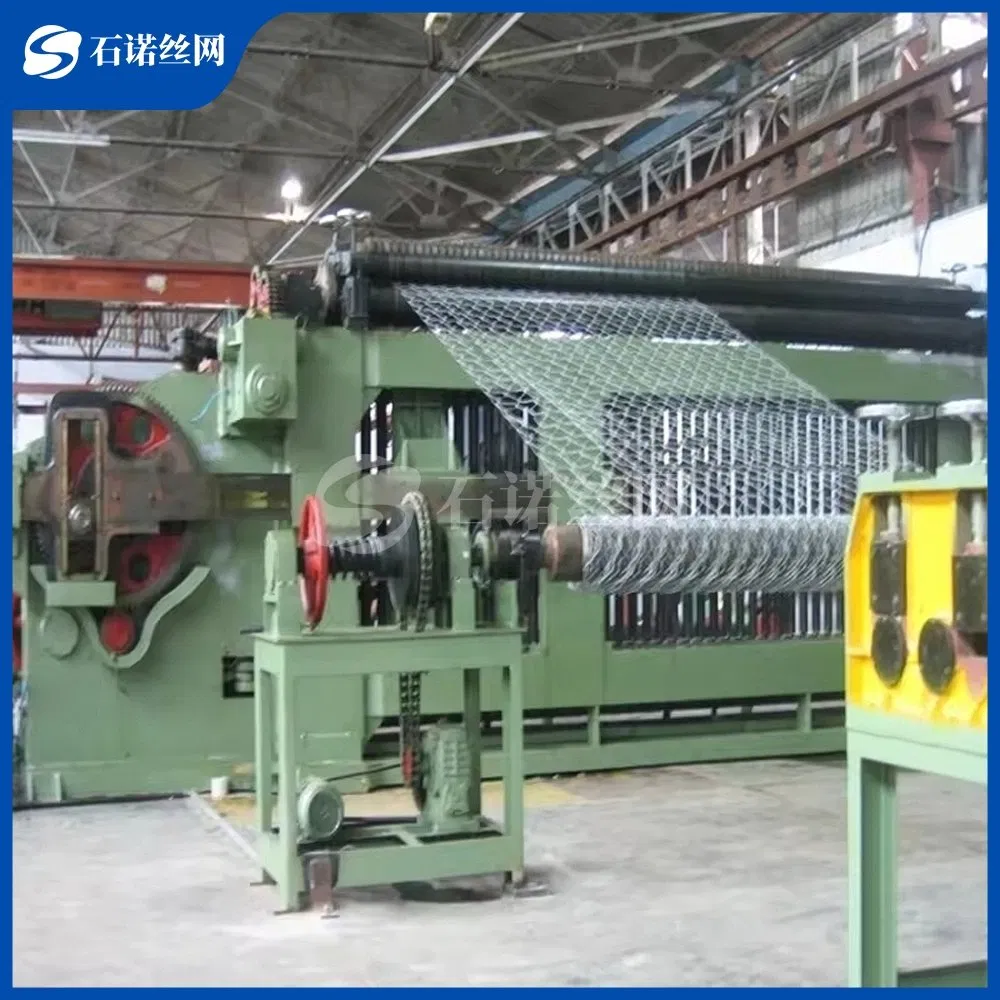

A gabion machine is a machine that produces hexagonal wire mesh, then folds and connects the mesh sheets together to form a complete gabion box.

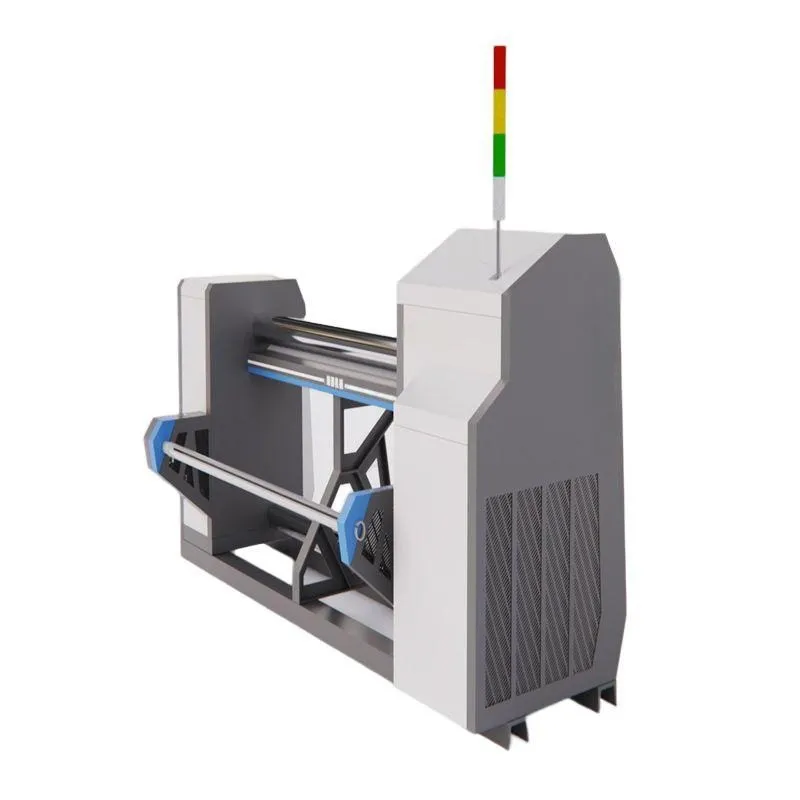

The basic working principle of the fully automatic hydraulic gabion press is to weave the wire horizontally and interweave it with vertically woven wire. Gabion machines and gabion cage machines are widely used in water conservancy projects, mountain protection, and mine protection around the world.

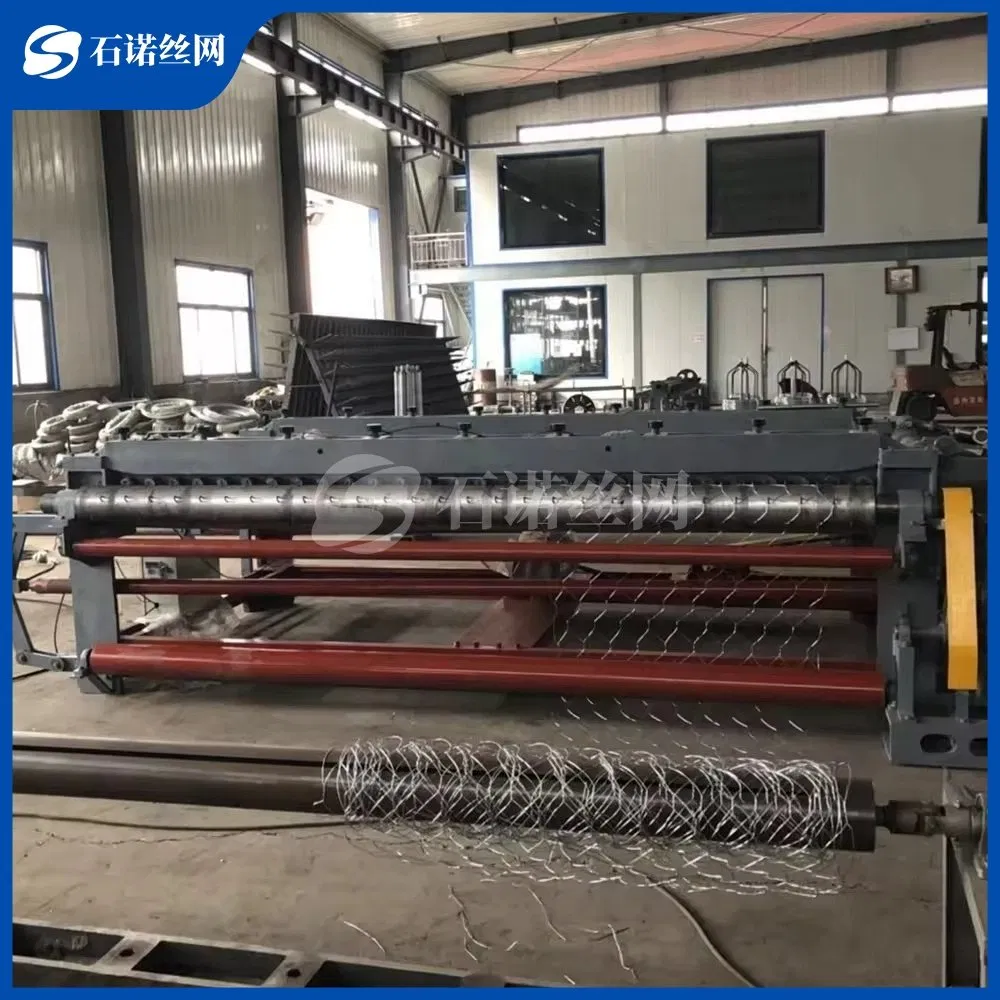

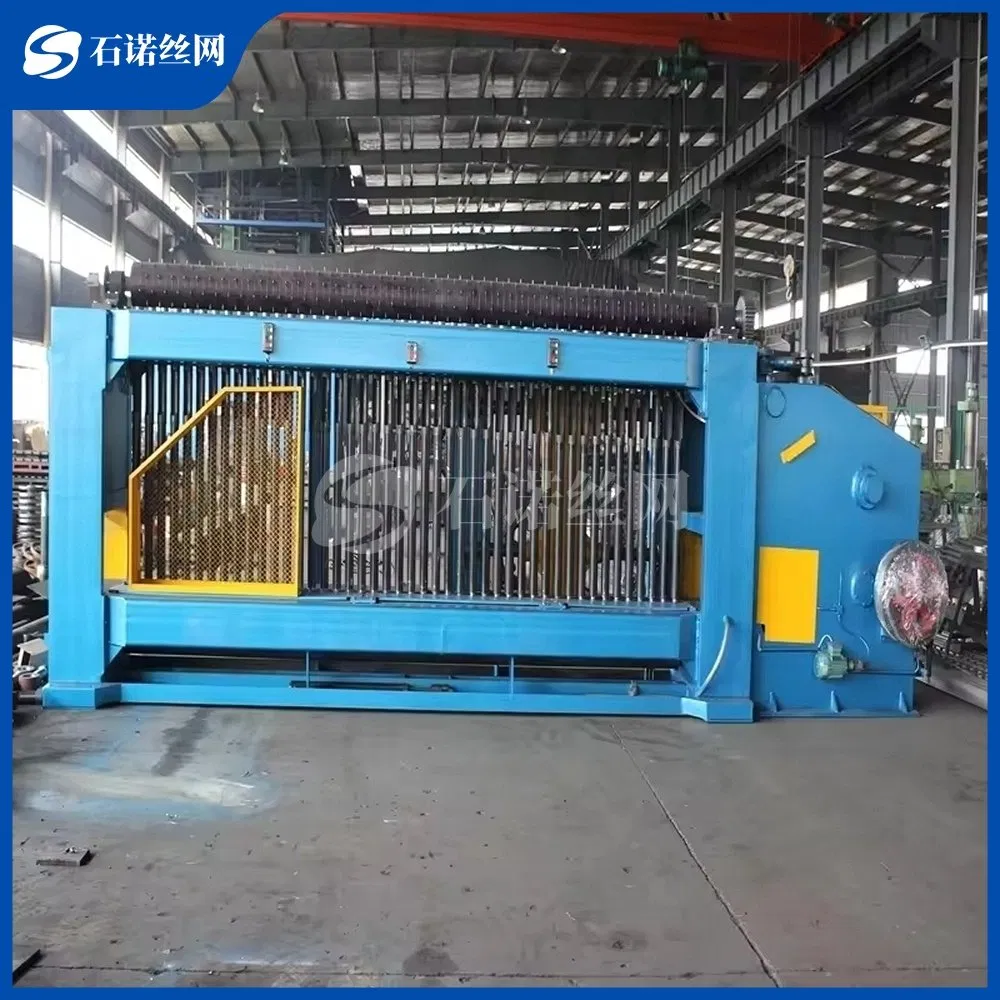

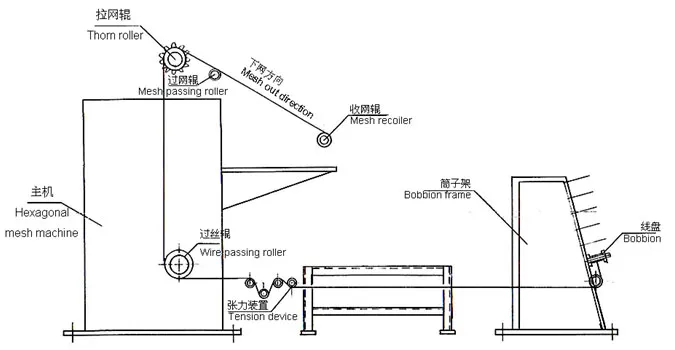

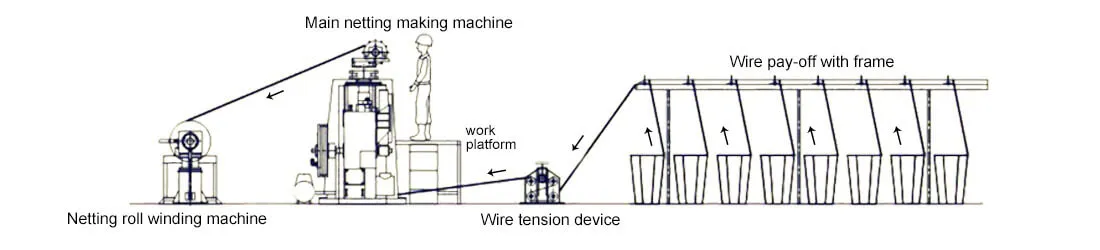

Gabions are more economical than concrete products. A gabion machine includes a pay-off frame, a pay-off device, a tensioning device, a main mesh machine, and a mesh winding machine.
| Mesh Size (mm) | Max Netting (mm) | Max.Dia Wire (mm) | Bordering Wire (mm) | Vein No. | Power (kw) | Capacity (Sq.m/H) | Size (LxWxH) | Weight (T) |
|---|---|---|---|---|---|---|---|---|
| 60x80 | 4500 | 2.7 | 4.0 | 3/5 | 30 | 400-400 | 8.2x1.4x2.4 | 13 |
| 60x80 | 5500 | 2.7 | 4.0 | 3/5 | 30 | 500-550 | 9.2x1.4x2.4 | 14 |
| 80x100 | 4500 | 3.0 | 4.0 | 3/5 | 30 | 480-520 | 8.2x1.4x2.4 | 13 |
| 100x120 | 5500 | 3.5 | 4.0 | 3/5 | 30 | 560-600 | 9.2x1.4x2.4 | 14 |
Bank Protection
Gabion structures are highly successful for riverbank and slope protection, achieving results unattainable by other methods. In urban areas, they construct embankments that are neat, space-saving, and aesthetically pleasing with a natural feel.
