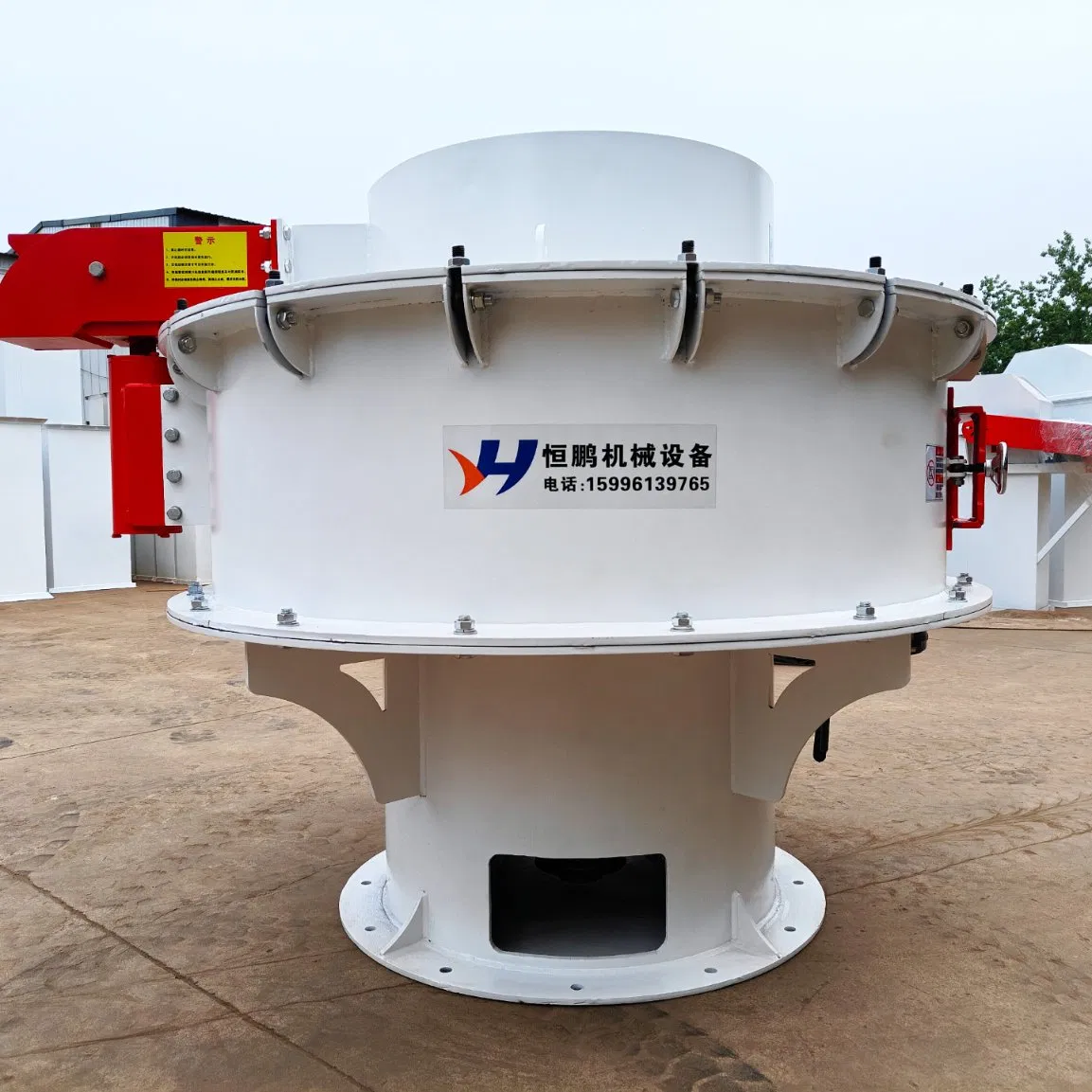

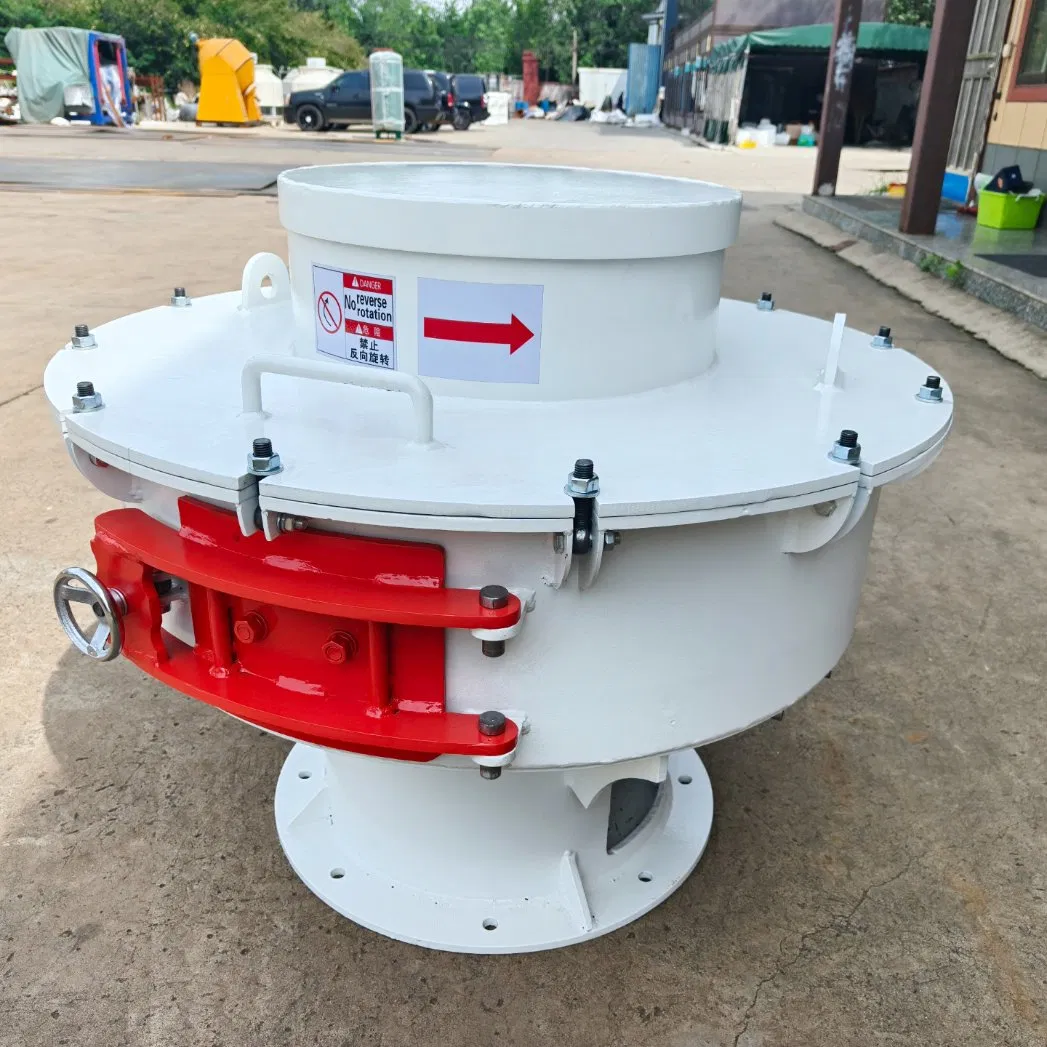

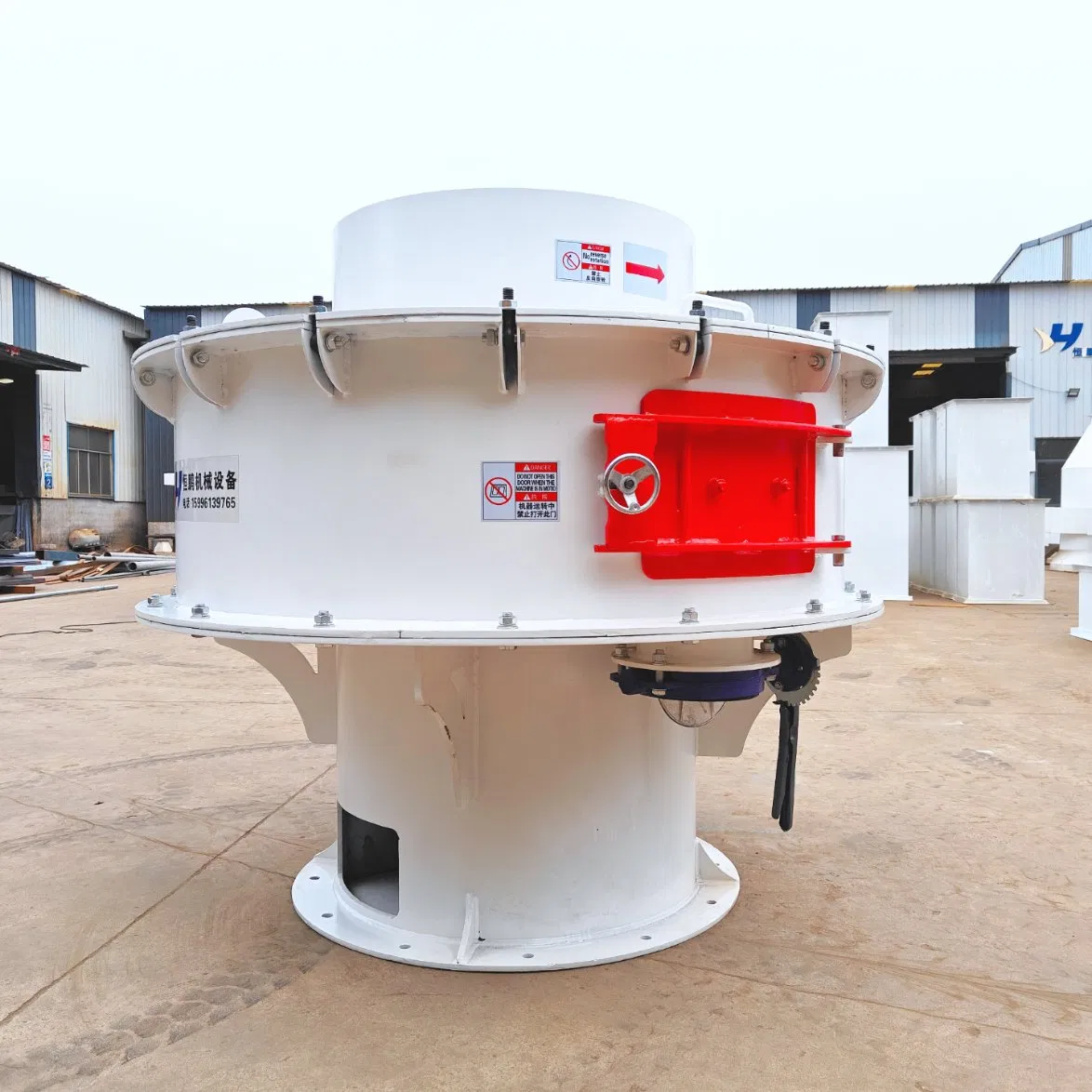

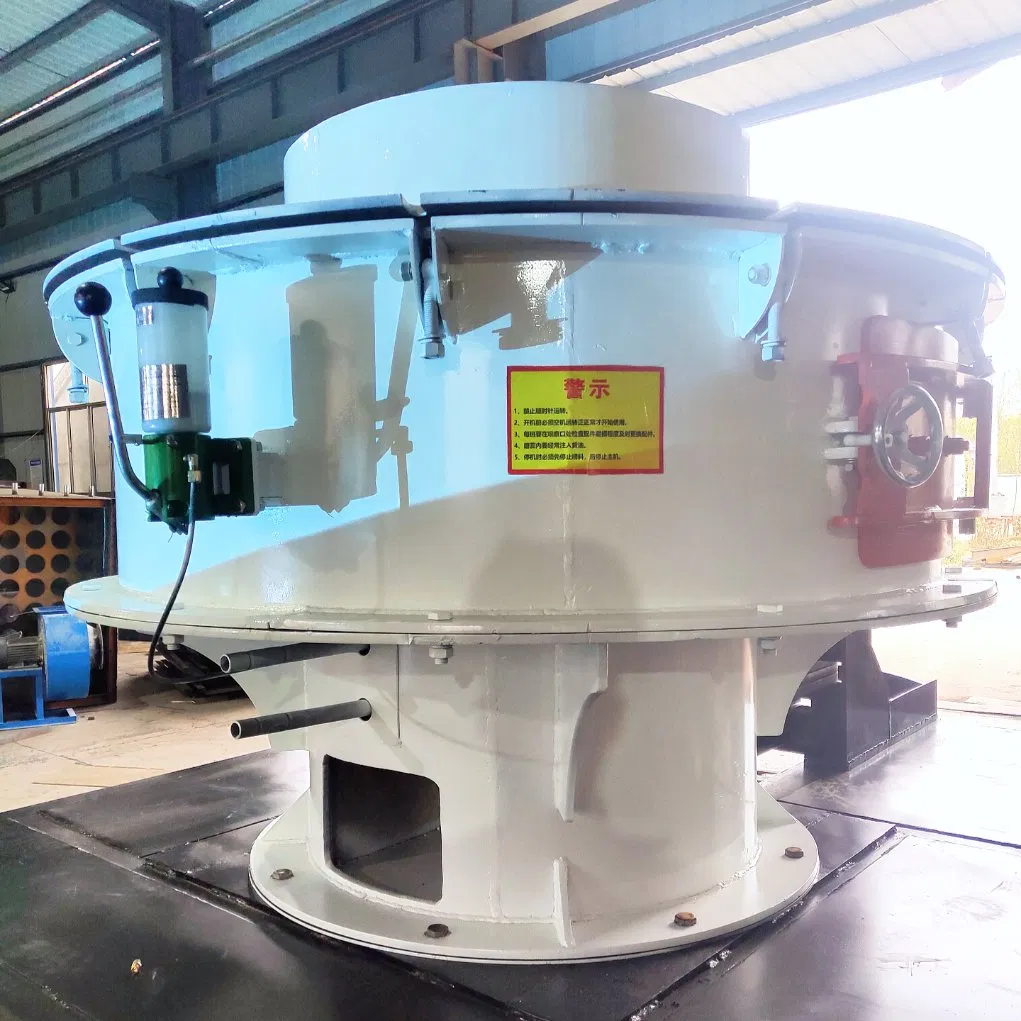

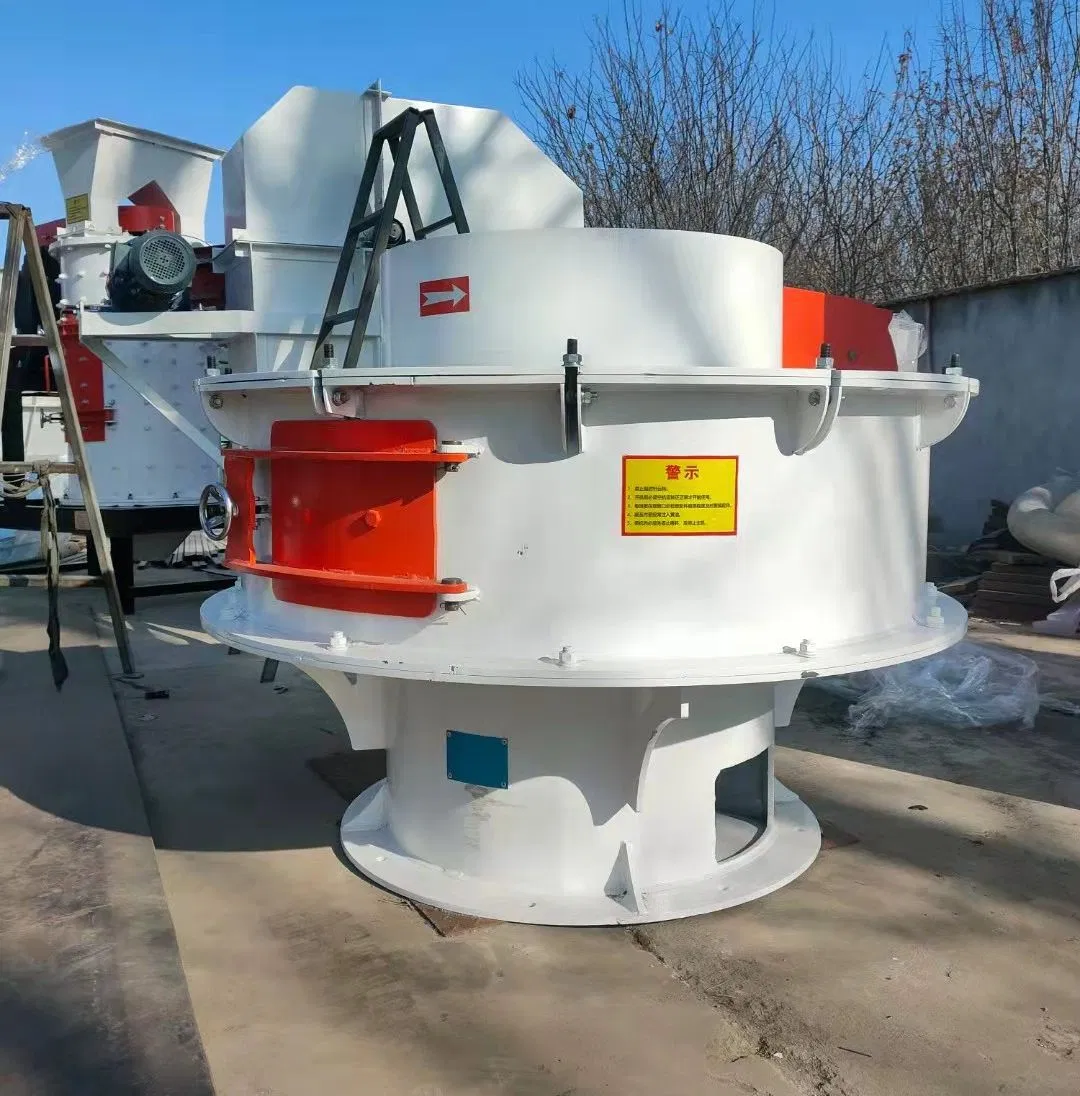

The new-type sand making machine differs from traditional equipment. Its frame is constructed from high-manganese steel—a highly wear-resistant material—ensuring exceptional durability. Internal components are alloy-reinforced, significantly outlasting traditional components and extending the equipment's service life.

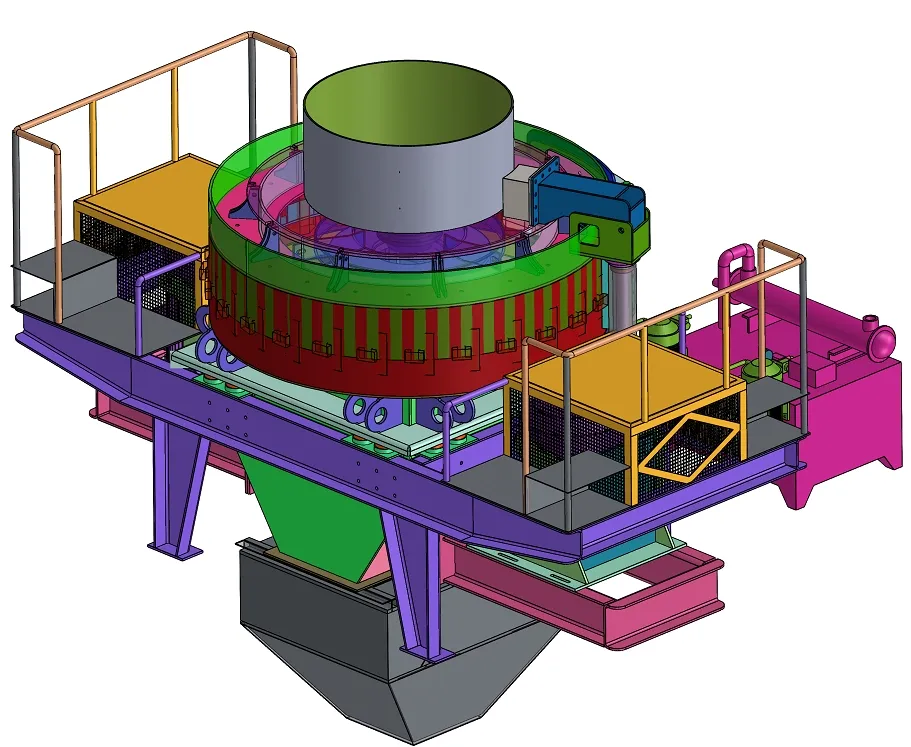

Durable Structure: Consists of a feed hopper, classifier, crushing chamber, impeller, spindle assembly, support frame, base, transmission device, motor, and lubrication system. All maintenance can be performed via the upper part of the frame, offering labor-saving convenience.
Materials impact and crush each other without direct contact with metal components. This reduces contamination, minimizes over-crushing, and ensures an excellent final product shape.
Utilizes a vortex crushing chamber. The internal airflow circulation eliminates dust pollution, making it compliant with strict environmental protection standards.
Equipped with a frequency converter control system, allowing users to set and adjust discharge size parameters for flexible output control.
Uses diamond-shaped combined impact blocks. This design results in high crushing efficiency, low unit energy consumption, and extended service intervals.
| Model/Parameter | HPZ400 | HPZ500 | HPZ550 |
|---|---|---|---|
| Processing Capacity (t) | < 2 | < 3 | < 4 |
| Max Feed Particle Size (mm) | 30 | 40 | 50 |
| Impeller Speed (r/min) | 2000-2800 | 2000-2800 | 2000-2500 |
| Motor Power (kw) | 15 | 22 | 30 |
| Overall Dimension (mm) | 1100*1100*900 | 1800*1430*1200 | 1900*1530*1200 |
| Overall Weight (kg) | 625 | 1125 | 1350 |
Strong R&D Capability: Our dedicated center is staffed by over 20 experienced technical engineers and designers. We hold over 40 independent patents covering the full range of silica/quartz sand processing technology.

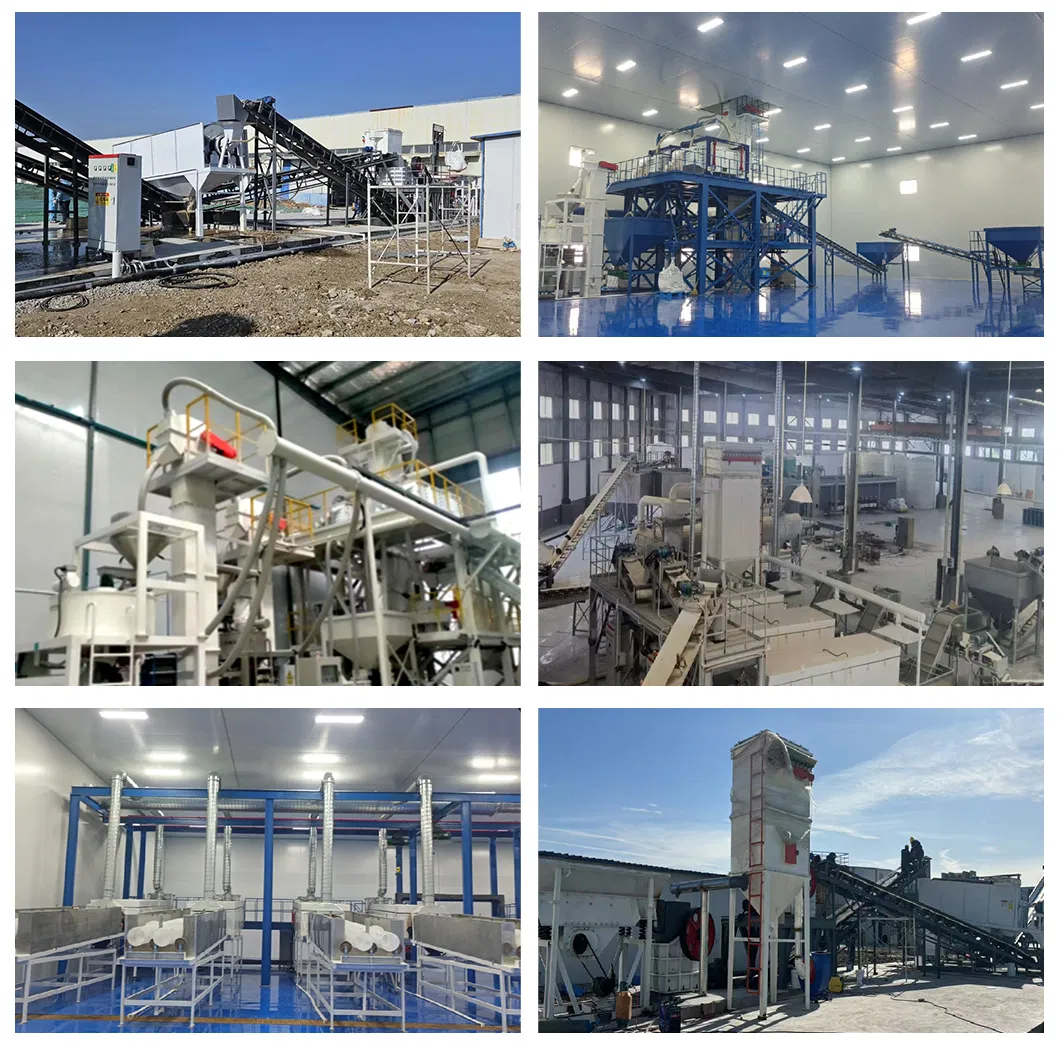

Professional Customization: With over 10 years of expertise, we provide production line solutions precisely matched to customer requirements for plant layout, raw materials, and output capacity.
Reliable Product Quality: We adhere to the "commissioning before delivery" principle. Equipment features highly wear-resistant alloy impact blocks and optimized structural designs for stable performance.
Comprehensive Service: A full-process service system integrating customization, manufacturing, installation, and after-sales support with on-site guidance and operator training.

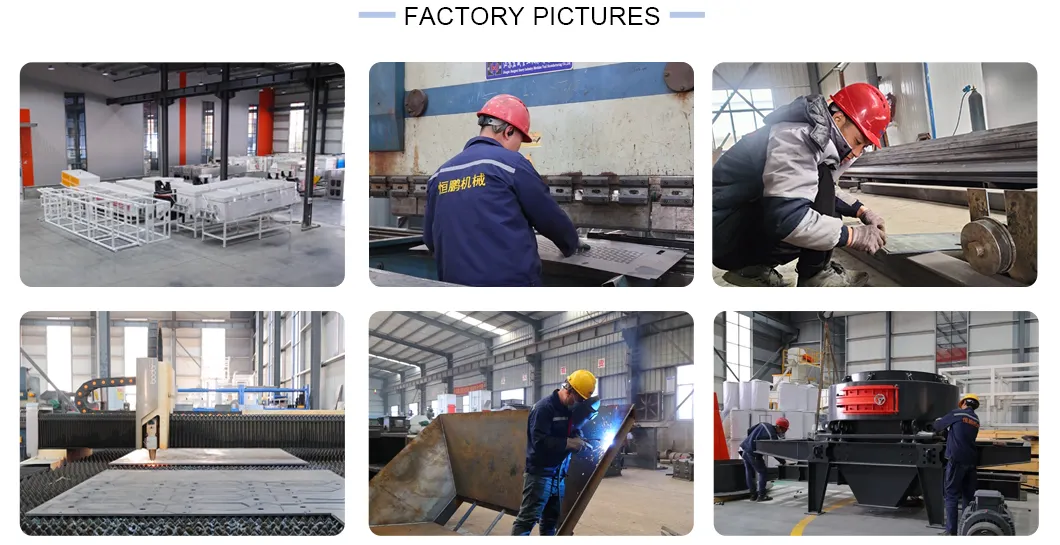

Our manufacturing facility includes specialized workshops spanning over 31,300 m². We have established a dedicated R&D center staffed by a technical team consisting of senior engineers and professional technicians. We possess nearly 30 independent intellectual property rights covering key technical fields such as crushing, magnetic separation, and purification.
