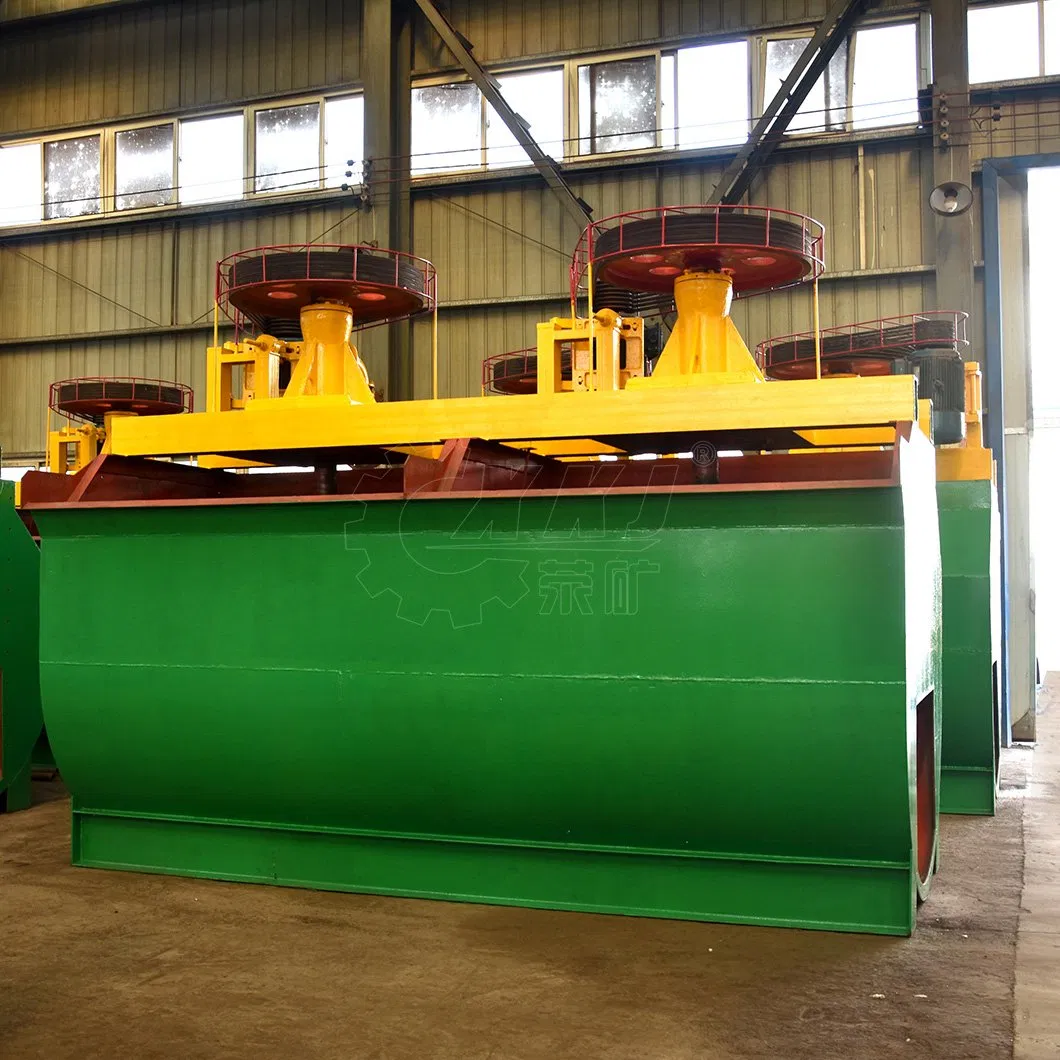

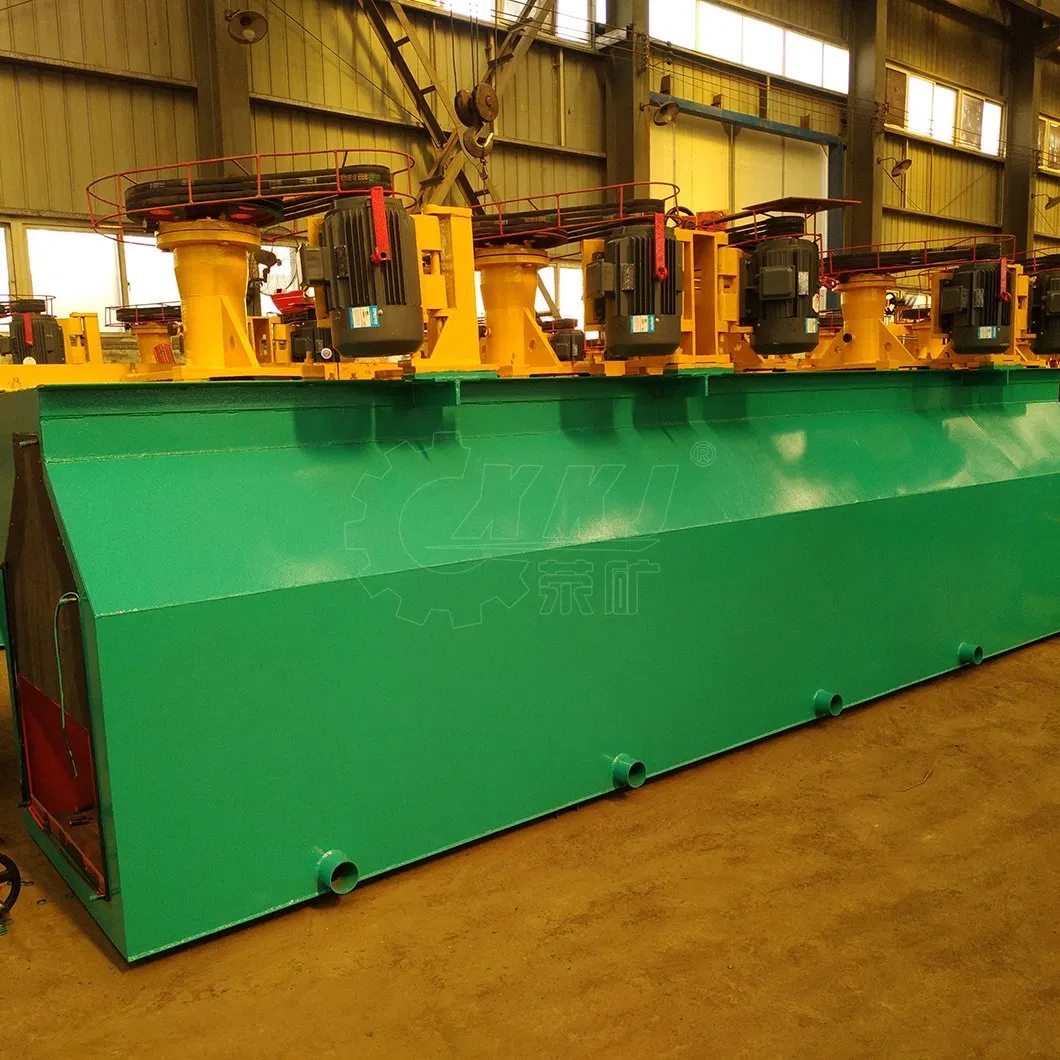

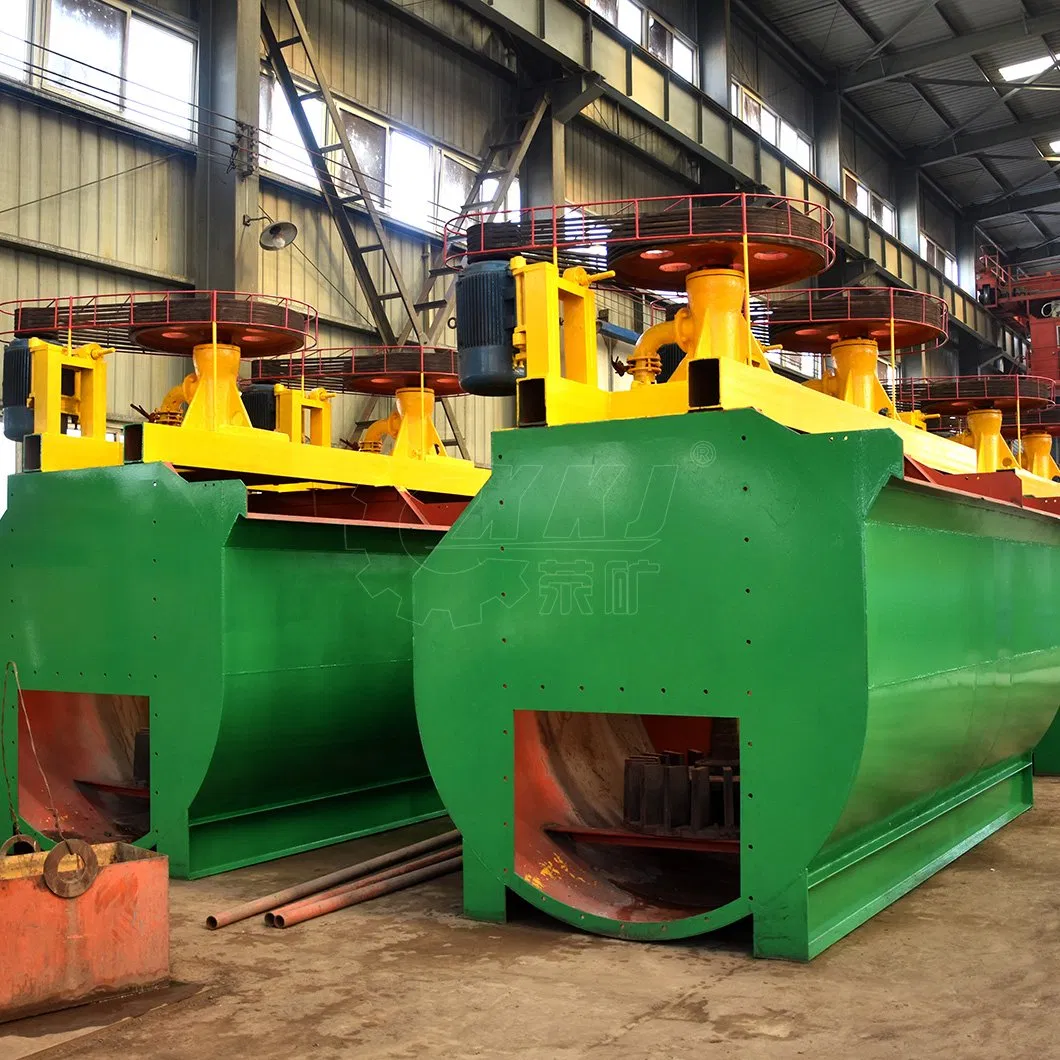

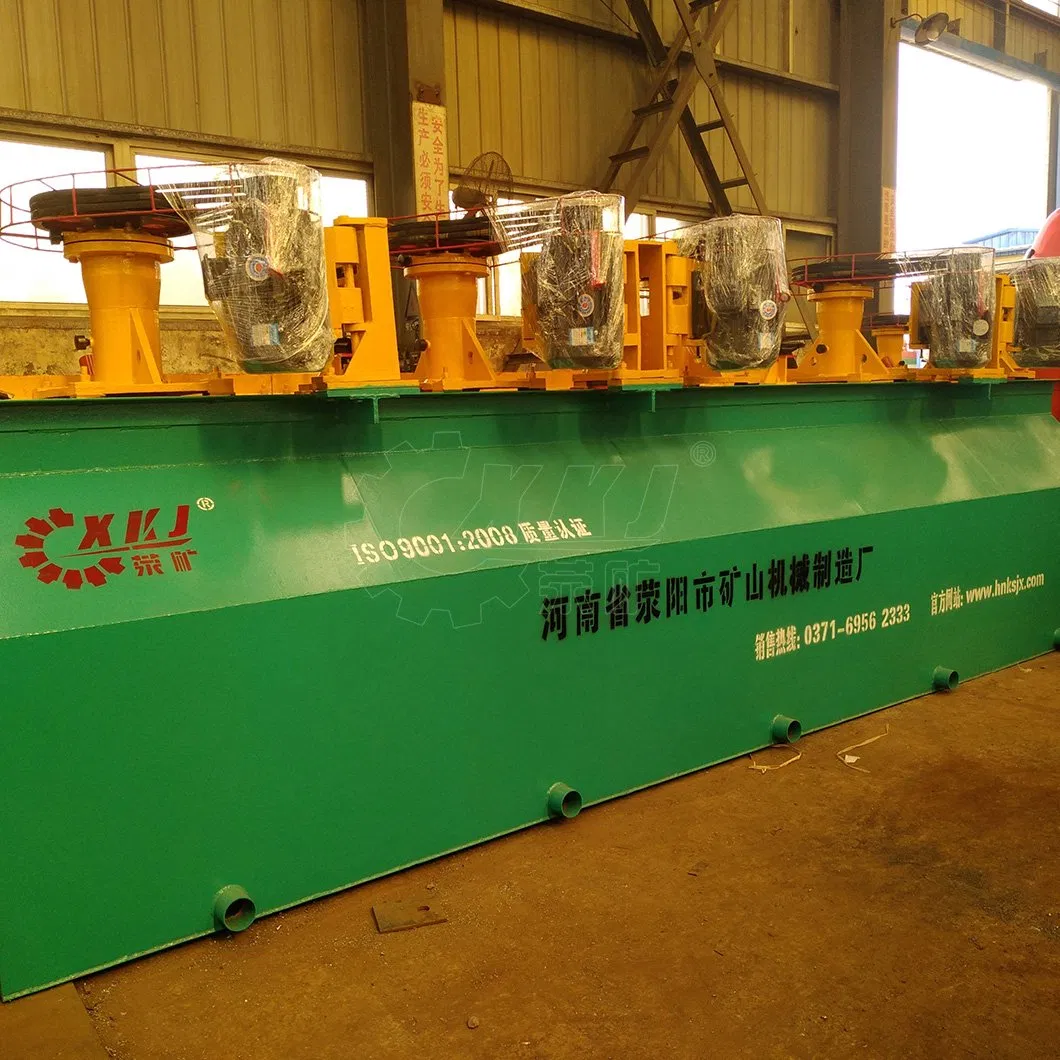

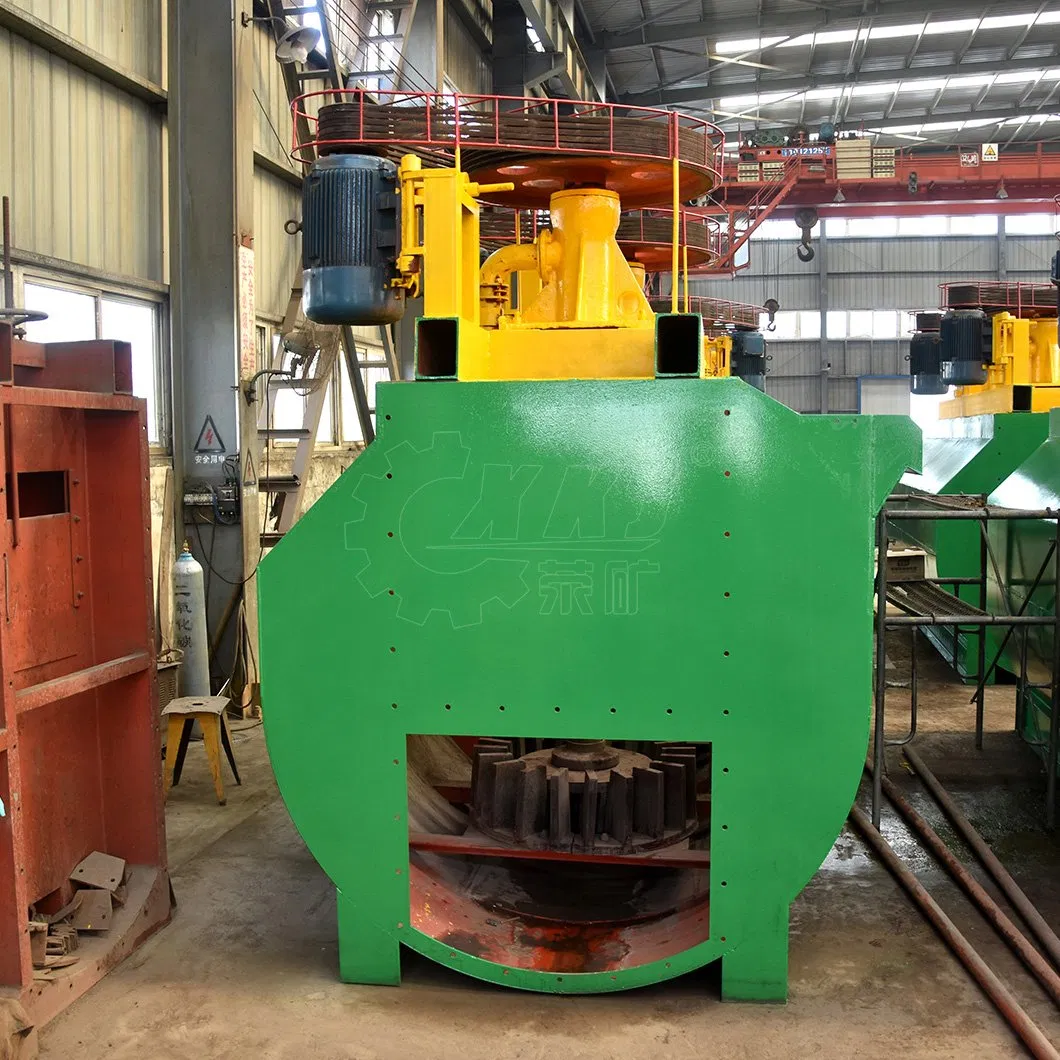

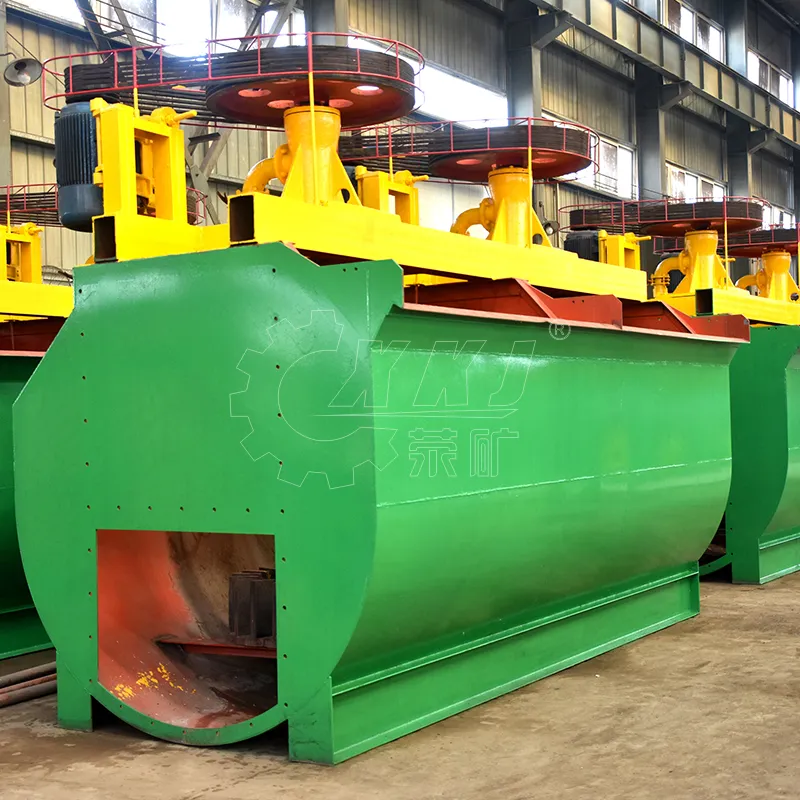

Flotation machine is an indispensable flotation device in modern mineral processing technology. This device can be used to sort various ores by flotation. It is widely used in non-ferrous metals such as copper, lead, zinc, nickel, molybdenum, gold, etc. Rough selection, selection and reverse flotation of non-metallic minerals. It has the advantages of convenient adjustment of ore surface, high flotation precision, no environmental pollution, low energy consumption, and strong adaptability.
| Model | Effective Volume (m3) | Impeller Dia (mm) | Impeller Velocity (m/s) | Air Suction (m3/m2.min) | Motor Model | Power (kw) | Capacity (m3/min) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| BF-0.25 | 0.25 | 250 | 6 | 0.9-1.05 | Y100L-6 | 1.5 | 0.12-0.28 | 370 |
| BF-1.2 | 1.2 | 450 | 7.02 | 0.9-1.1 | Y132M2-6 | 5.5 | 0.6-1.2 | 1370 |
| BF-4.0 | 4 | 650 | 8 | 0.9-1.1 | Y200L-8 | 15 | 2.4-4 | 2585 |
| BF-8.0 | 8 | 760 | 7.5 | 0.9-1.1 | Y225M-8 | 22 | 4-8 | 4130 |
| BF-16 | 16 | 850 | 8.7 | 0.9-1.1 | Y280S-8 | 37 | 8-16 | 8320 |
| BF-24 | 24 | 920 | 8.7 | 0.9-1.1 | Y280M-B-8 | 45 | 12-24 | 8970 |

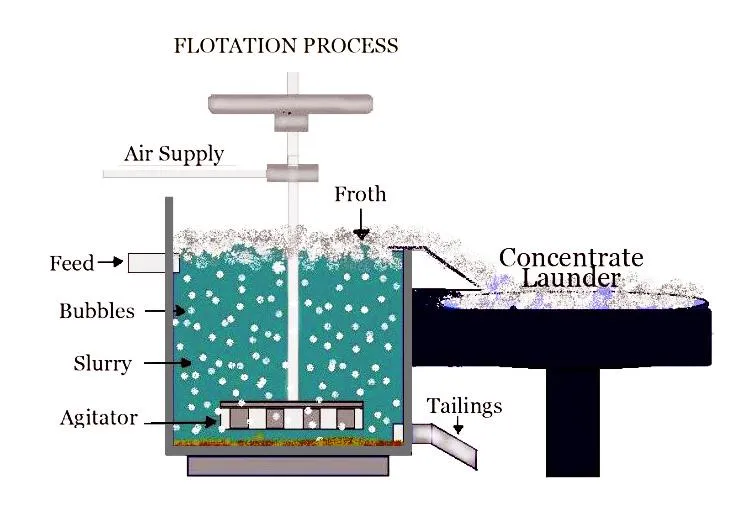

The flotation machine is driven by the motor V-belt drive to rotate the impeller to generate centrifugal force to form negative pressure. On the one hand, it inhales enough air to mix with the pulp. On the other hand, the slurry is mixed with the drug and the foam is refined to make the mineral bonded foam. Float to the pulp surface to form a mineralized foam. Adjust the height of the gate and control the liquid level so that the useful foam is scraped by the scraper.
Before-sale services: We guide customers to choose the best and applicable device; provide energy-saving and practical technological processes, and plan the site design.
Sale services: Products are inspected strictly; customers are invited to test machines on-the-spot; delivery is arranged according to contract agreements.
After-sale services: Professional engineers guide installation, debug and train operators. Quality guarantee period is one year (except wearing parts).

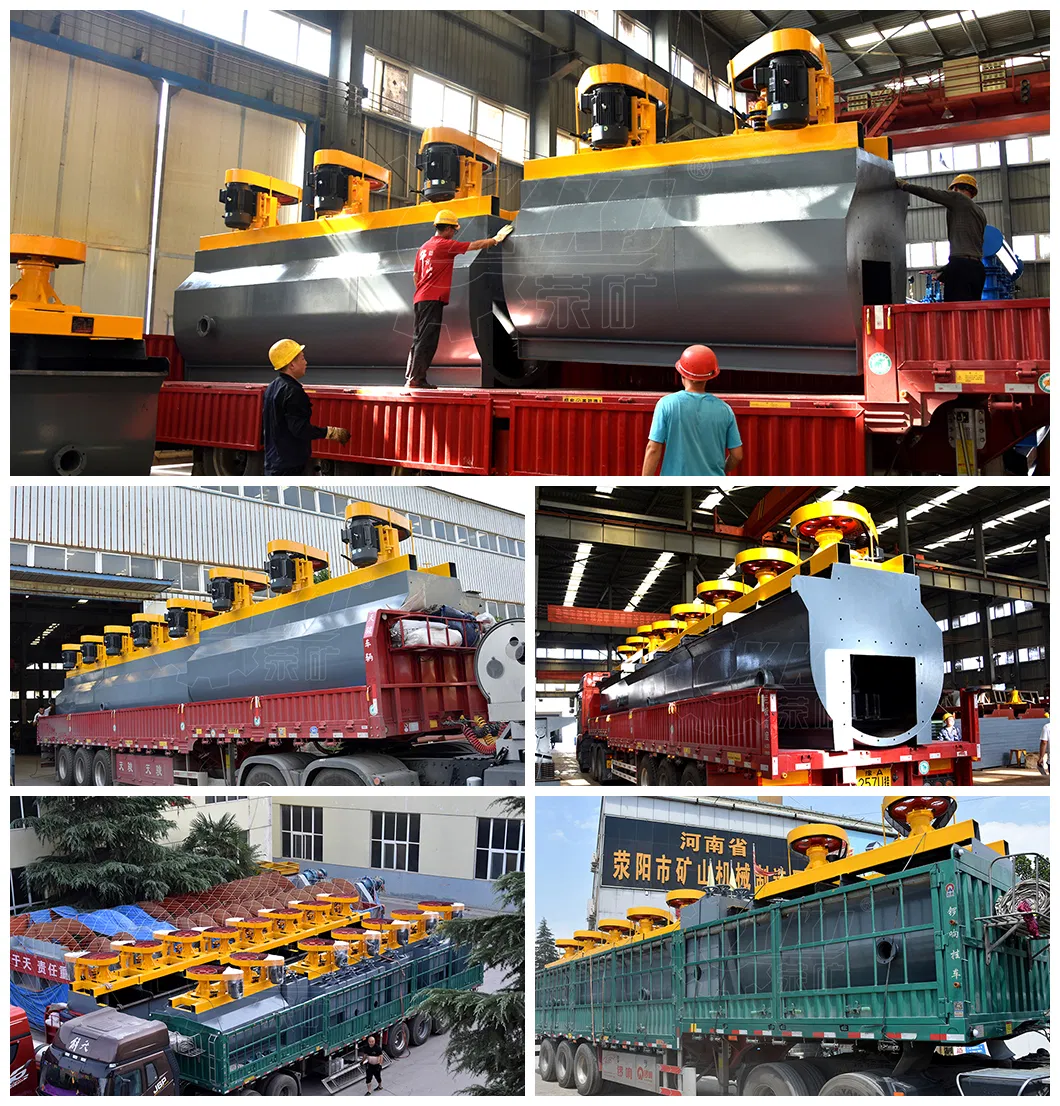

Packing DetailsNormally the machines are taken apart before delivery. Packing methods include: nude packing, bundle packing, grass rope packing, water proof packing, wooden pallets, or wooden/carton box packing.
