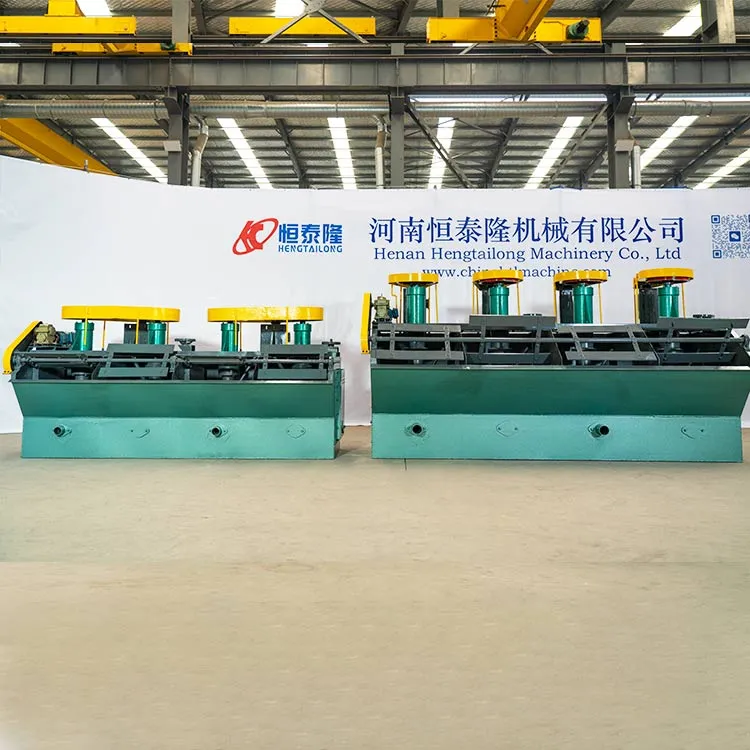

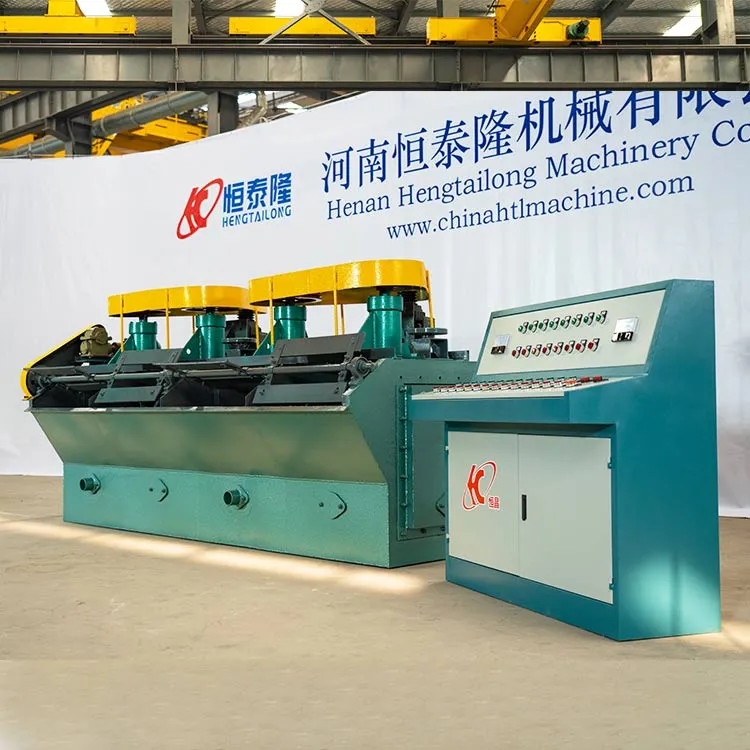

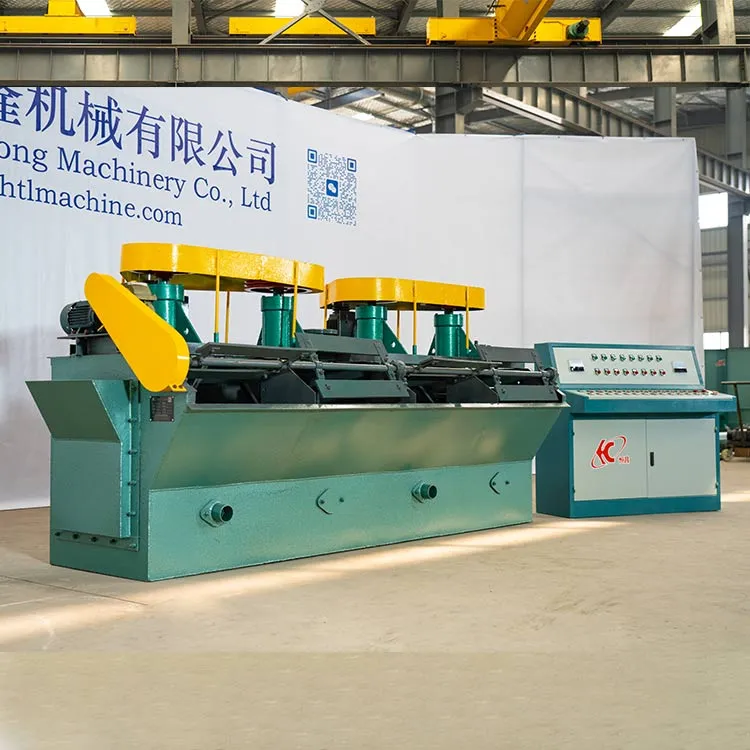

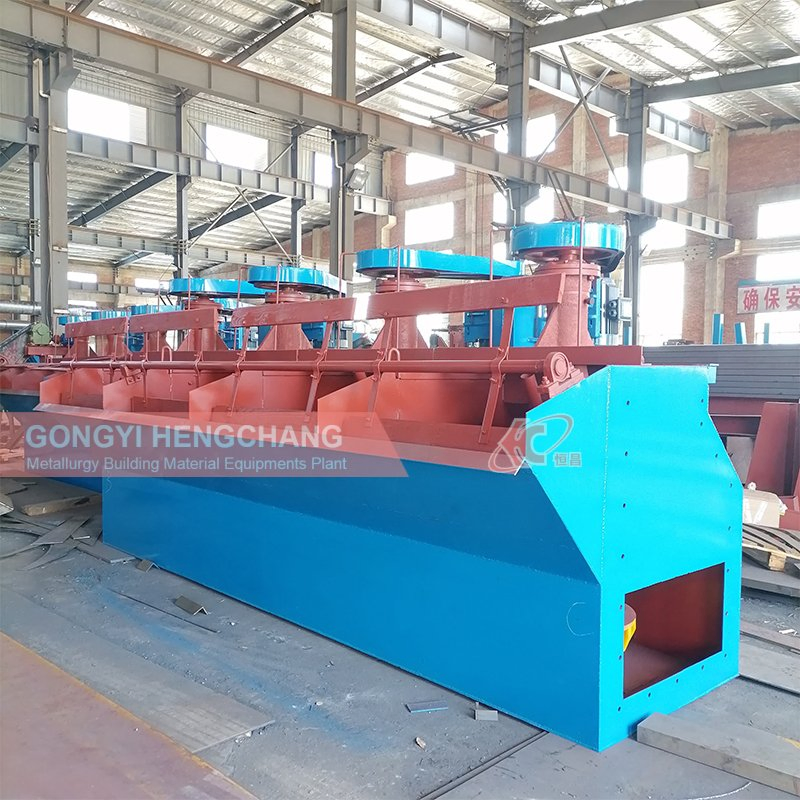

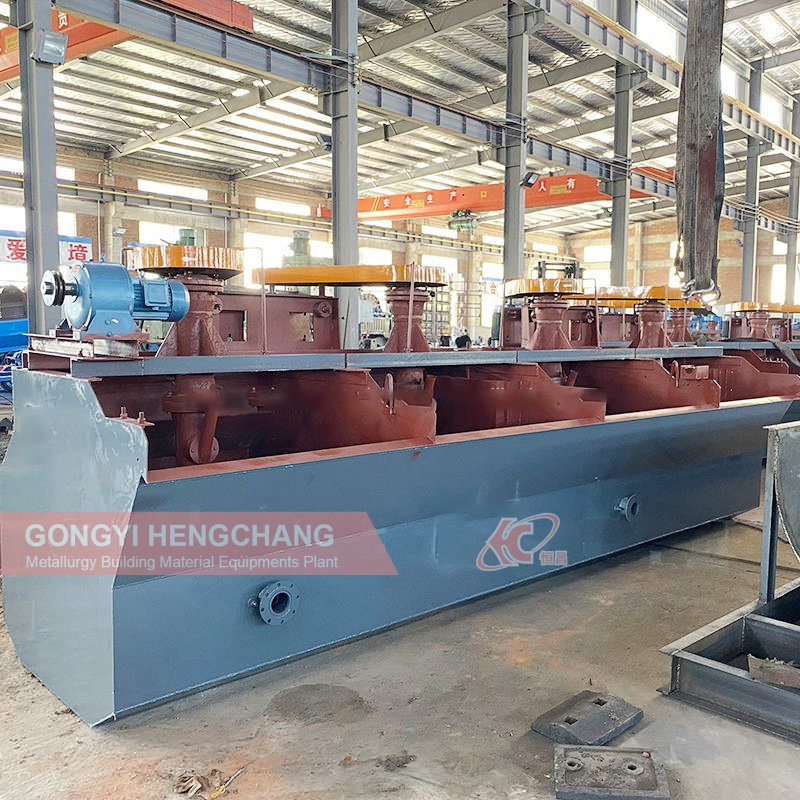

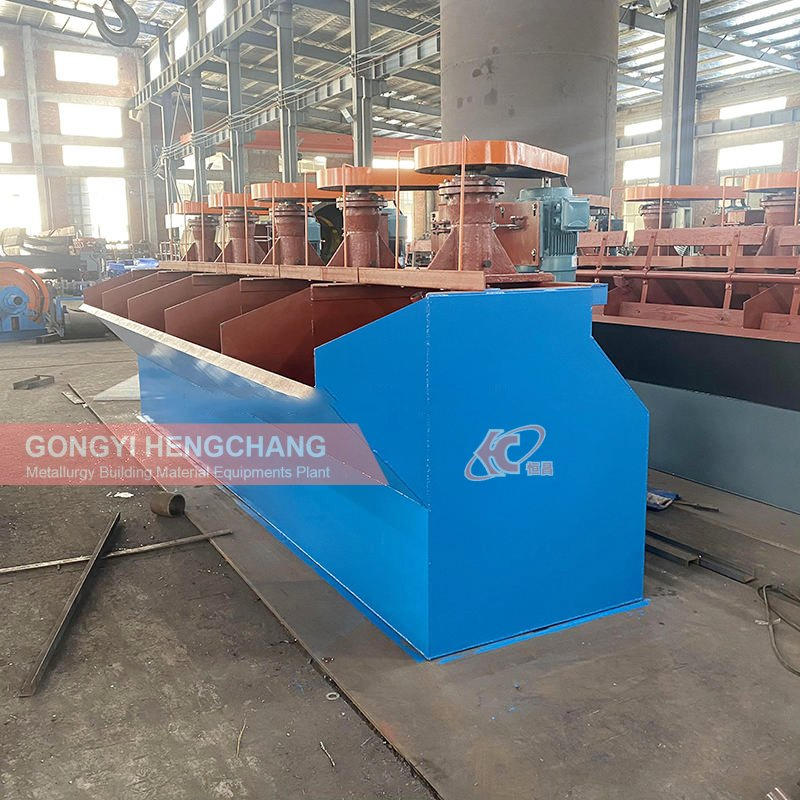

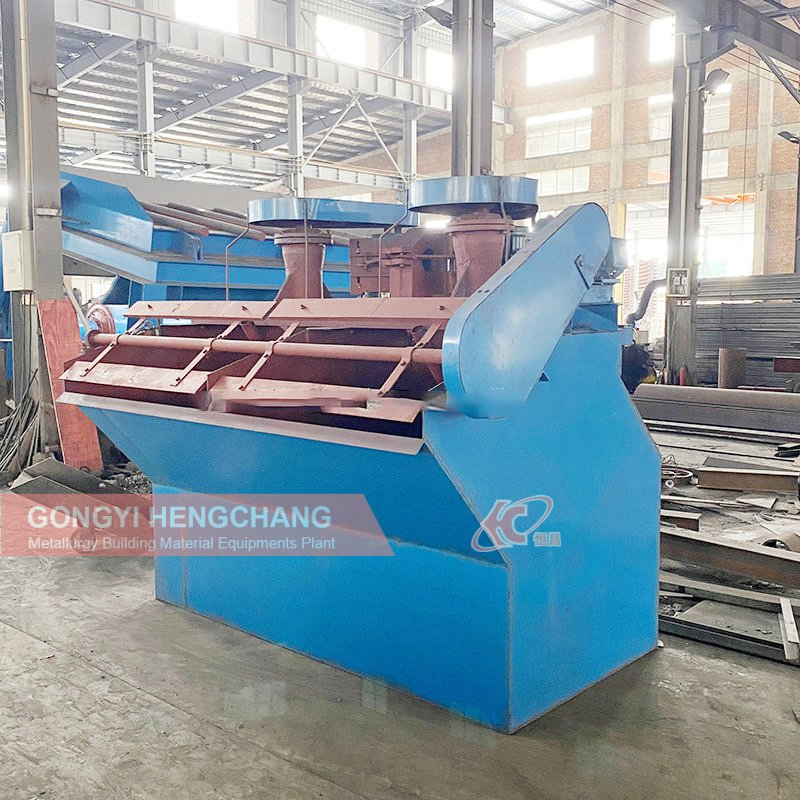

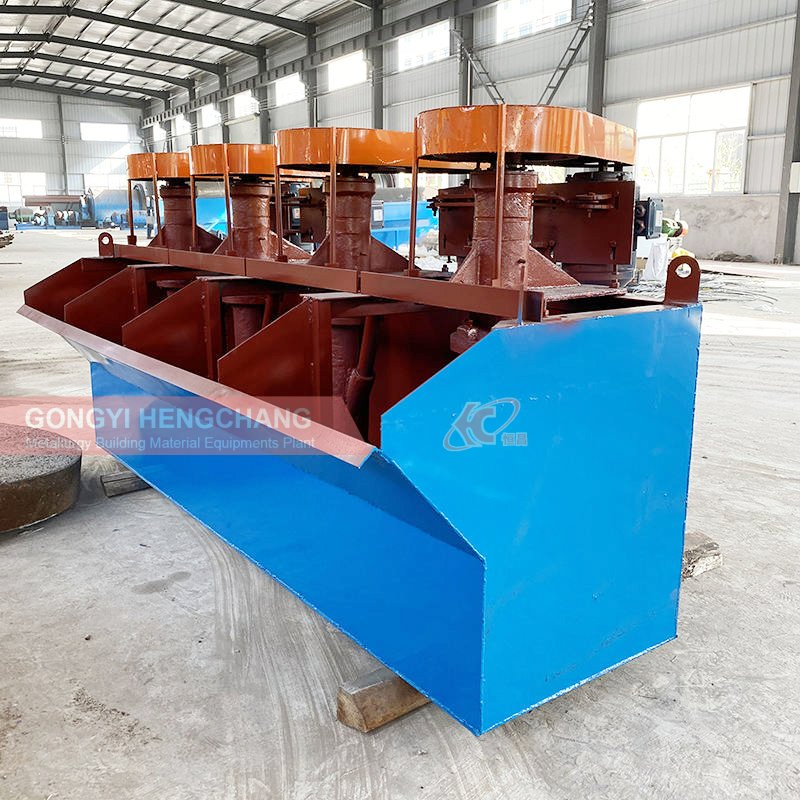

Hot Selling Widely Used Copper Lead Mining Ore Flotation Machine

⚙️

Basic Product Information

Model NO.

XJK / SF type flotation machine

Material Feature

Oil Resistant

Certification

ISO9001:2008, ISO9001:2000, CE

Energy Saving

Warranty

1 Year

Condition

New

Processing Capacity

0.2-0.4 square Meter/Min

Function

Air Suction, Ore Pulp Suction and Flotation

Recovery Rate

90-99%

Feeding Size

0.074-2mm

HS Code

8474100000

📝

Product Description

The flotation machine is mainly used for sorting non-ferrous metals such as copper, zinc, lead nickel and gold, and can also be used for rough selection and selection of ferrous and non-metal. It is subject to coarse separation, swept separation, fine separation and flotation, so the useful ore are reclaimed.

📊

Product Parameters

Model	Effective Volume (m³)	Processing Ability (m³/min)	Motor Power (kw)	Spindle Speed (r/min)	Scraper Speed (r/min)	Trough Size (mm)	Weight (kg)
SF-0.37	0.37	0.2-0.4	1.5	352	25	700x700x750	468
SF-0.7	0.7	0.9-0.9	3	400	25	900x820x950	600
SF-1.2	0.2	0.6-1.6	5.5	330	25	1100x1100x1100	1873
SF-2.8	2.8	1.5-3.5	11	268	25	1750x1600x1150	2538
SF-4	4	2.0-4.0	15	220	25	1850x2050x1200	2838
SF-8	8	4.0-8.0	30	191	25	1850x2050x1200	4129
SF-10	10	5.0-10	30	191	25	2200x2900x1700	4486
SF-20	20	5.0-20	30*2	191	25	2850x3800x2000	9828

🌍

Product Application

Widely used for: Metal ore such as gold, silver, copper, Lead (Pb), Zinc (Zn), Tin, Nickel (Ni) and so on, non metal mineral, raw body and materials of chemical industry.

⭐

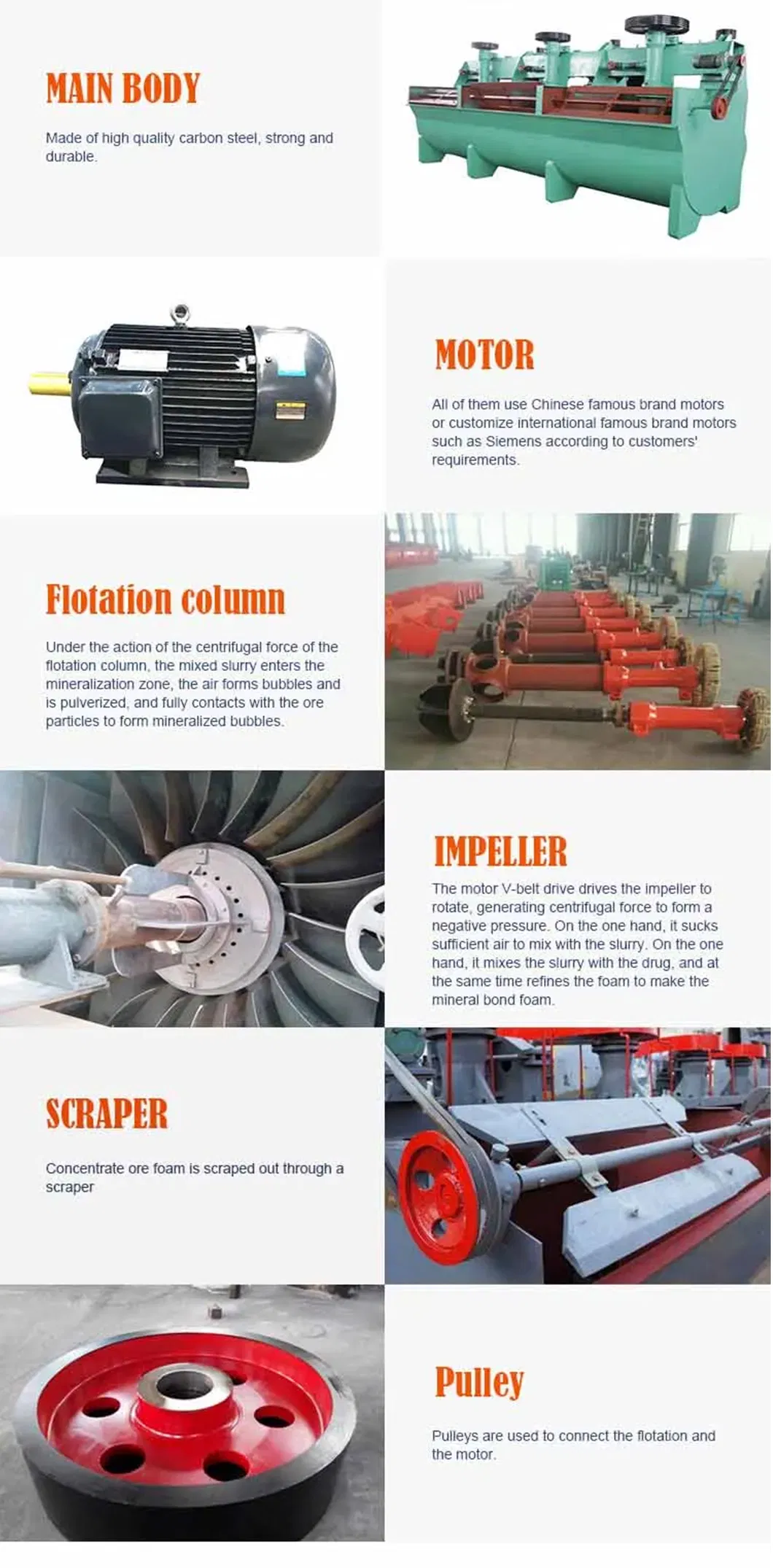

Product Superiority

✔

Large inhaling capacity and low consumption

✔

Triple functions of air suction, slurry suction and flotation; forms its own circuit without auxiliary equipment

✔

Horizontal configuration to facilitate process changes

✔

Reasonable slurry circulation minimizes coarse ore precipitation

✔

Equipped with automatic control device for slurry surface, easy to adjust

🔄

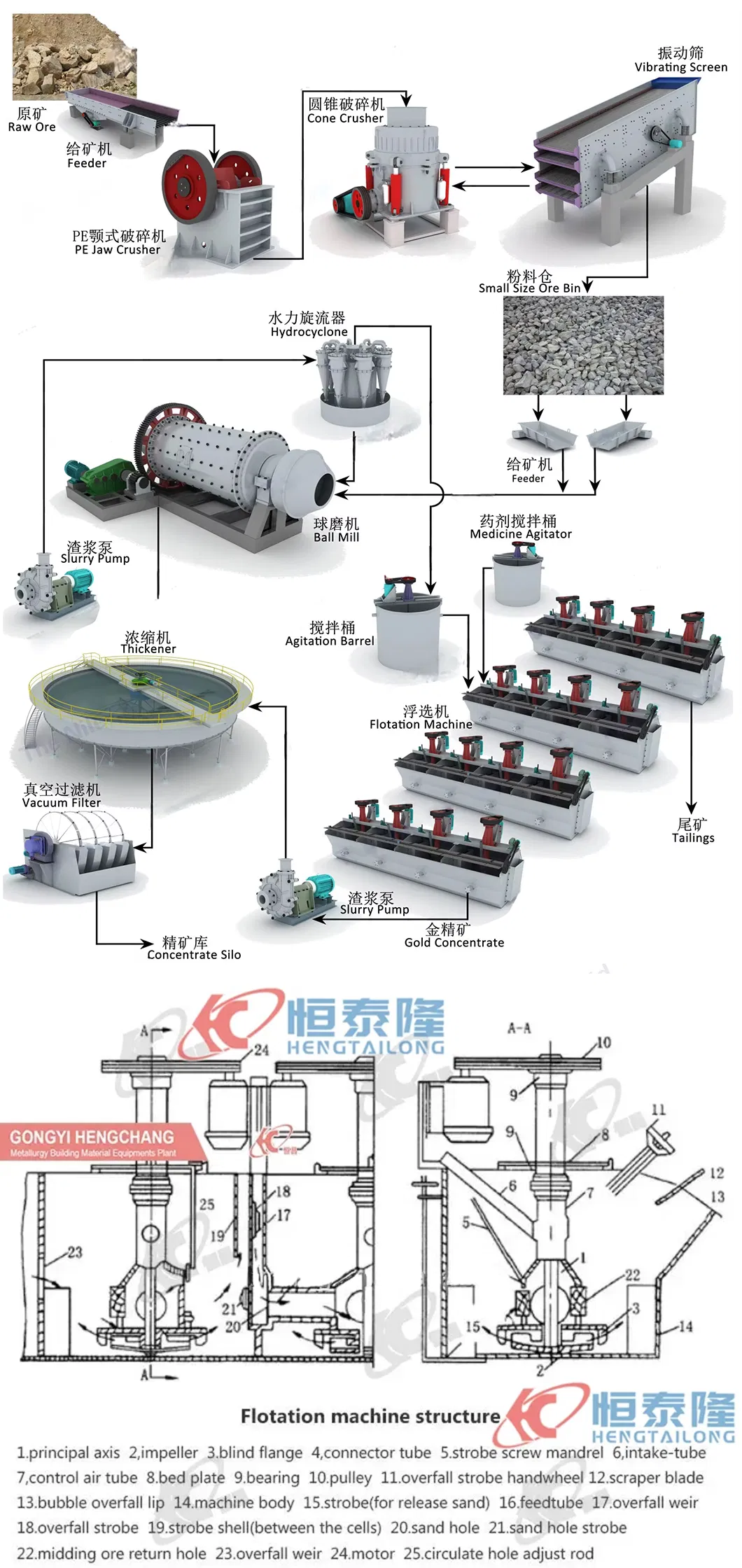

Operating Principle

When the flotation machine works, the motor drives the impeller to revolve, producing centrifugal effect and negative pressure. Ample air is absorbed and mixed with mineral slurry and additives. Foams are formed, mineral bounds with foams and floats to the surface. The liquid surface is adjusted with flashboards to allow squeegees to scrape off useful foams.

📦

Packing and Delivery

Package Size

436.00cm * 545.00cm * 609.00cm

Gross Weight

1975.000kg

❓

Frequently Asked Questions

What are your advantages compared with competitors?

With rich industry experience and strict Product Quality Control systems, we provide stable and reliable products at reasonable prices, excellent customer service with fast response, and on-time delivery.

Are you a manufacturer?

Yes, we are a professional manufacturer with more than 20 years of experience in mining and crushing machinery.

What are your Price and Payment Terms?

Price terms can be based on FOB, CFR, or CIF. Payment is typically made via T/T, L/C, or D/P, depending on the region.

Do you provide English Manuals for the machinery?

Yes. Instruction manuals, test reports, and all related data sheets are provided in English for each machine.

Can the machine be customized?

Yes, we can customize the machinery according to specific customer requirements and material processing needs.

What should we do if a breakdown occurs?

Please inform us immediately. During the warranty period, we will respond promptly and handle the issue via telephone/fax or arrange for personnel to visit the site if necessary.
