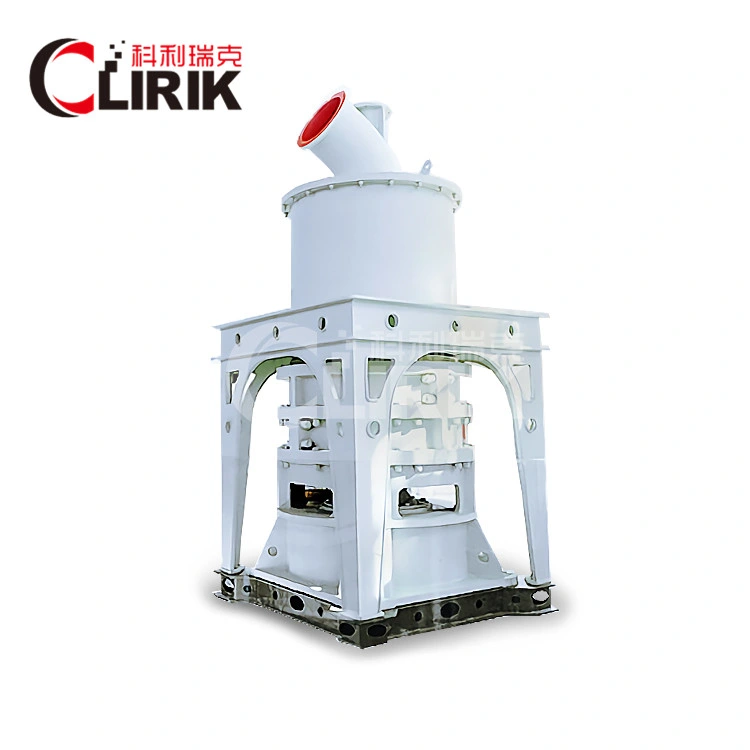

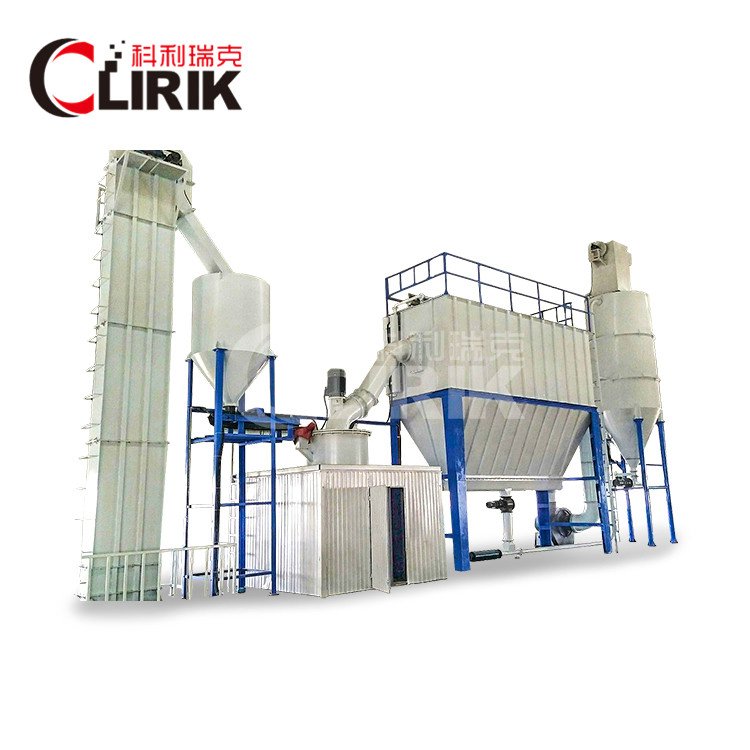

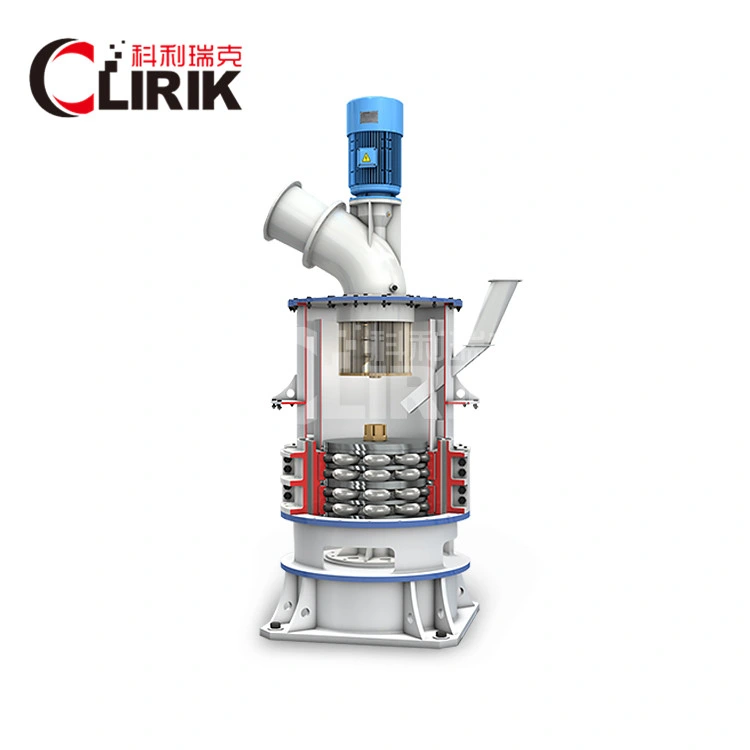

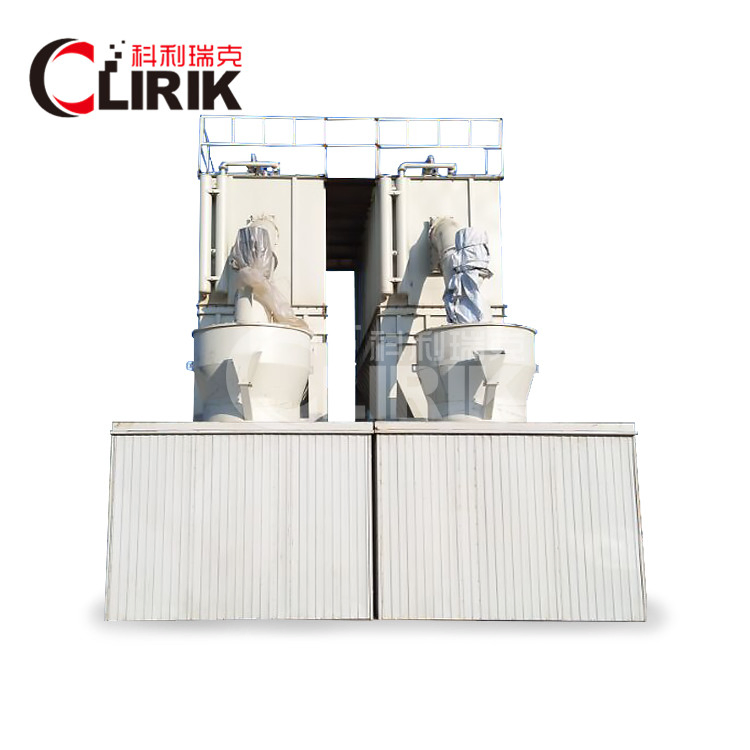

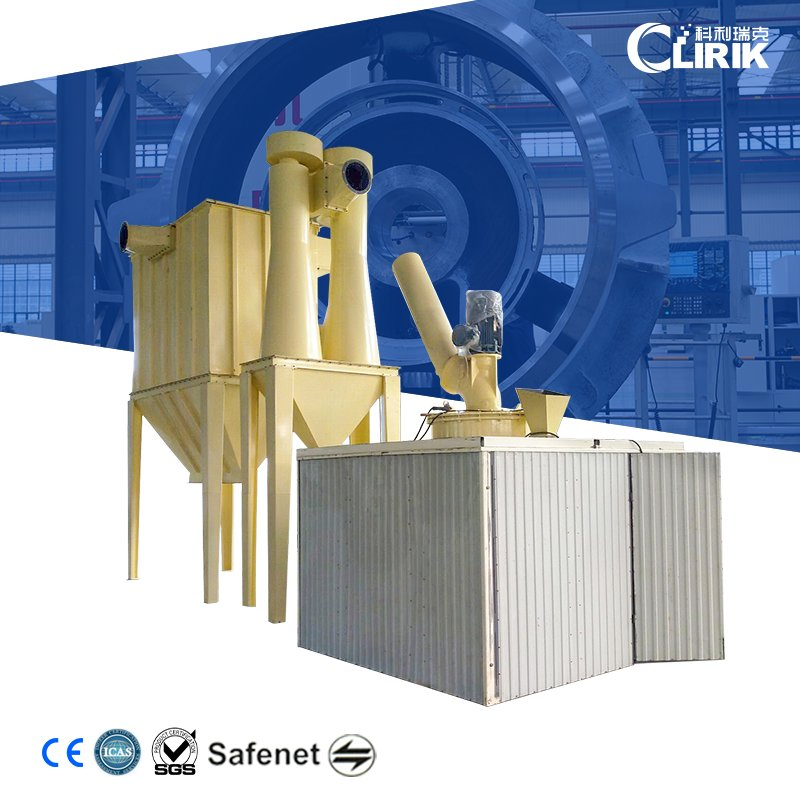

Product Name: Fluorite Powder Grinding Mill Machine Plant
Powder Fineness Ability: 300-3000 mesh
Capacity: 0.5-45 t/h (Adjustable based on fineness demand)
Use Range: More than 150 kinds of stone materials including calcite, calcium carbonate, dolomite, gypsum, carbon black, kaolin, marble, etc.
Applications: Mining, chemical, transport, and other industrial areas.
| Model | HGM80 | HGM90 | HGM100 | HGM125 | HGM1680 |
|---|---|---|---|---|---|
| Ring Diameter(mm) | 800 | 900 | 1000 | 125 | 1680 |
| Ring Number (PCS) | 3 | 3-4 | 4 | 4 | 4 |
| Roller Number(PCS) | 18-21 | 24-29 | 28-36 | 30-44 | 30-40 |
| Main Shaft Speed (r.p.m) | 230-240 | 200-220 | 180-200 | 135-155 | 120-130 |
| Input Size (mm) | ≤10 | ≤10 | ≤15 | ≤15 | ≤20 |
| Finished Size (um/mesh) | 74-5 (200-2500) | 74-5 (200-2500) | 74-5 (200-2500) | 100-6 (150-2000) | 100-9 (150-1500) |
| Capacity (t/h) | 0.4-4.5 | 0.6-6.5 | 1-9 | 2-16 | 3.8-30 |
| Outlet Size L*W*H (m) | 13.9*4*6.2 | 14.7*4.8*7.2 | 18*4.6*8.6 | 14*9*10.25 | 26.3*7.5*11.9 |

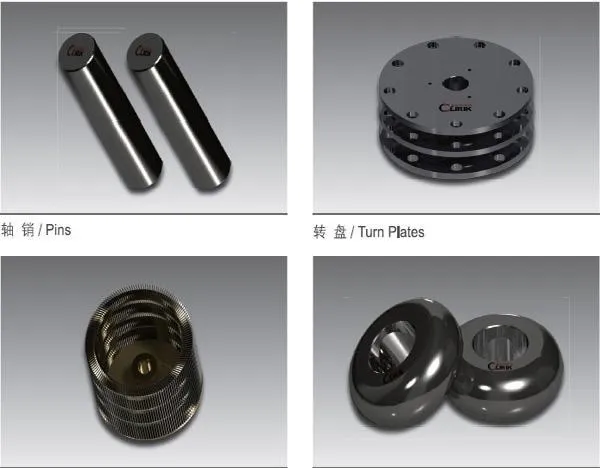

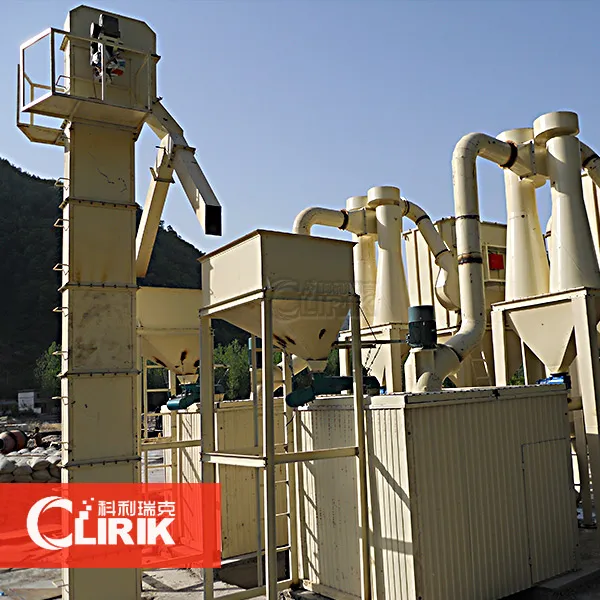

HGM series grinding parts, including rollers and rings, are manufactured from high-hardness minerals to ensure a significantly longer service life compared to standard brands. We also provide full production line support, including powder packing machines, stone crushers, powder coating machines, and conveyor systems.

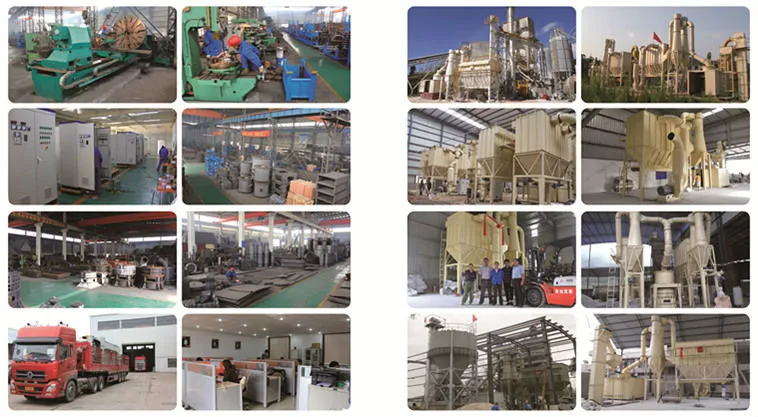

As a professional mining equipment enterprise, we utilize a modern production line equipped with intelligent, standardized testing and controlling laboratories. Our focus on integrity and excellent service has earned numerous certifications and high praise from global quarry and mining owners.
