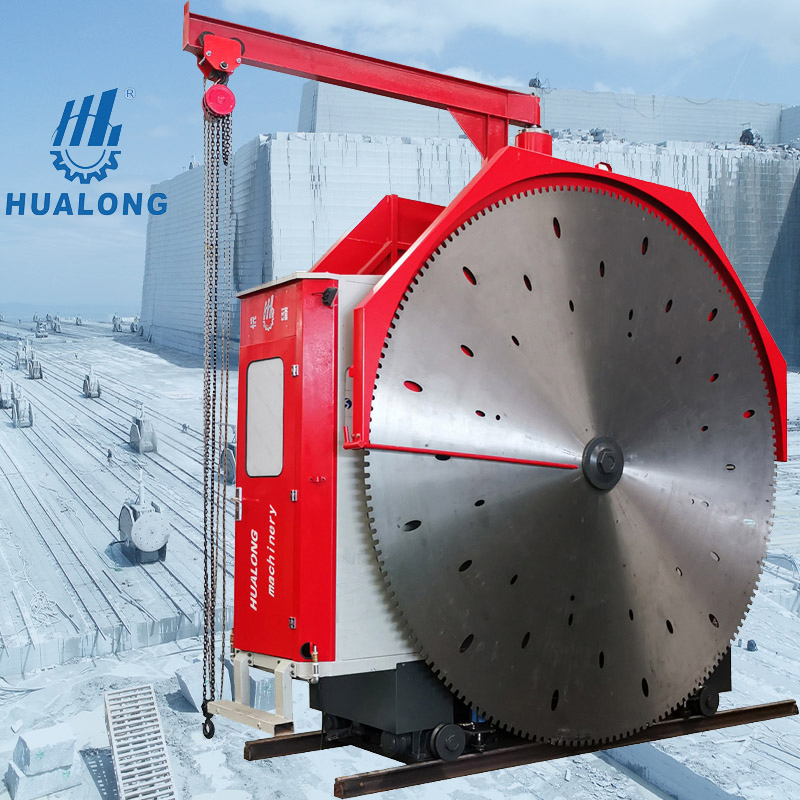

CE Certified Hualong Stone Cutting Machinery Automatic 380V/220V High Efficiency/Speed Double Blade Granite Marble Quarry Stone Block Mining Machine
CE Certified Hualong Stone Cutting Machinery Automatic 380V/220V High Efficiency/Speed Double Blade Granite Marble Quarry Stone Block Mining Machine
CE Certified Hualong Stone Cutting Machinery Automatic 380V/220V High Efficiency/Speed Double Blade Granite Marble Quarry Stone Block Mining Machine
CE Certified Hualong Stone Cutting Machinery Automatic 380V/220V High Efficiency/Speed Double Blade Granite Marble Quarry Stone Block Mining Machine
CE Certified Hualong Stone Cutting Machinery Automatic 380V/220V High Efficiency/Speed Double Blade Granite Marble Quarry Stone Block Mining Machine
1 / 5
CE Certified Hualong Stone Cutting Machinery Automatic 380V/220V High Efficiency/Speed Double Blade Granite Marble Quarry Stone Block Mining Machine
CE Certified Hualong Stone Cutting Machinery Automatic 380V/220V High Efficiency/Speed Double Blade Granite Marble Quarry Stone Block Mining Machine
CE Certified Hualong Stone Cutting Machinery Automatic 380V/220V High Efficiency/Speed Double Blade Granite Marble Quarry Stone Block Mining Machine
CE Certified Hualong Stone Cutting Machinery Automatic 380V/220V High Efficiency/Speed Double Blade Granite Marble Quarry Stone Block Mining Machine
CE Certified Hualong Stone Cutting Machinery Automatic 380V/220V High Efficiency/Speed Double Blade Granite Marble Quarry Stone Block Mining Machine

CE Certified Hualong Stone Cutting Machinery Automatic 380V/220V High Efficiency/Speed Double Blade Granite Marble Quarry Stone Block Mining Machine

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Technical Specifications

Model NO.
2QYKZ series
Main Motor Power
66X2 Kw
Railway Switch Motor
0.75X2 Kw
Weight
7500-10000 Kgs
Dimension(L*W*H)
380X220X290cm
Voltage
380V-AC
Cutting Width
1360-3200mm
Max Cutting Depth
1550mm
Blade Diameter
3600mm
Production Capacity
150 Sets Per Month
Stone Block Mining Machine

2QYKZ series Quarry Stone Cutting Machine, new developed with double main permanent magnet motors regulated by frequency converters, dual big blades and 4 shaft transmission, is powerful and high efficient for mining granite at quarry, also good for mining marble, quartz...

Main Features

  • Equipped with powerful permanent magnet motors with high rated speed of 11000 rpm and high reliability.
  • Frequency converter regulated main motors speed for adjustable cutting according to stone hardness.
  • Productivity improved by 10% or higher.
  • 10-15% energy saving compared to previous series.
  • Safer and more stable operation.

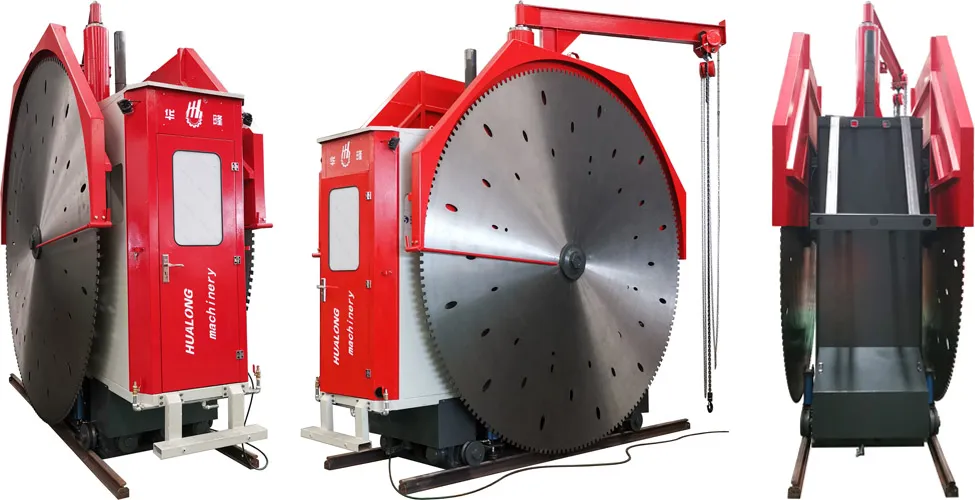

Efficiency Features

Technical Data

Model No. 2QYKZ-3600A 2QYKZ-3600B 2QYKZ-3600C 2QYKZ-3600D
Blade Diameter mm 3600
Max Cutting Depth mm 1500
Width of Cutting mm 1360-1900 1500-2000 2200-2700 2700-3200
Main Motor Power kw 66 x 2
Gross Power kw 151
Gross Weight kg 7000-9000

Details & Components

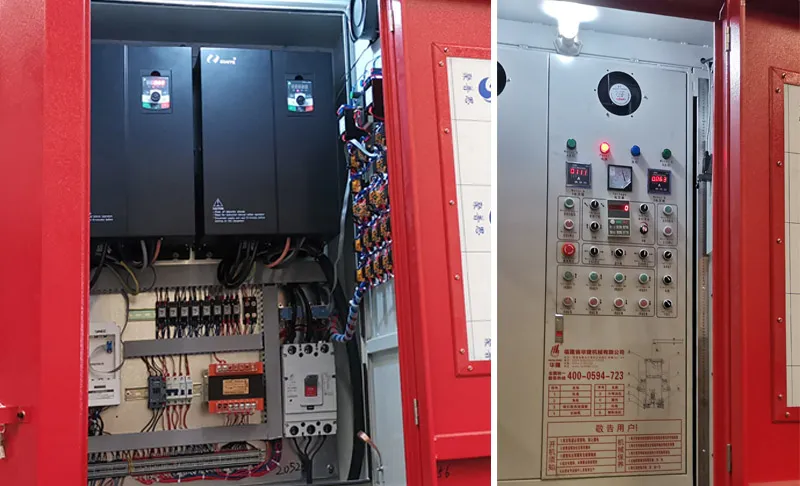

Operation Panel

Power Connection & Operation Panel
Frequency Converter regulates motor speed change according to hardness of materials.

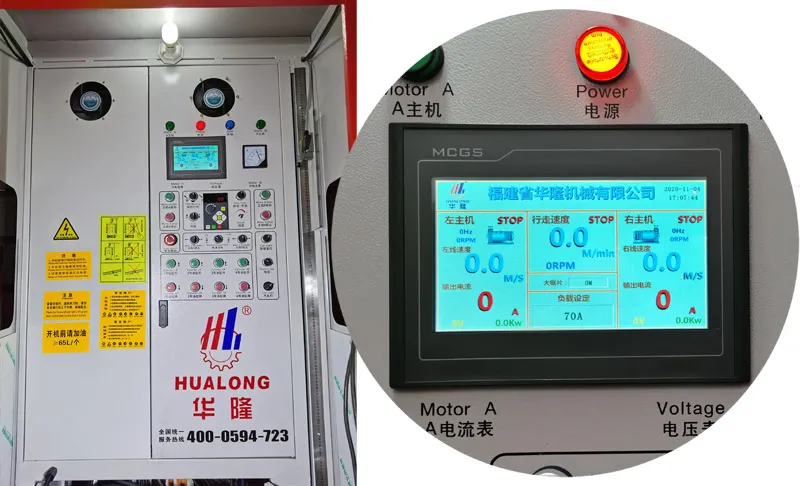

Touch Screen

Touch Screen (Optional)
Upgraded function to adjust cutting speed automatically and steadily, reducing mechanical load.

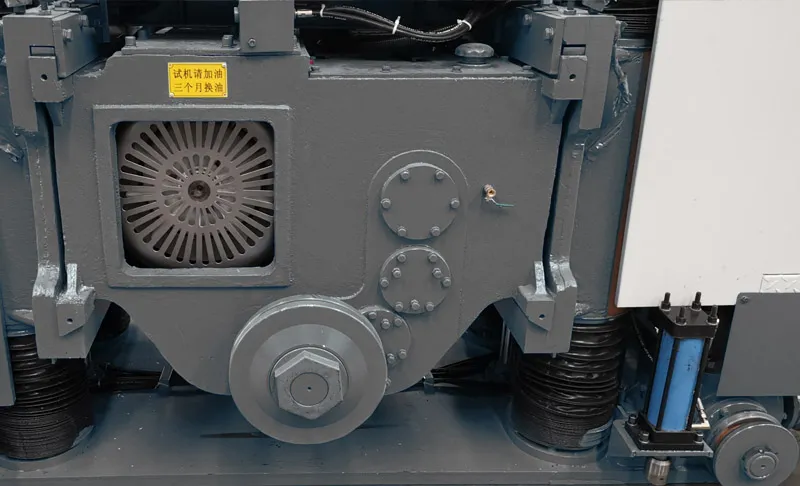

Transmission System

Power Transmission System
Patent 4 gear shafts structure for better power utilization and work stability without v-belts.

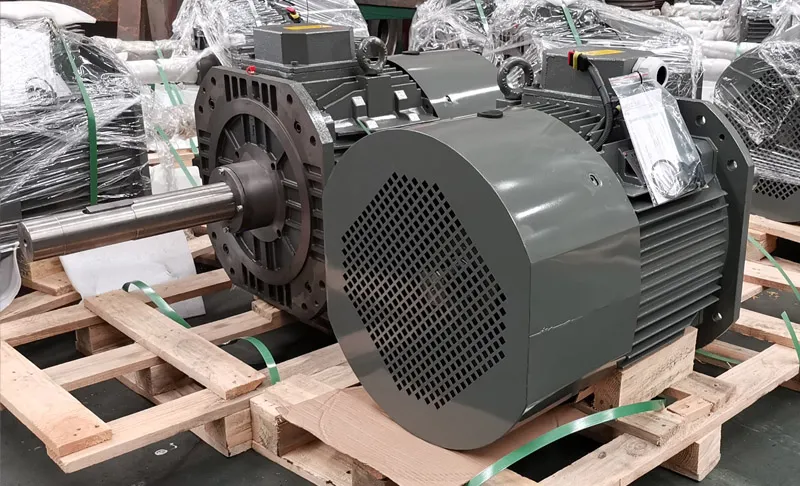

Main Motors

Permanent Magnet Motors
Efficiency: 96%. High rated speed at 11000 rpm with wide range of speed control.

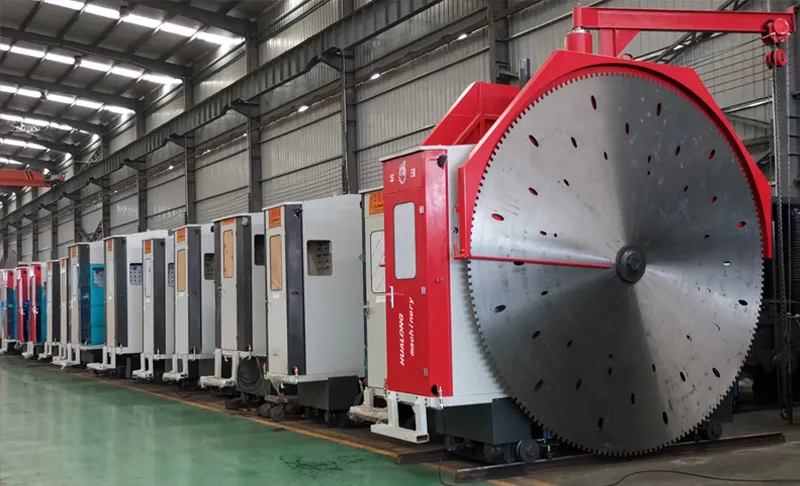

Blade Design

Cut Hole Blade Design
Reduces power loss by 40% and enhances cooling effect while releasing stress.

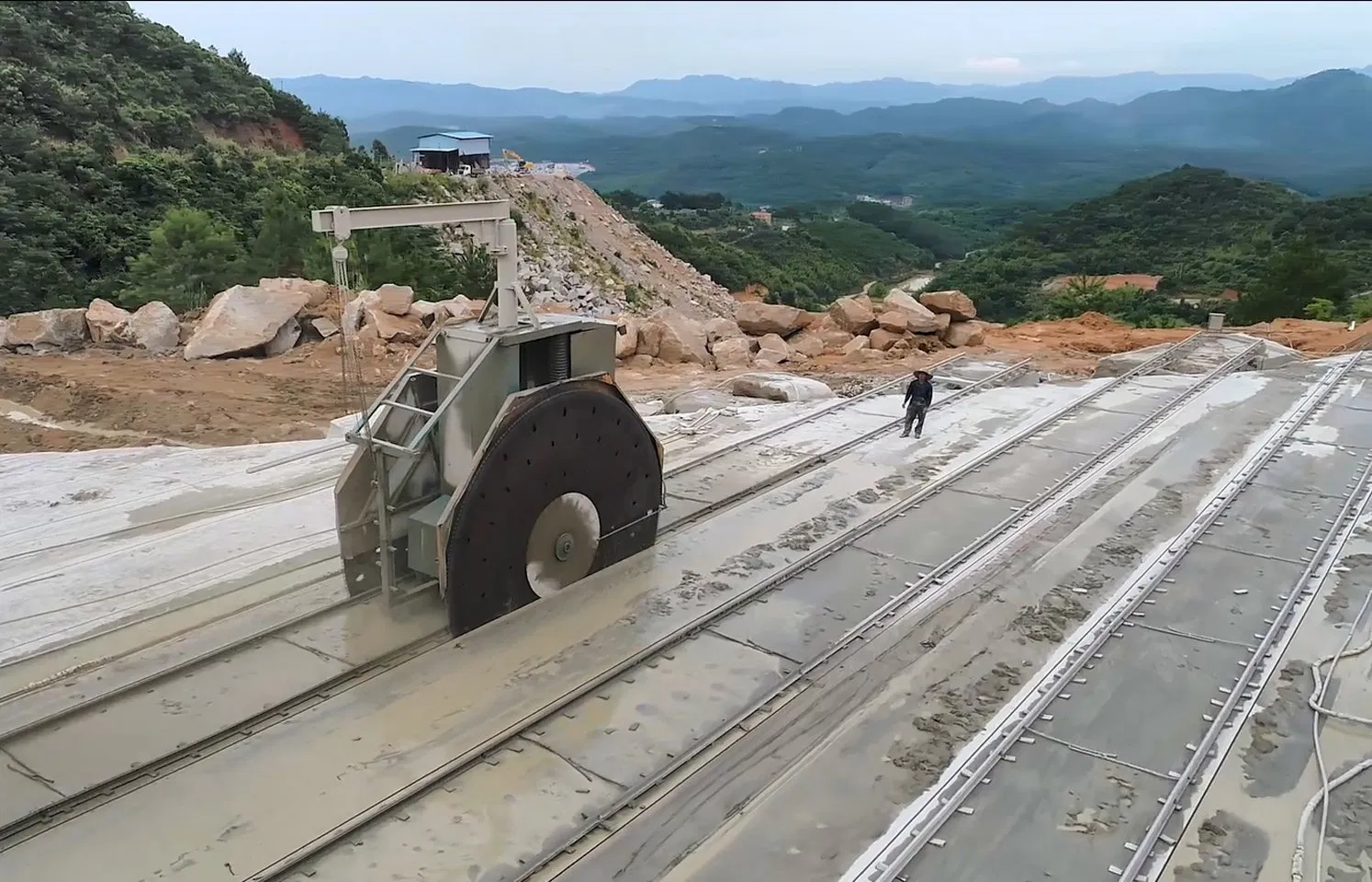

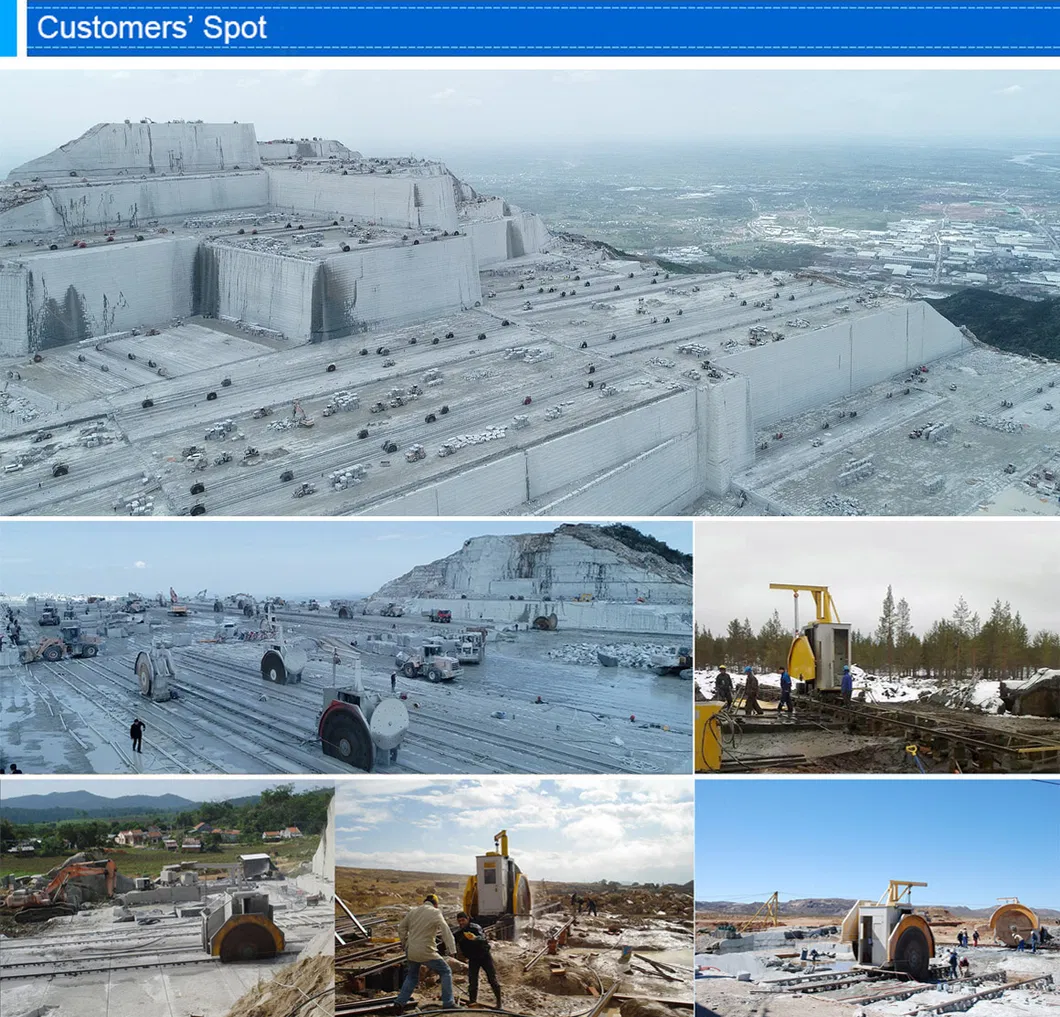

Mining Site Machine Working

Frequently Asked Questions

Q: What is the maximum thickness the machine can cut at a quarry? A: For a 3000mm diameter blade, the max thickness is approximately 1200mm (Diameter/2 - 300mm deductive parameter).
Q: How deep can the double blade machine cut per trip? A: It can cut 150-250mm depending on the hardness of the stone.
Q: What is the cutting speed along the rail? A: It can achieve approximately 200m per day for marble and 150m per day for granite, based on 20 hours of operation.
Q: How many blades should be equipped for the machine? A: Two sets for one machine are recommended, or three sets for every two machines. Each set includes 4 pieces of blades.
Q: How long can a blade work without changing the diamond segments? A: For granite at 1500mm depth, segments should be changed after about 400 meters. For marble, after about 1000-2000 meters.
Q: How many rails are suggested per machine? A: We suggest equipping 300 meters of rails for each machine to ensure efficient operation.
