Product Description

Product Overview
Model NO.:
NS19
Type:
Strand Pusher Machine
Motor:
3kw, 4kw, 5.5kw, 7.5kw
PC Strand Diameter:
φ15.24mm
Motor Speed:
1420r/Min
Application:
Bridge, Buildings, Tunnel, Highway and Railway
Package Gross Weight:
130.000kg
Package Size:
70.00cm * 70.00cm * 45.00cm
Electric PC Strand Threading Machine
Infrastructure Protection Pushing Machine
Product Description

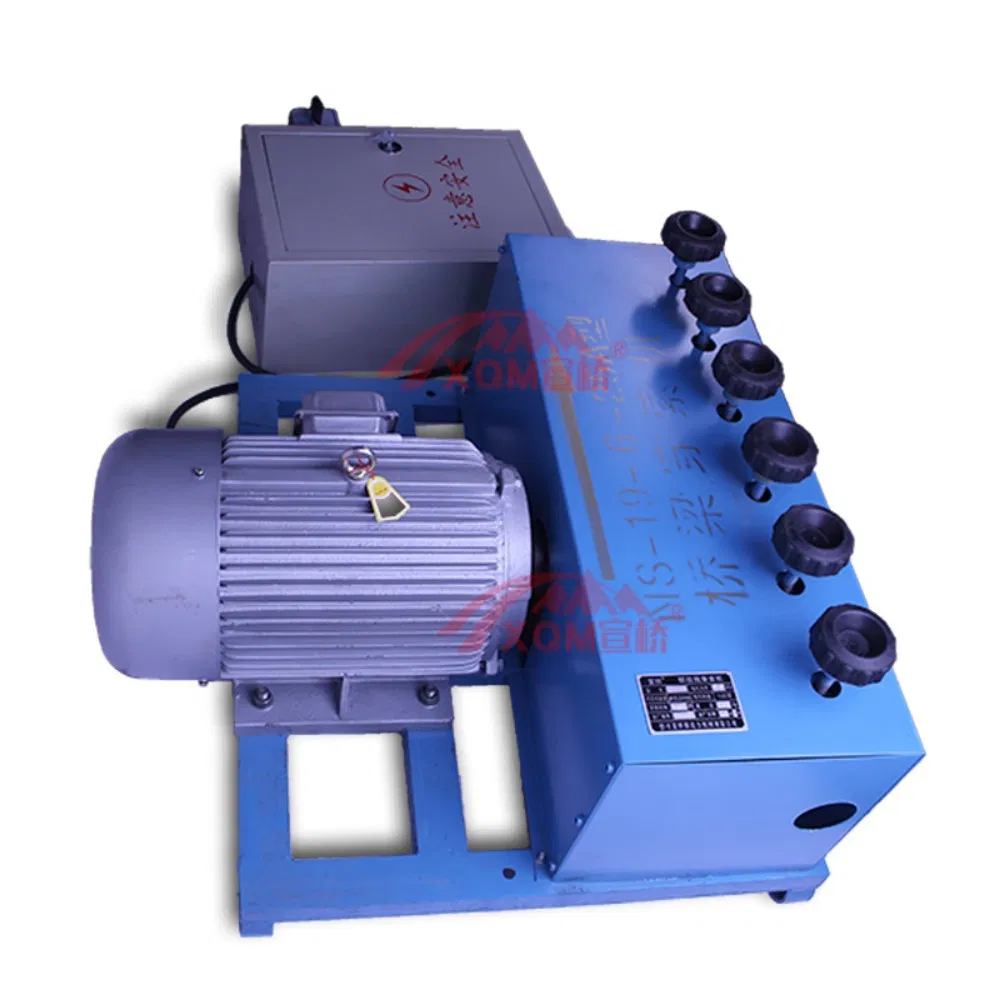

Description: In bridge construction and large-scale building projects, this machine is the essential tool for threading prestressed PC strands through ducts. The motor drives a double main wheel system; as the PC strand is inserted, the active and follower wheels press it forward through reserved holes until it reaches the required tensioning size at the other end.

🚀
High Efficiency: The machine integrates threading and retrieval functions into one unit, significantly reducing labor intensity.
⚙️
Simple Operation: Small volume and light weight allow for two-person operation and easy maintenance.

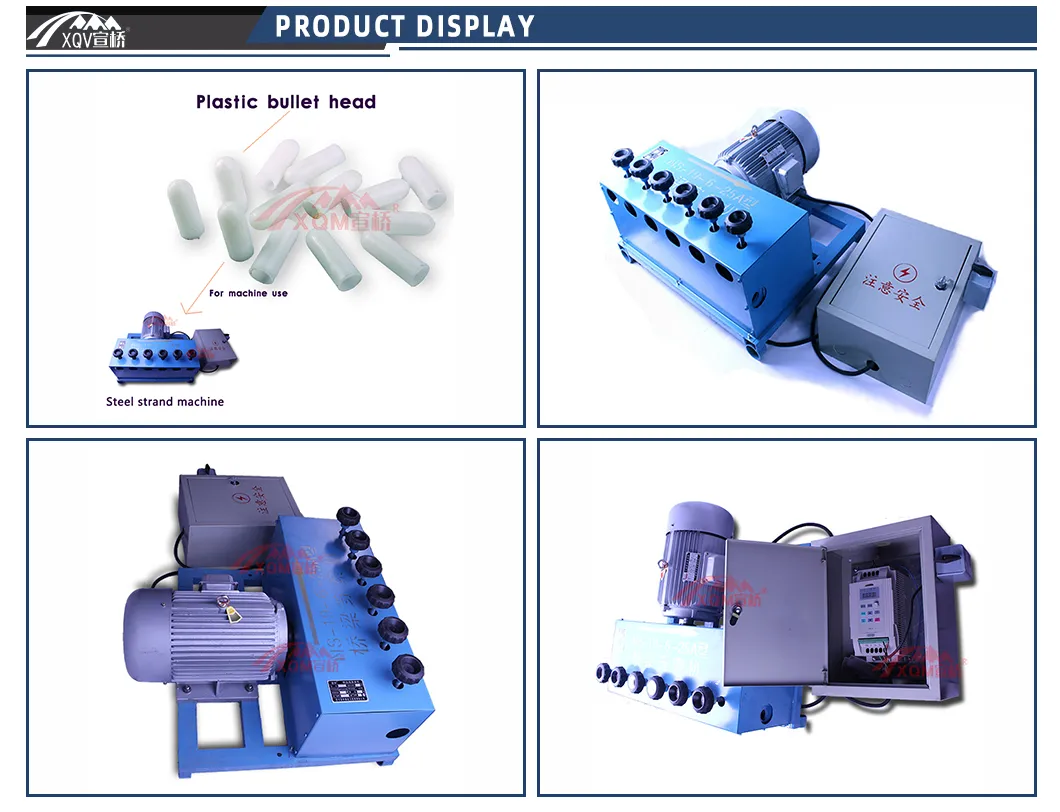

Machine Operation Details
Technical Specifications
Model No Strand Diameter Motor Power Motor Speed Delivery Distance Weight Size (mm)
NS19-3-25AΦ15.24mm3KW1420r/min50m120kg620x420x350
NS19-4-25AΦ15.24mm4KW1420r/min80m150kg720x620x350
NS19-5-25AΦ15.24mm5.5KW1420r/min100m200kg720x620x350
NS19-6-25AΦ15.24mm7.5KW1420r/min150m300kg720x950x350

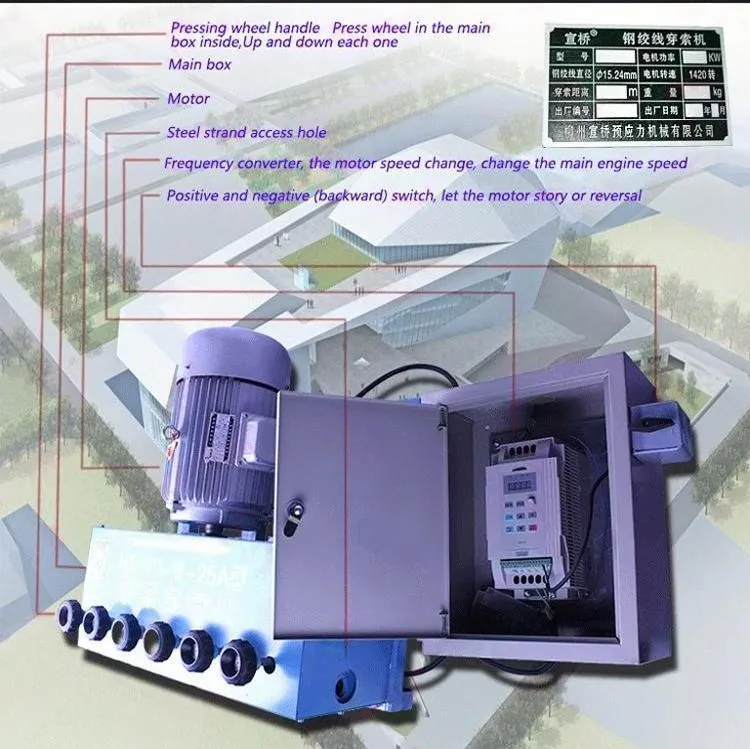

Technical Drawing
Key Applications
🌉
Bridges: Precast box girders and continuous girders.
🏢
High-rises: Long-span slabs and foundation pit anchor cables.
🚇
Transportation: Tunnel lining anchor rods and railway projects.
💧
Hydraulic: Prestressed construction for dams and ship locks.

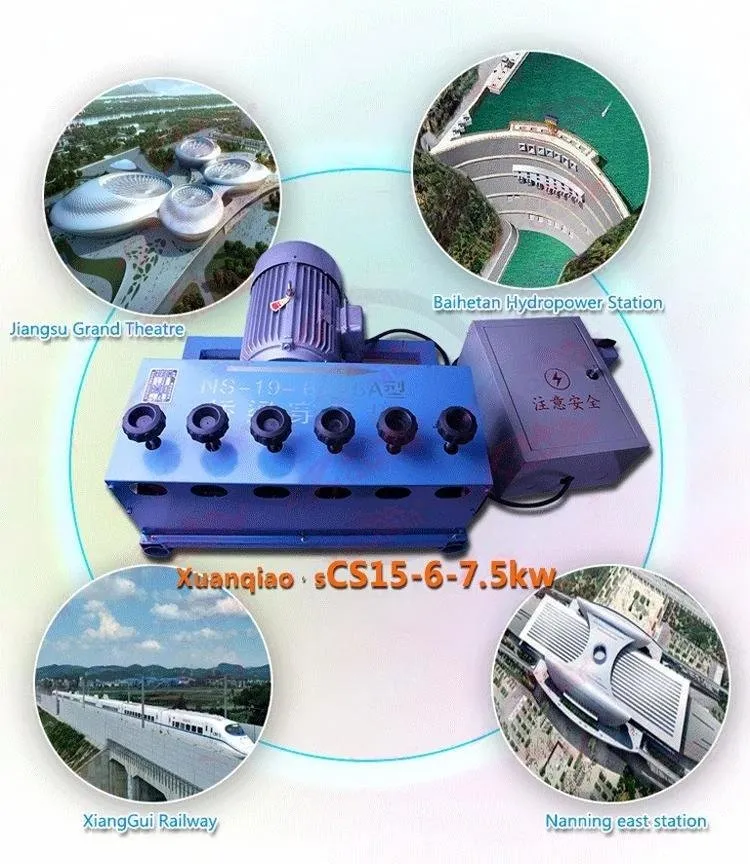

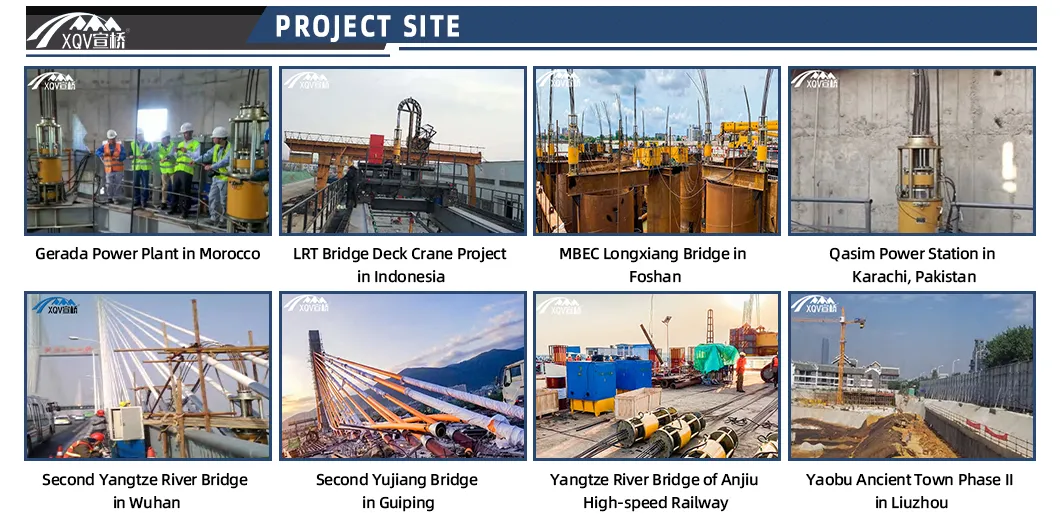

Application Scenario
Factory Display & Certifications

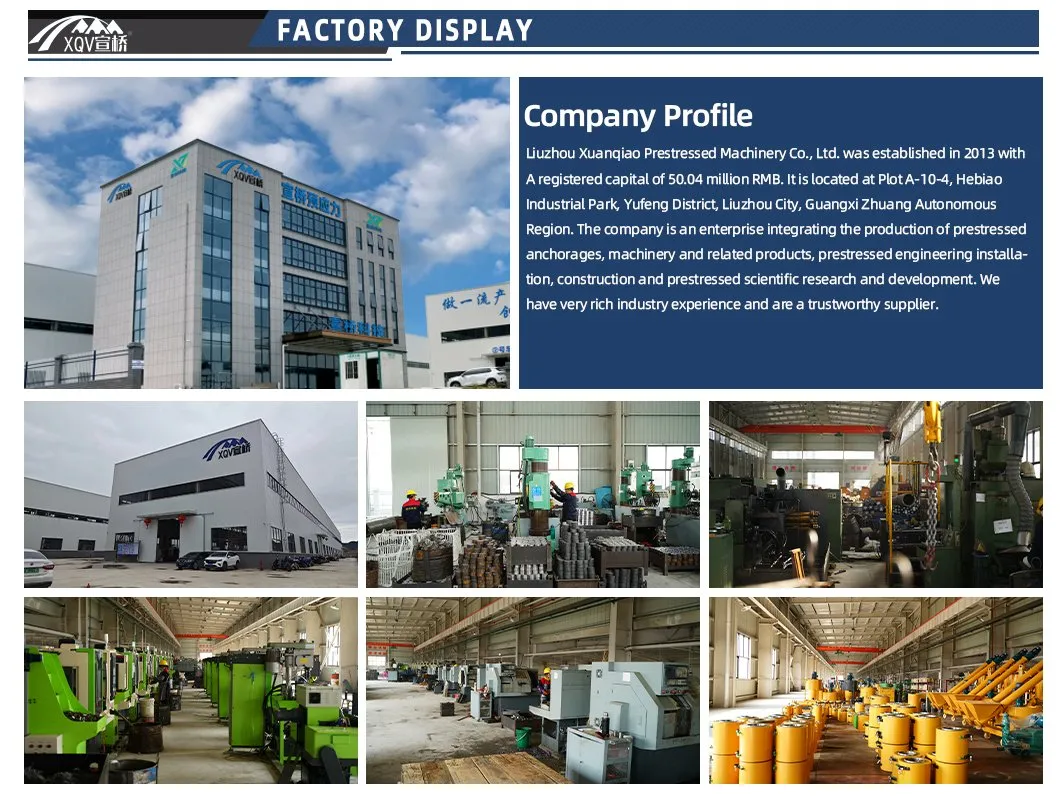

Production Line
Workshop
Quality Control
Testing Area
Product Certifications
Frequently Asked Questions
Q1: How do you guarantee product quality?
Mill Test Certification is supplied with every shipment. We also support and welcome third-party inspections to ensure full compliance.
Q2: Are there any hidden costs in the quotation?
No, our quotations are transparent and easy to understand, ensuring no additional or unexpected costs incur.
Q3: Do you provide OEM or customized anchorage systems?
Yes, we provide full OEM services. We have collaborated with numerous global PT suppliers; simply provide your drawings for customization.
Q4: What is your typical delivery lead time?
In-stock items are shipped within 3 days. Out-of-stock items take approximately 7 days, and customized products require 10-15 days.
Q5: What payment terms do you accept?
We accept TT, LC, Western Union, and PayPal. Other payment terms can be discussed upon request.
Q6: Can I request free samples for testing?
Yes, we provide free samples for your testing and verification requirements.
