Best Seller 16ton Material Handling Excavator Material Handling Equipment

1 / 5

Best Seller 16ton Material Handling Excavator Material Handling Equipment

Customization:	Available
Certification:	ISO9001, ISO14001
Condition:	New

Send Inquiry

Product Description

Basic Information

Model NO.:SWMH160K

Operation Form:Cabin

Maximum Lifting Height:15-20m

Maximum Lifting Weight:<20t

Working Radius:10.2 M

Max. Lifting Height:11.3 M

Max. Hoisting Moment:300kn.M

Warranty:One Year

Operating Weight:16 Ton

Transport Package:Nude

Specification:ISO

Origin:China

HS Code:84314900

Production Capacity:100 PCS / Year

★

Main Features

Dual engine (Electric motor + Diesel engine) for enhanced environmental protection.
Electric operation equipped with over-current and heat leakage protection.
Automatic phase sequence identification to prevent reverse rotation of oil pump.
Hydraulic system power-off and oil self-locking protection device.
Multiple compound movements during operation to significantly improve efficiency.
Hydraulic system integrated with air-cooled radiator.
360-degree automatic rotating and direction-changing gripper.
Dual-purpose air conditioner (heating and cooling) in the upper control room.
Hydraulically elevated cabin for optimal visibility.

📷

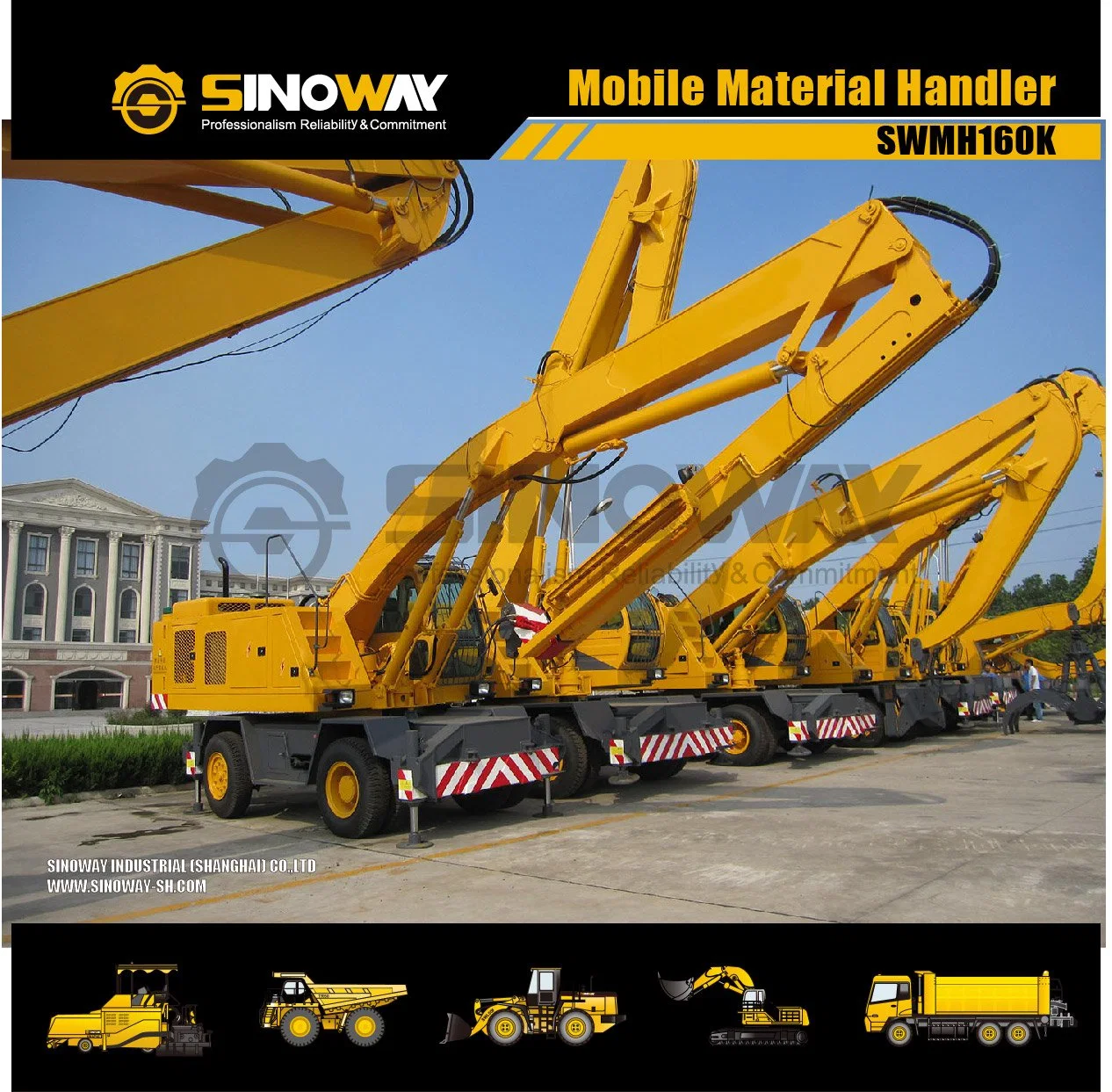

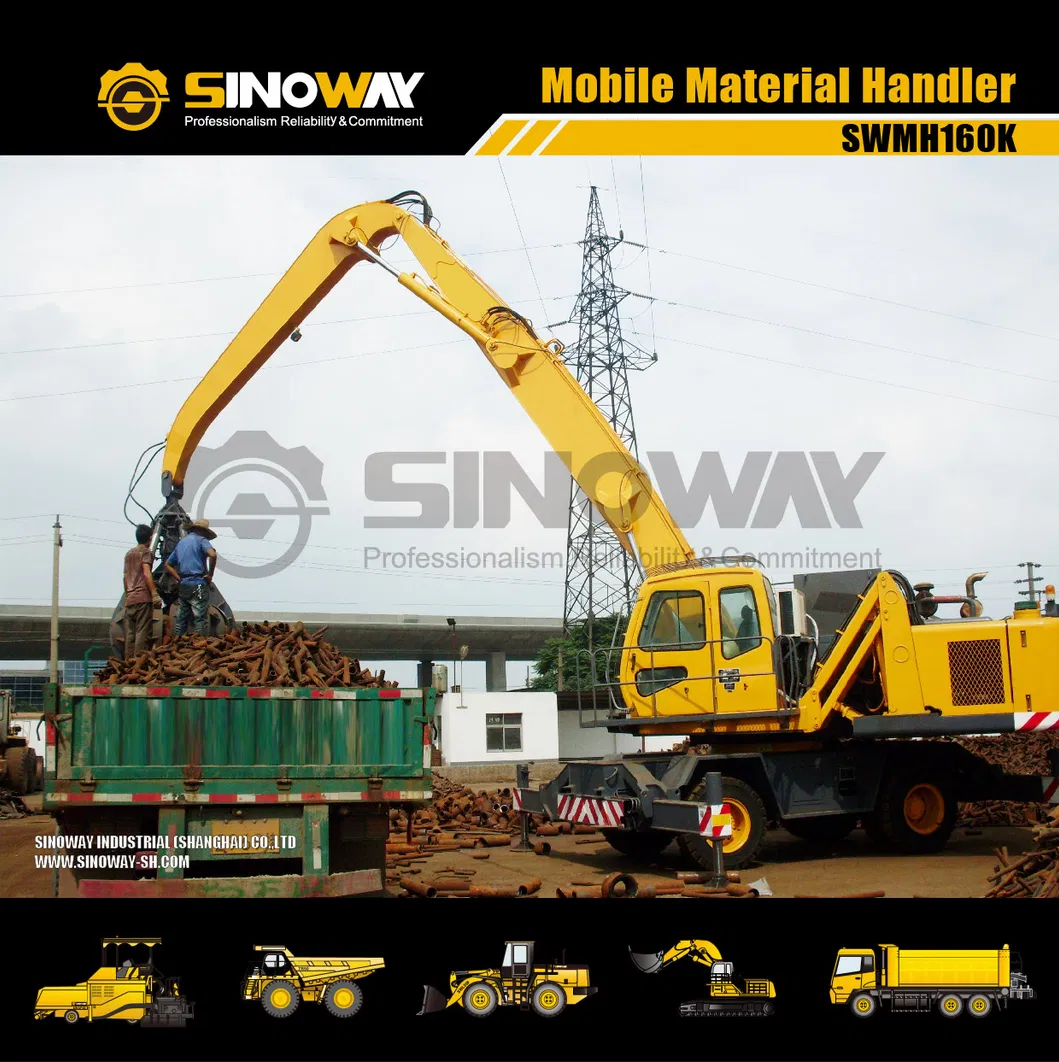

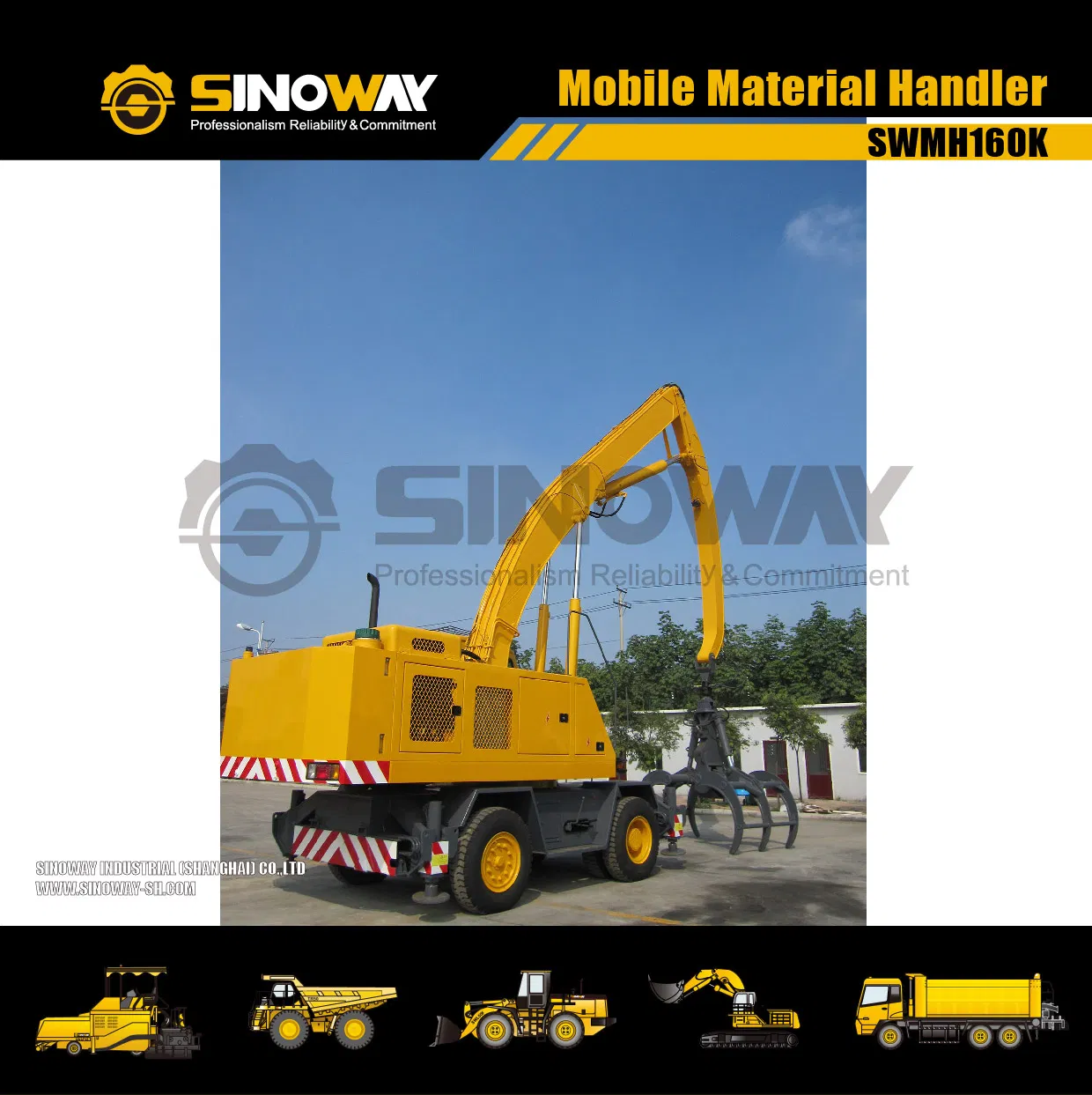

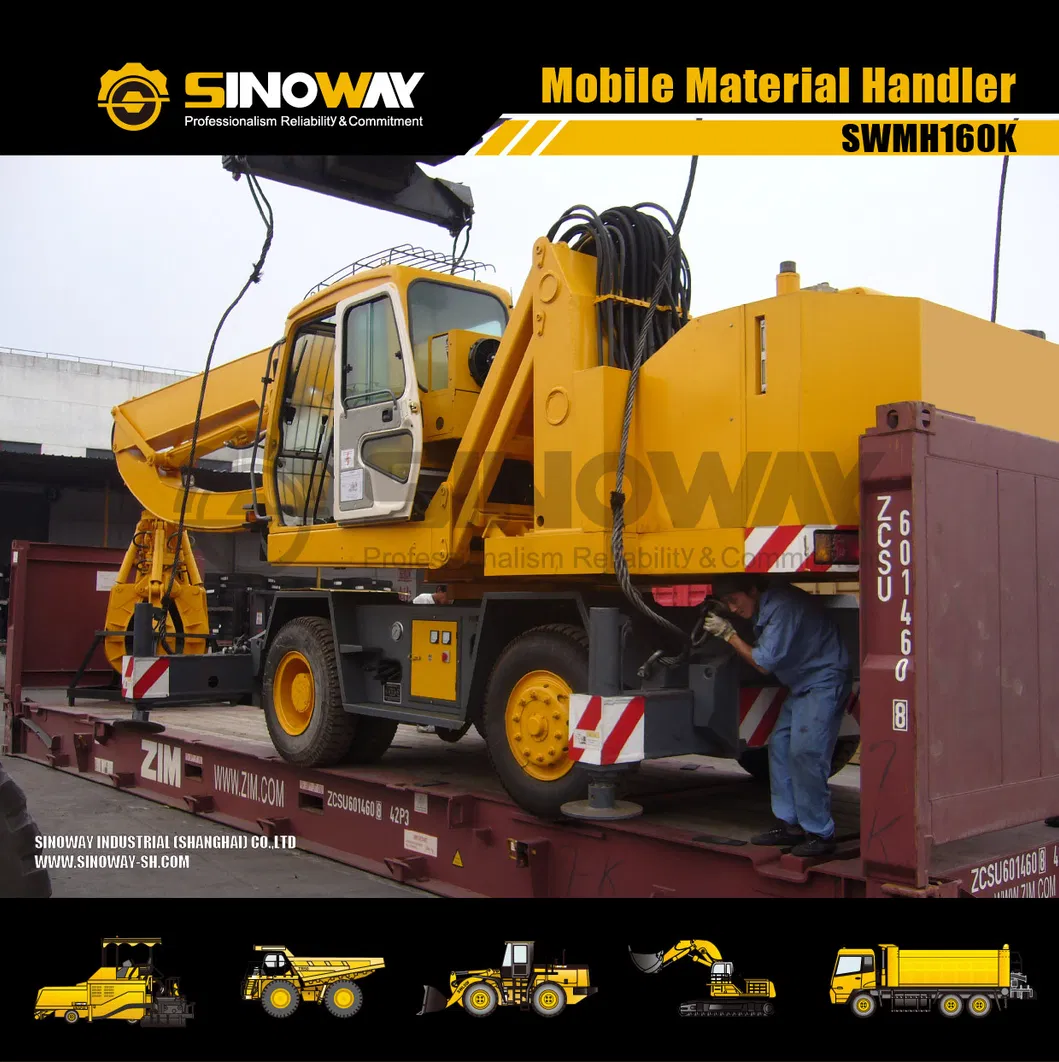

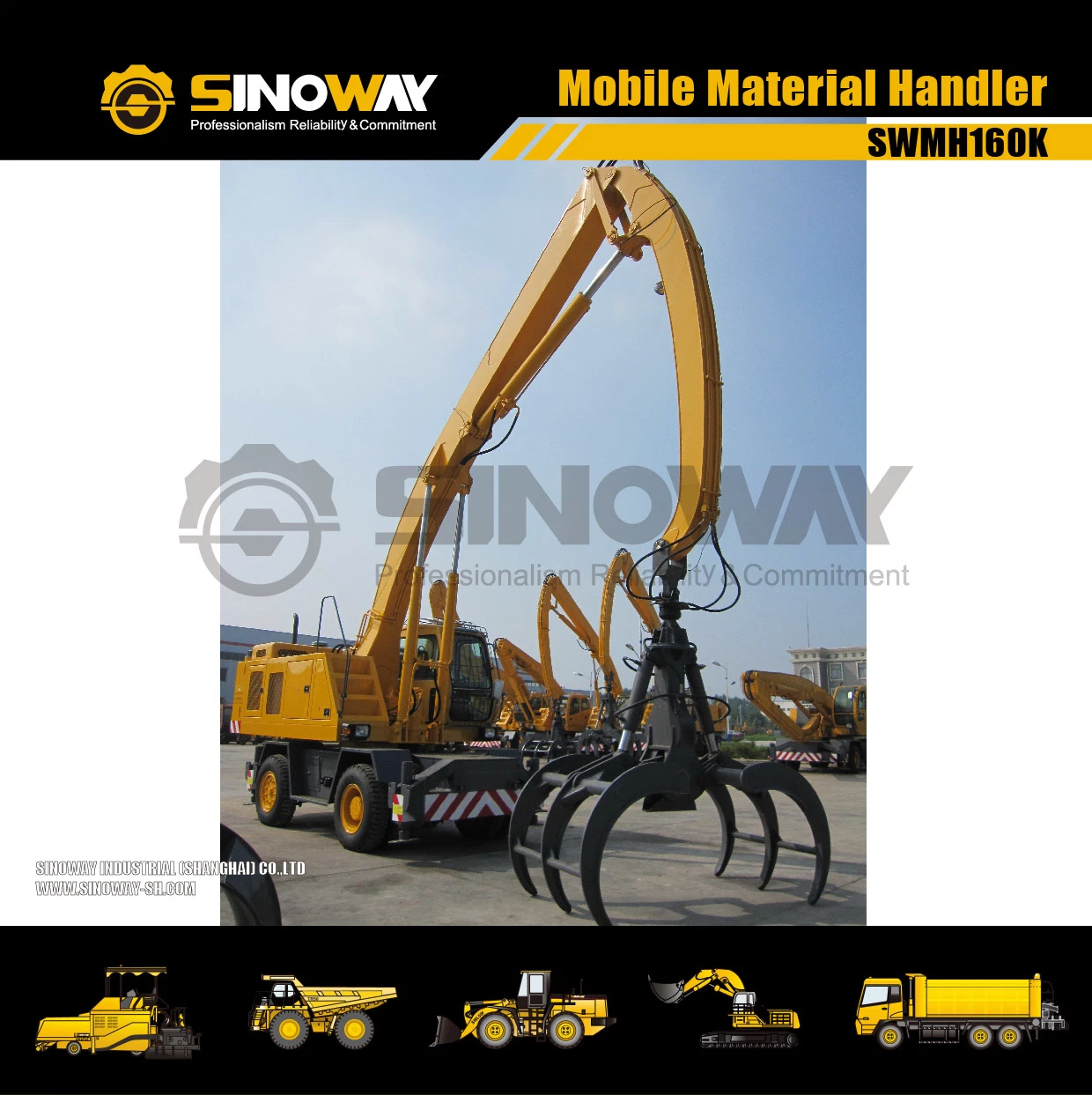

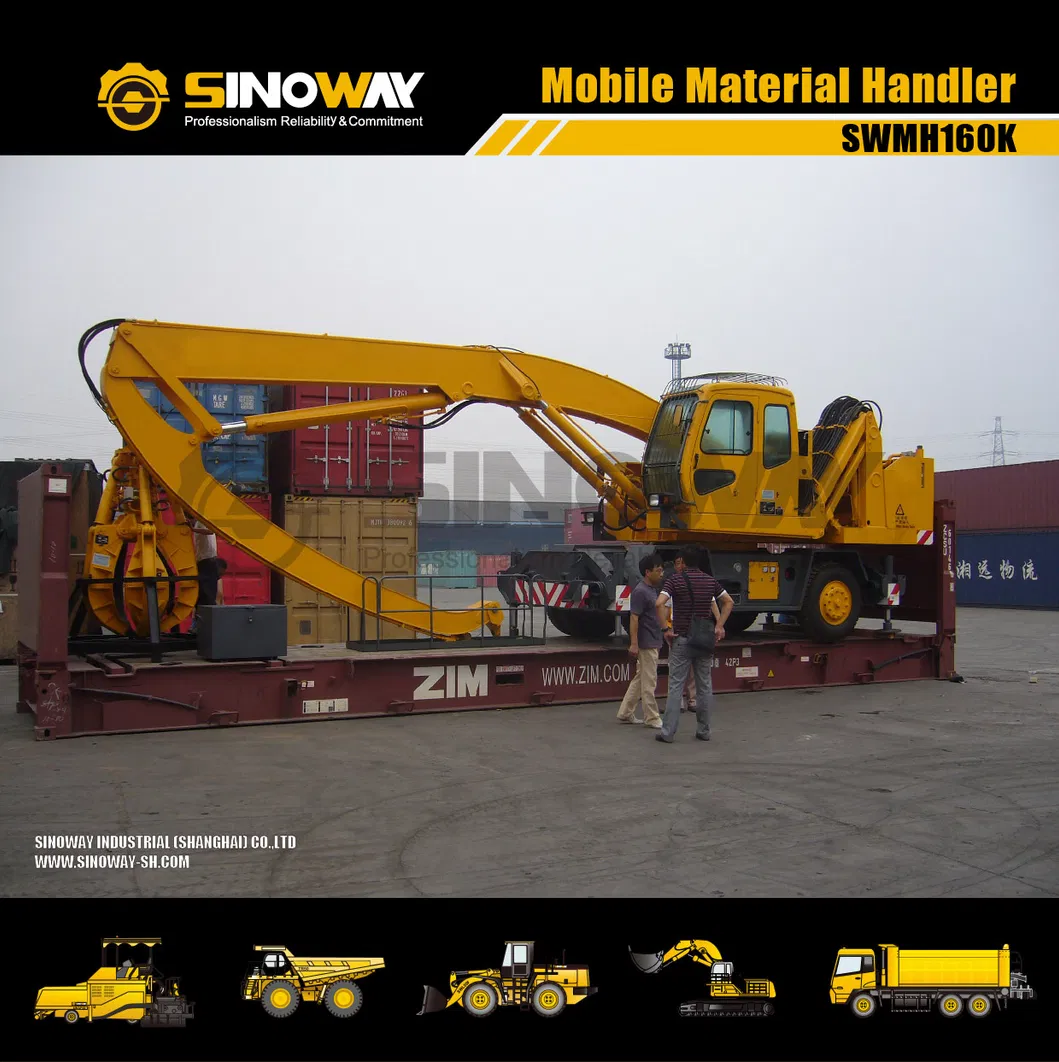

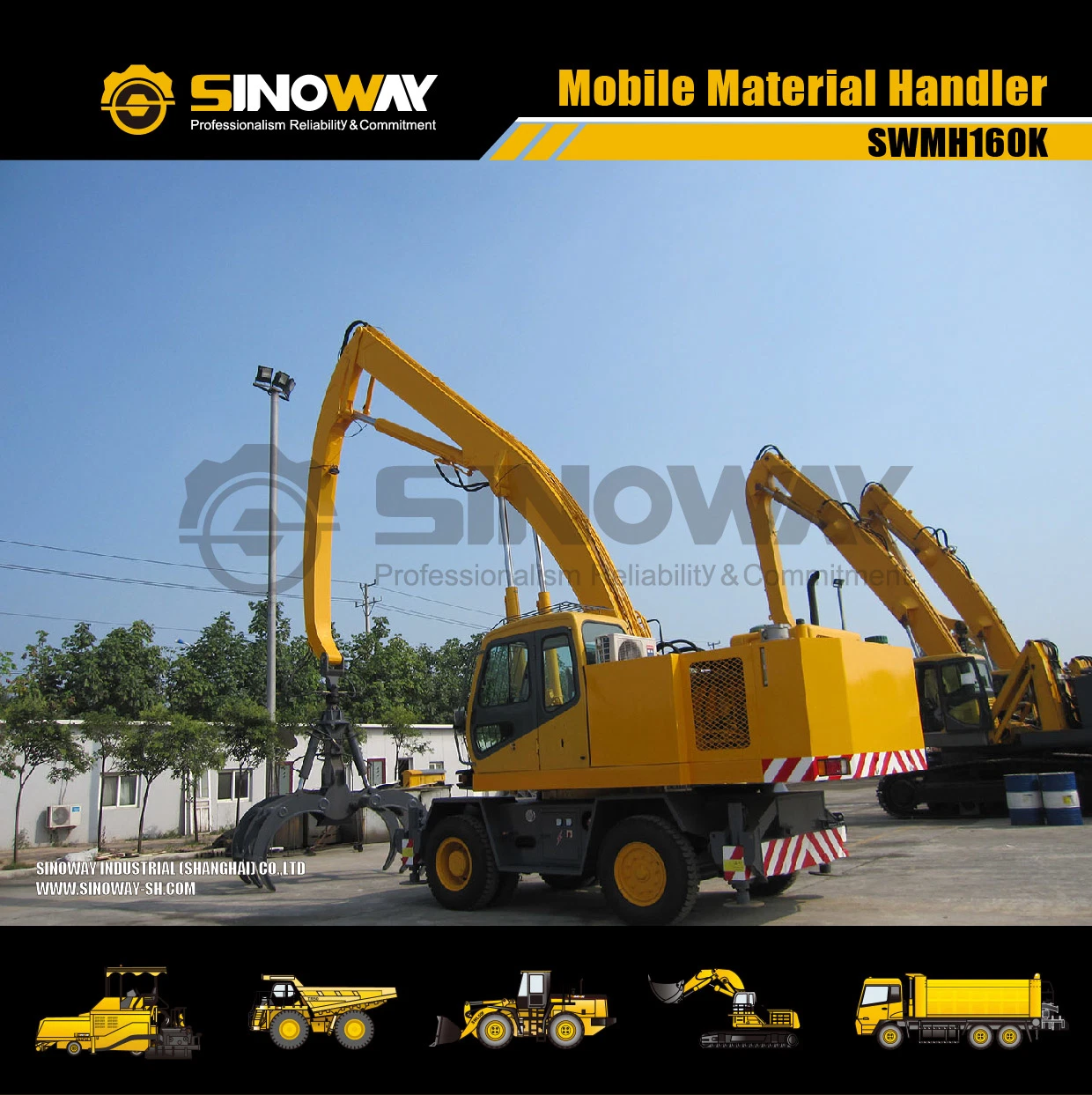

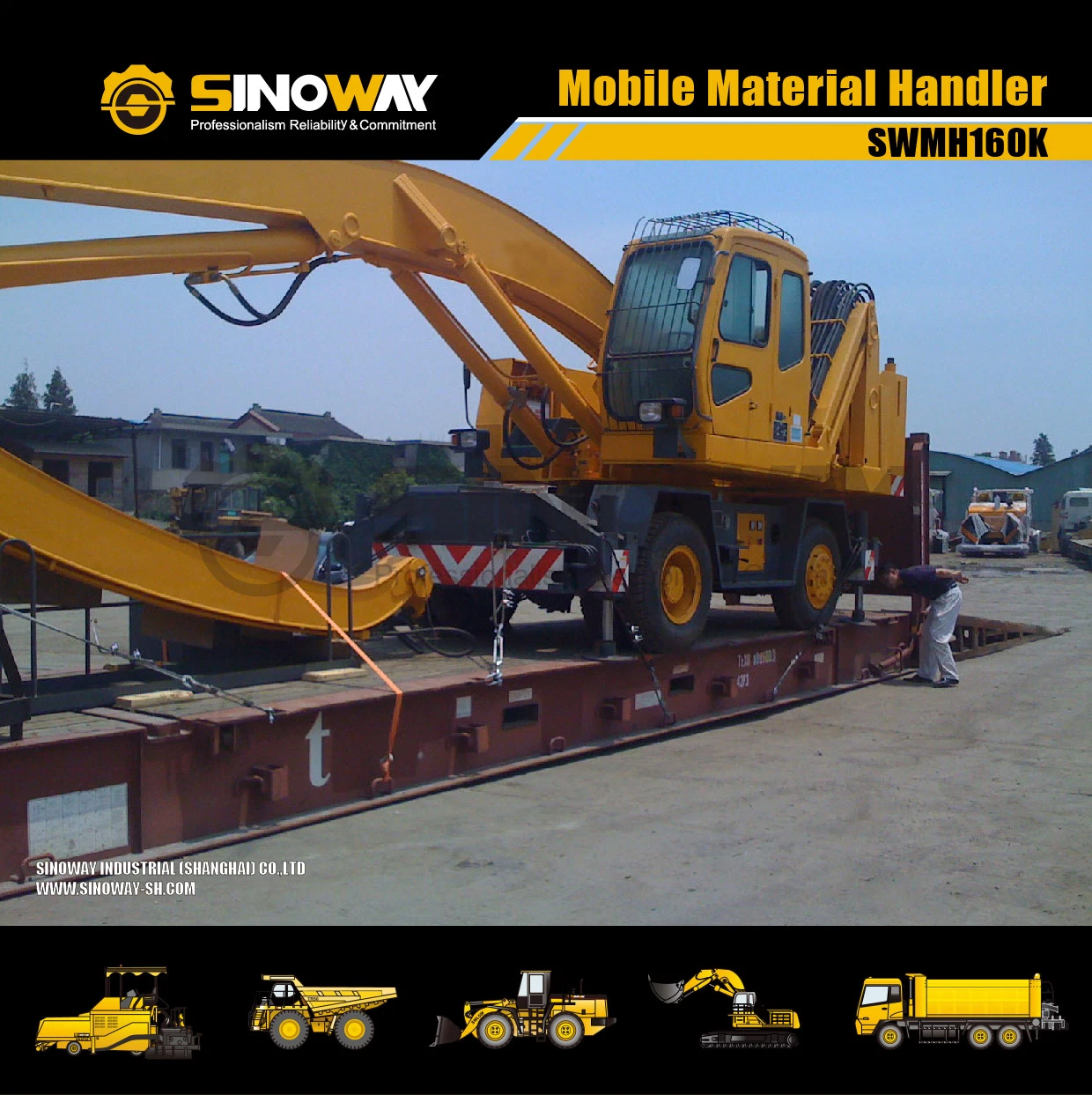

Machine Display

📋

Technical Specifications

Parameter Item	Specifications (SWMH160K)
Electrical Motor Power	75KW
Diesel Engine Power	105KW
Max. Swing Speed (Electric/Diesel)	5.5r/min / 6r/min
Max. Pulling Capacity	10000kg
Working Radius @ Max. Pulling	3000mm
Max. Working Radius	11800mm
Max. Lifting Capacity @ Max. Radius	2500kg
Maximum Hoisting Moment	300kN.m
Full Boom Length	14000mm
Outrigger Distance (L x T)	4600mm x 4400mm
Front / Rear Axle Load	7500Kg / 15500Kg
Max. Travelling Speed	15km/h
Operating Weight	23000kg
Overall Dimensions (L x W x H)	11360 x 2670 x 3410mm
Grab Model	1.0m³ Clam Grab

✔

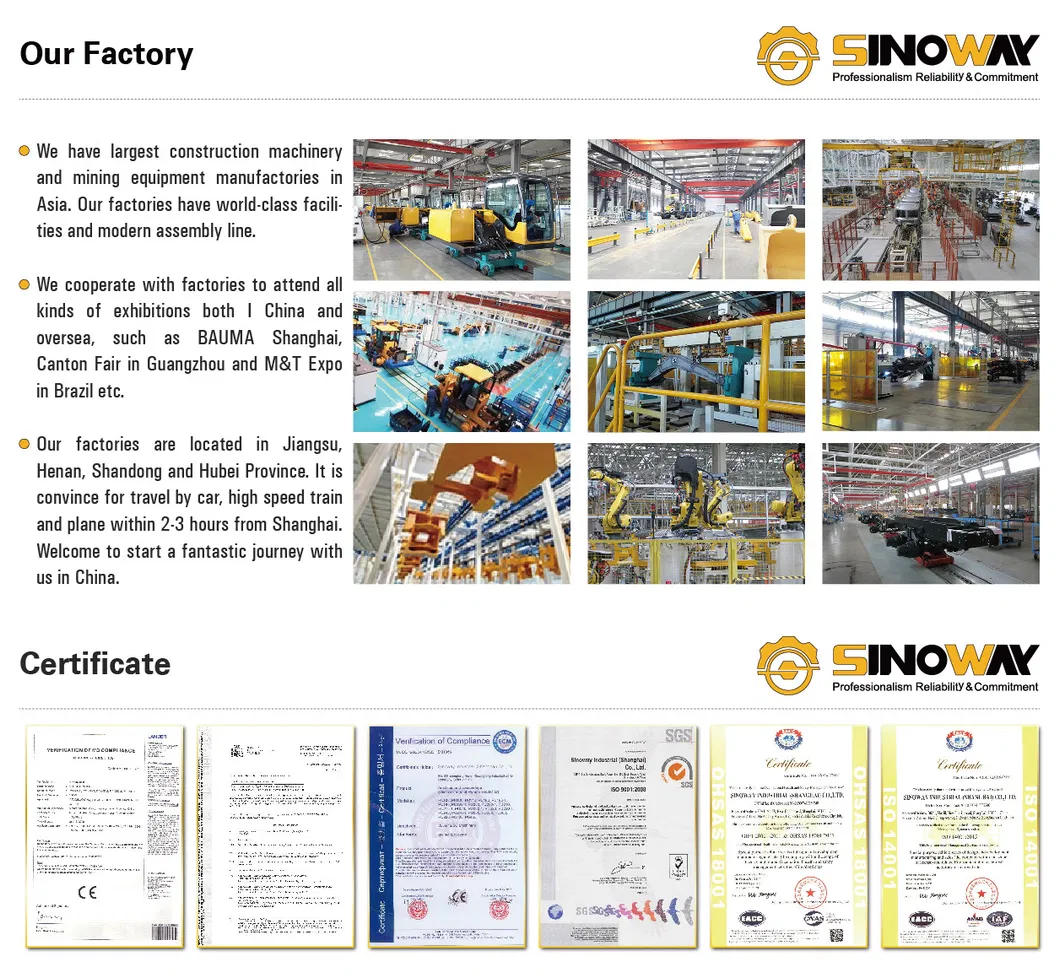

Manufacturing Excellence

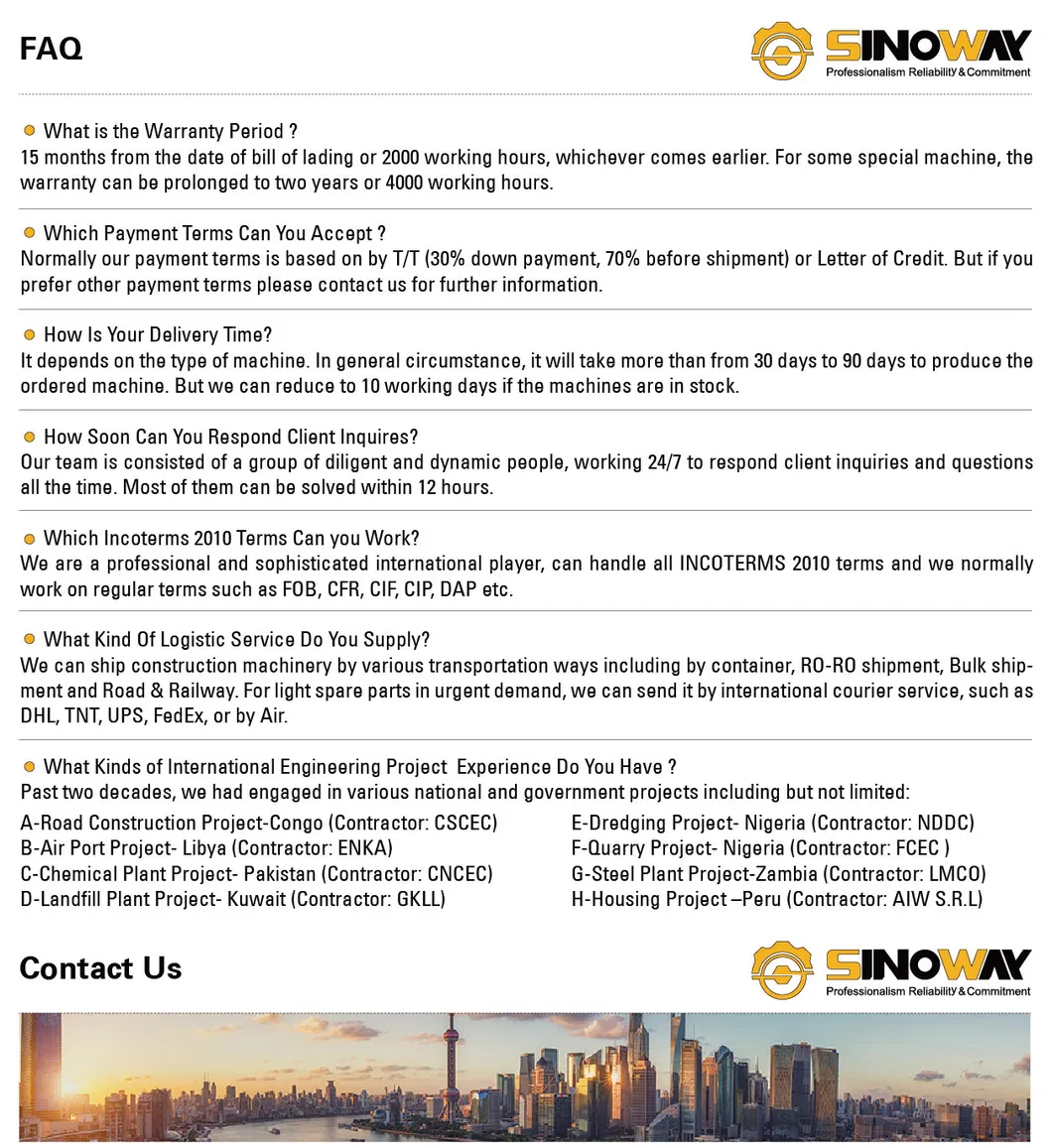

Frequently Asked Questions

Q1: What are the advantages of the dual engine system? The SWMH160K features both an electric motor and a diesel engine, allowing for more flexible operations and improved environmental protection depending on the job site requirements.

Q2: How does the cabin elevation improve operation? The hydraulic elevated cabin provides the operator with a higher vantage point, significantly improving visibility and safety during material handling tasks.

Q3: What safety protections are included in the hydraulic system? The system includes power-off protection, oil self-locking devices, and automatic phase sequence identification to prevent any mechanical failures or reverse rotation.

Q4: Can the gripper rotate completely? Yes, the gripper is designed to rotate and change direction automatically through a full 360 degrees, allowing for precise material placement.

Q5: Is the cabin comfortable for long working hours? Absolutely. The upper control room is equipped with a dual-purpose air conditioner for both heating and cooling, ensuring a comfortable environment for the operator in any weather.

Q6: What is the warranty period for this equipment? The SWMH160K material handler comes with a standard one-year warranty covering essential components and performance.
