| Model NO. | Guardrail Roll Forming Machine |
| Tile Type | Glazed |
| Certification | CE, ISO |
| Transmission Method | Hydraulic Pressure |
| Strips Thickness | 2.3-4mm |
| Material | Cold Rolled Mild Steel |
| Specification | 4550 x 3050x 3520mm |
| Production Capacity | 1000 Pieces/Year |

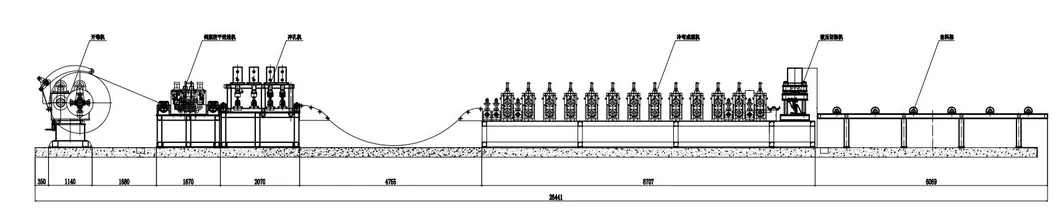

Working Process:

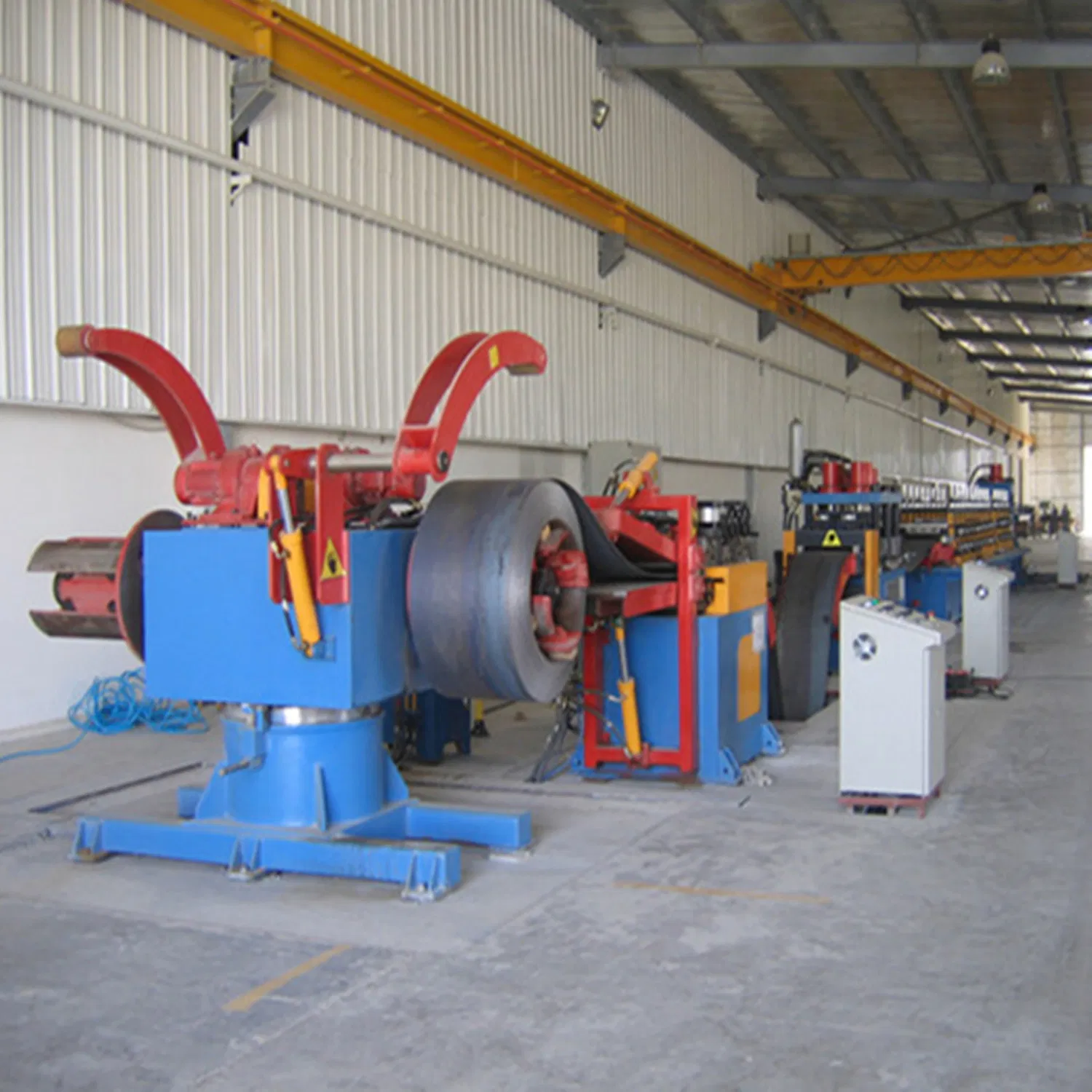

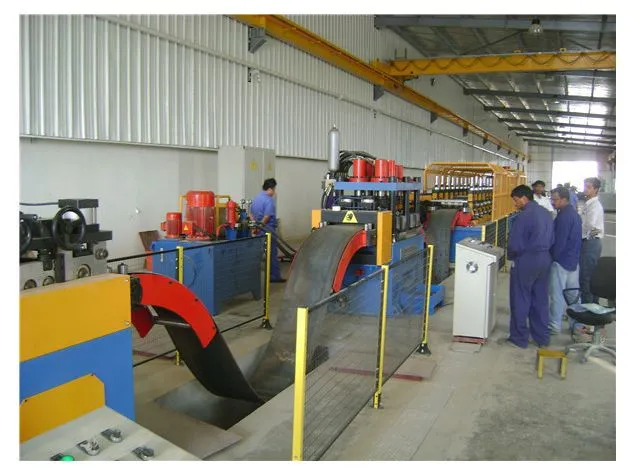

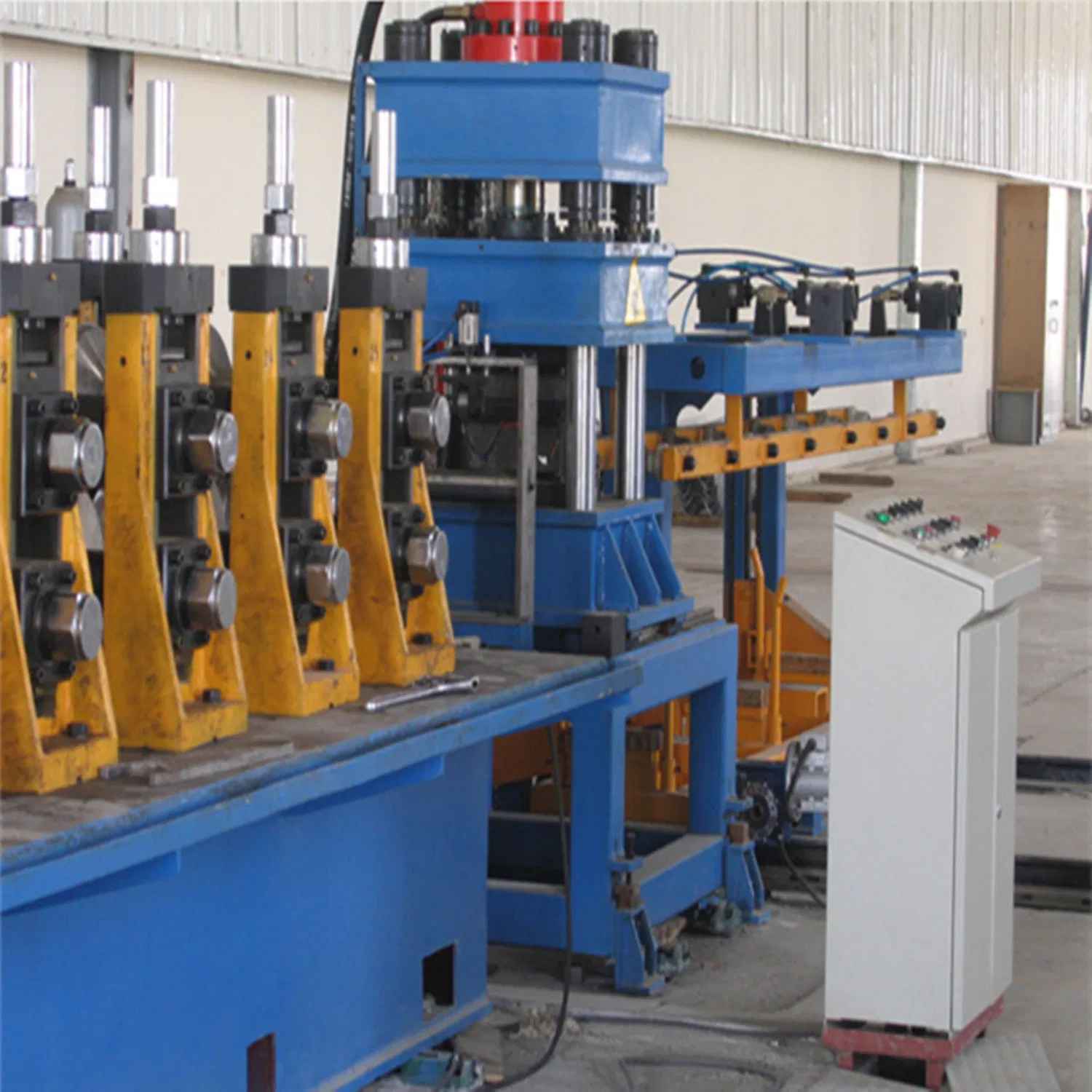

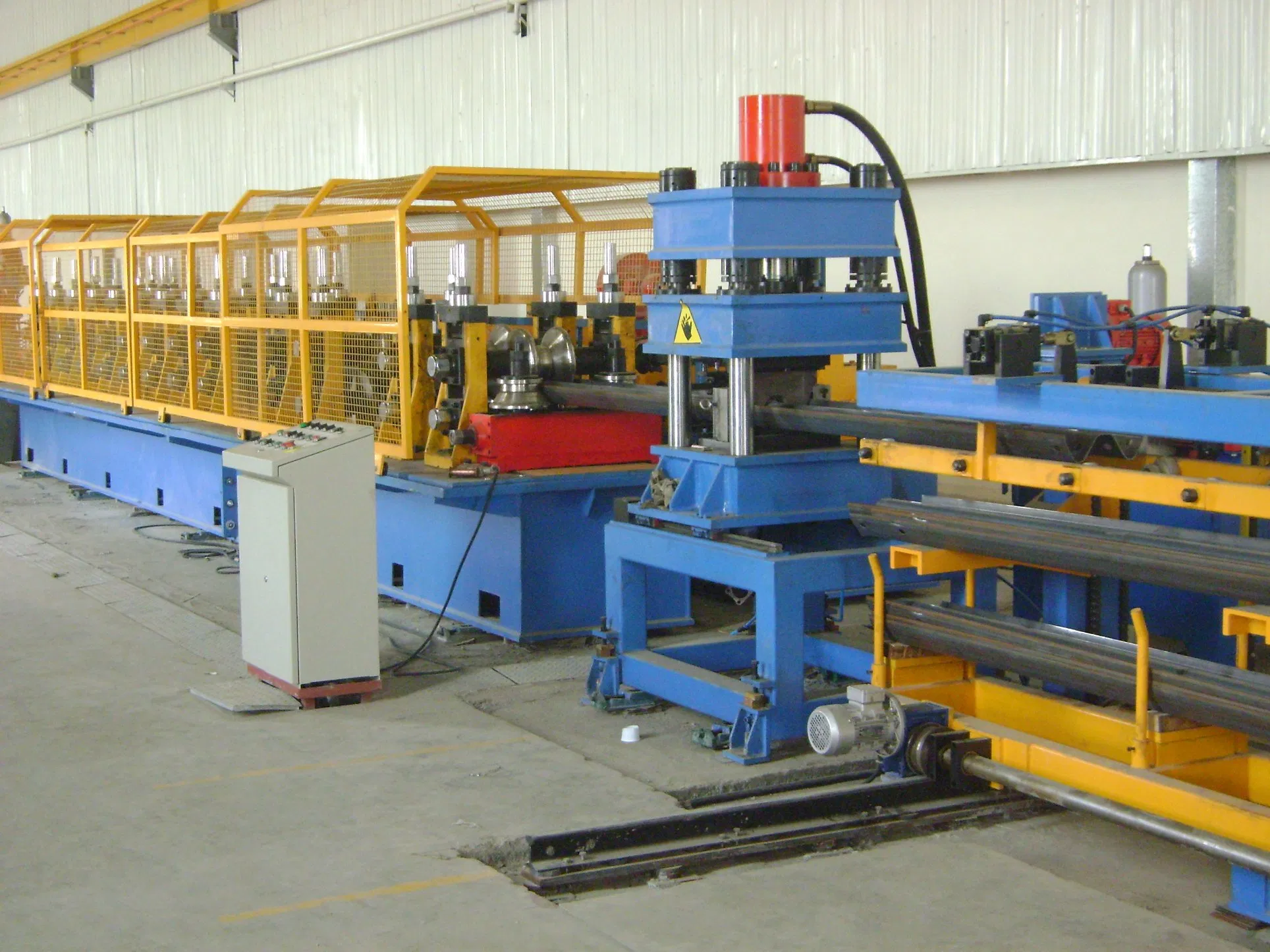

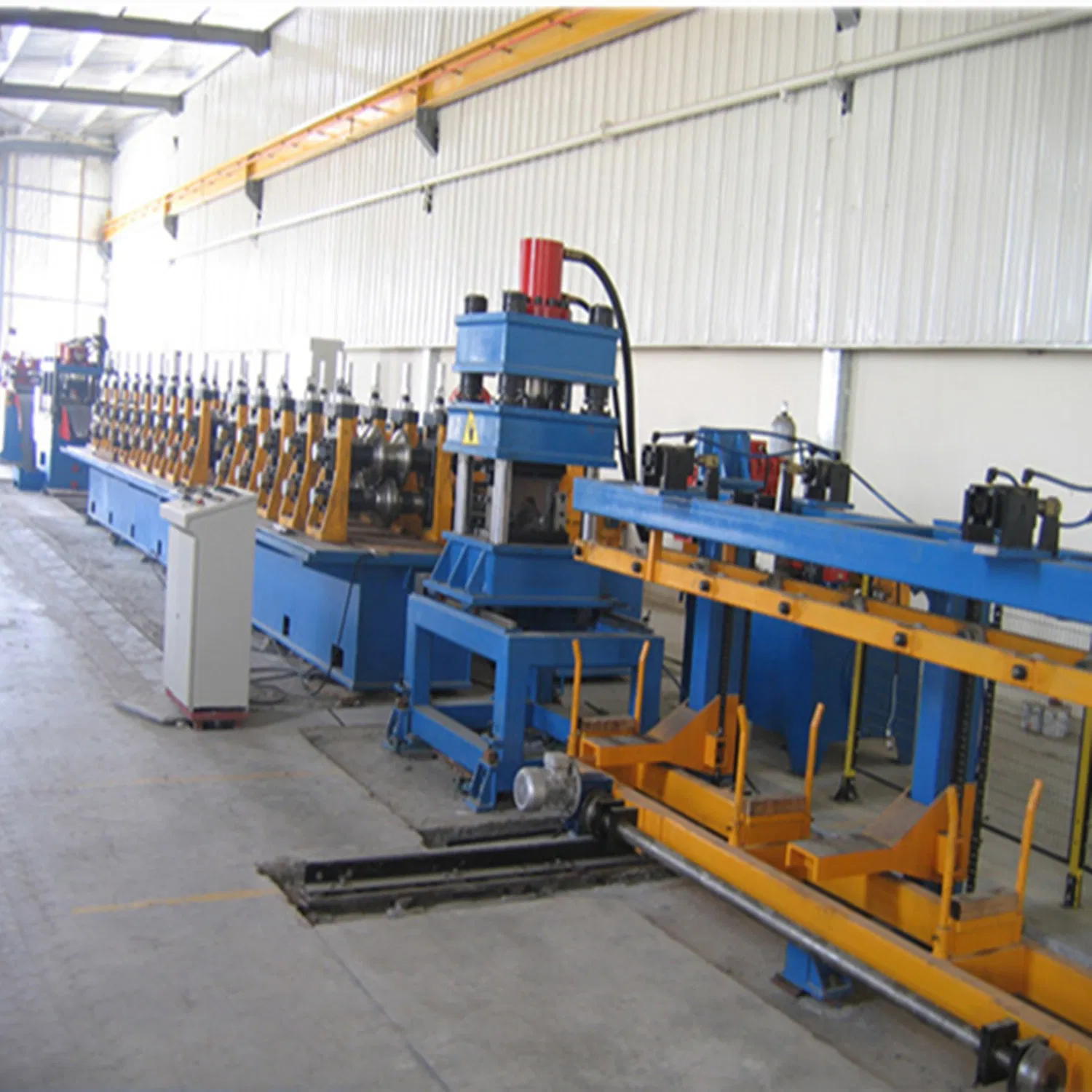

Uncoiling → Servo leveling and feeding → 500T punching & cutting machine + punching and reinforced hole press → pinch feeder → transition material conveyor → roll forming main process → Electromagnetic automatic palletizing machine
| Raw Material Yield Strength | 235Mpa |
| Tensile Strength | ≤550Mpa |
| Coils OD / ID | ≤Ф1600 mm / Ф508mm |
| Strips Width / Thickness | ≤750mm / 2.3~4mm |
| Line Speed | 4 pcs/min (for 4320mm length) |
Main Electrical Components:
| Items Name | Brand |
|---|---|
| PLC | Mitsubishi, Japan |
| Servo system | Yaskawa, Japan |
| Inverter | Delta (Taiwan) |
| Touch Screen | Weinview (Taiwan) |
| Encoder | Omron (Japan) |

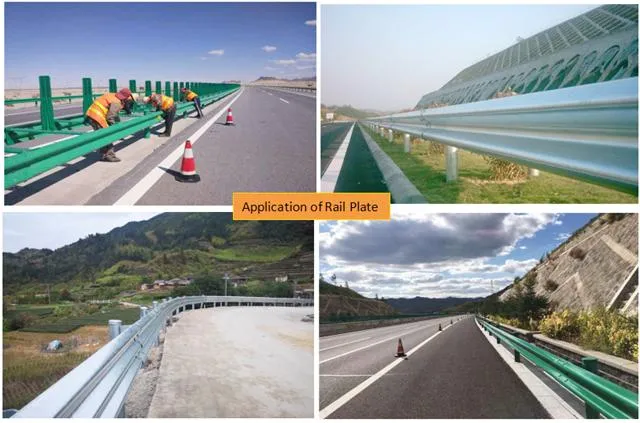

Widely used in bridge construction, highway infrastructure, power culverts, and large-scale transportation projects.

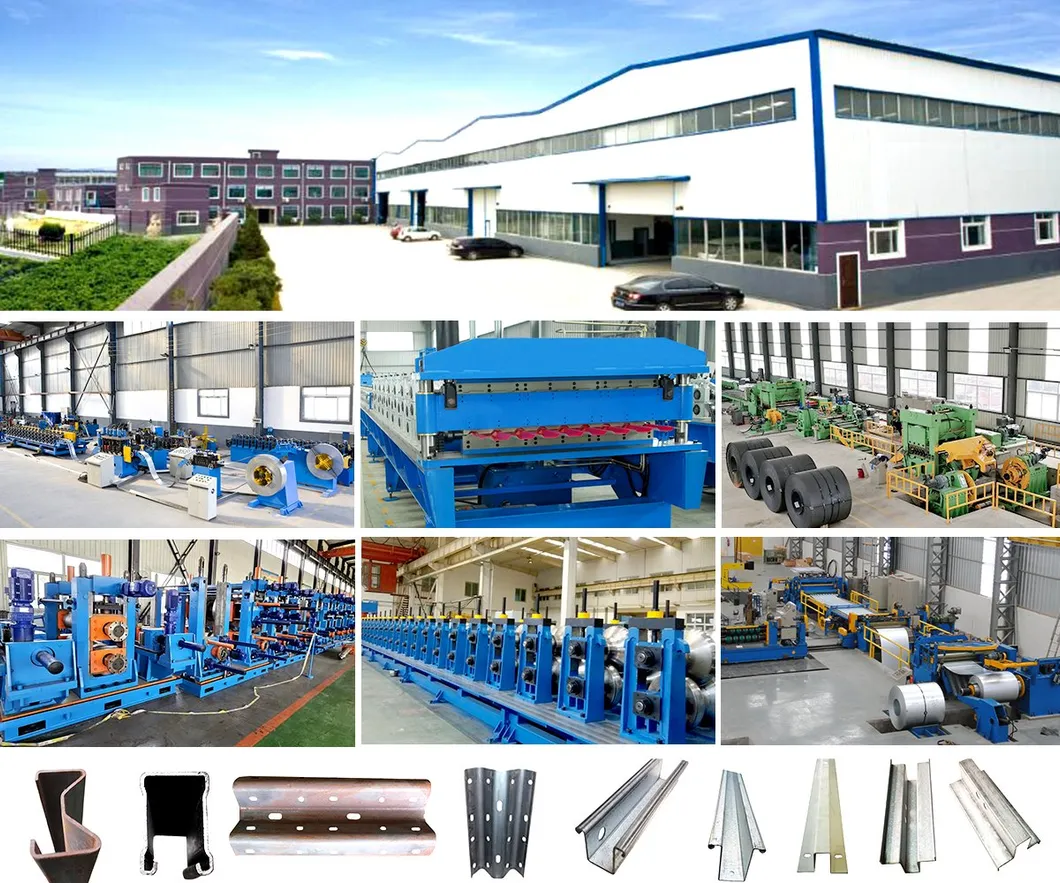

Our workshop started in 2008, established by a professional group of engineers. With over 15 years of development, our equipment has been exported globally to Italy, America, India, Brazil, Russia, and many other countries. We build long-term relationships through high-quality machinery and localized service support.
