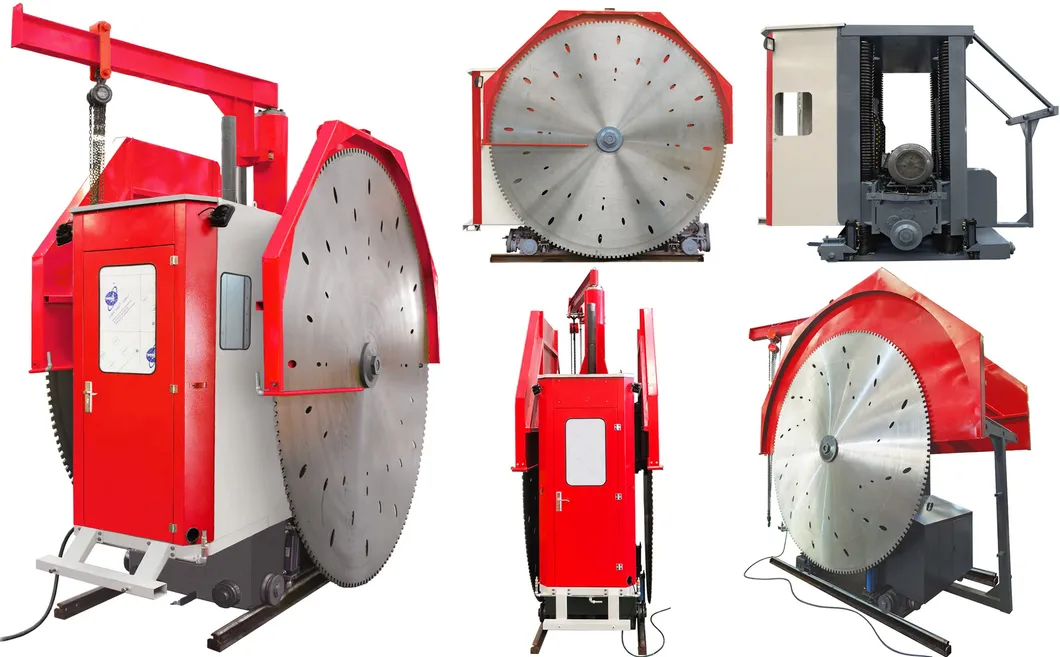

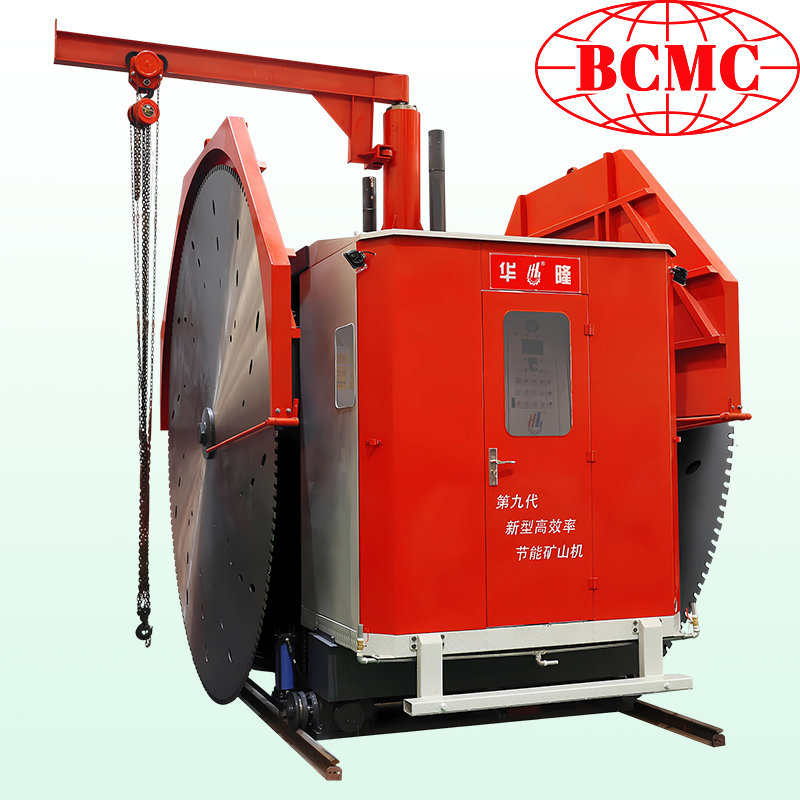

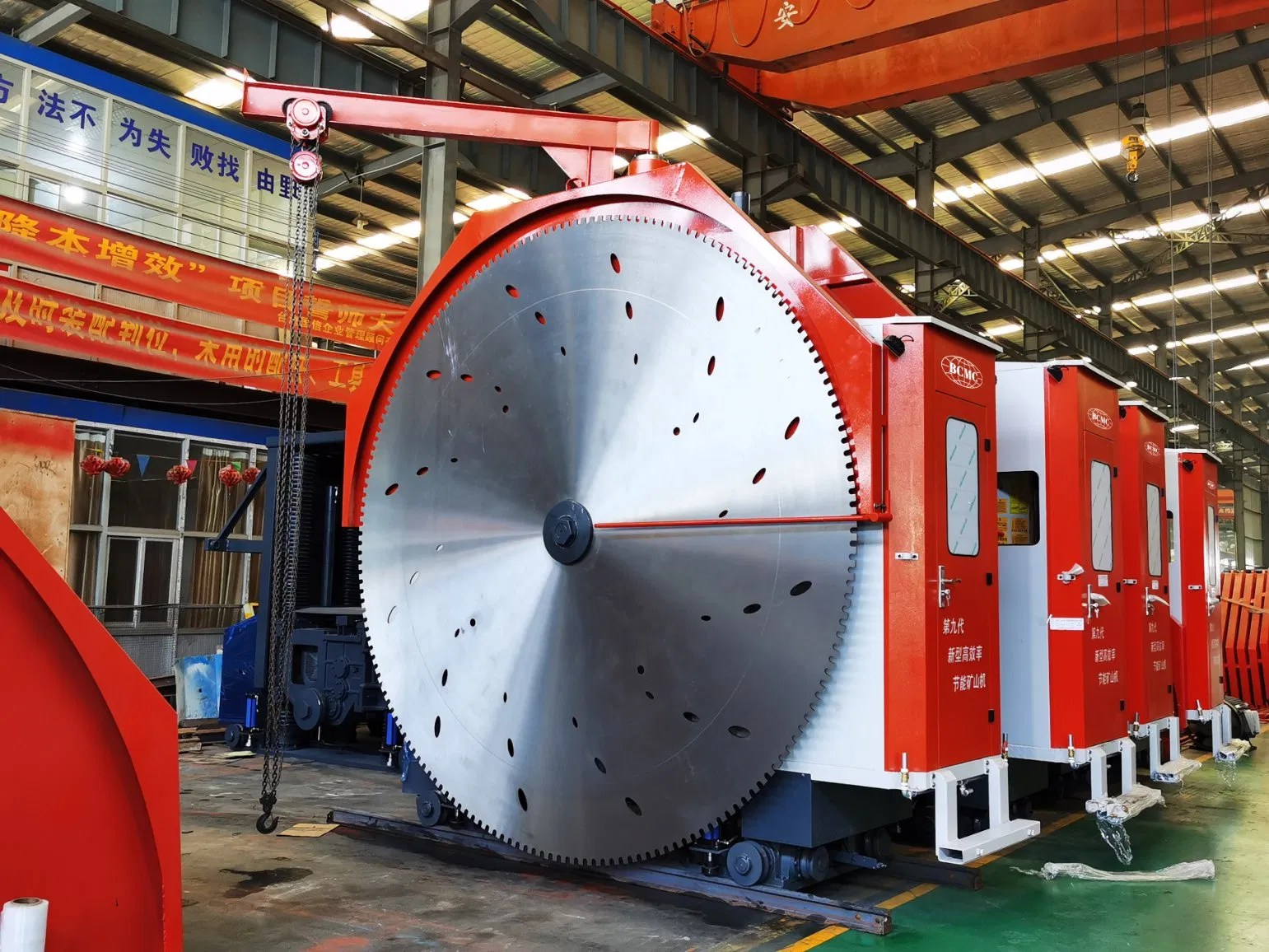

The quarry stone cutting machine is a newly developed series featuring double main permanent magnet motors regulated by frequency converters. Equipped with dual large blades and a 4-shaft transmission system, it is powerful and highly efficient for mining granite, marble, and quartz at quarries.
| Model No. | Unit | BCQZ-3600 A/B/C/D | BCQZ-3800 A/B/C/D | BCQZ-4200 A/B/C/D | BCQZ-4600 A/B/C/D |
|---|---|---|---|---|---|
| Overall Dimensions (L x W x H) | mm | 3900*1600*2900 | 4100*1600*3050 | 4500*1950*3500 | 4700*1950*3700 |
| Overall weight / Gross weight | kg | 7000-9000 | 7000-10000 | 8000-11000 | 9000-12000 |
| Main motor | - | CETL | CETL | CETL | CETL |
| Max Cutting Depth | mm | 1550 | 1650 | 1850 | 2050 |
| Power of main motor | kw | 72*2 | 72*2 | 72*2 | 80*2 |
| Total power | kw | 151 | 151 | 151 | 167 |

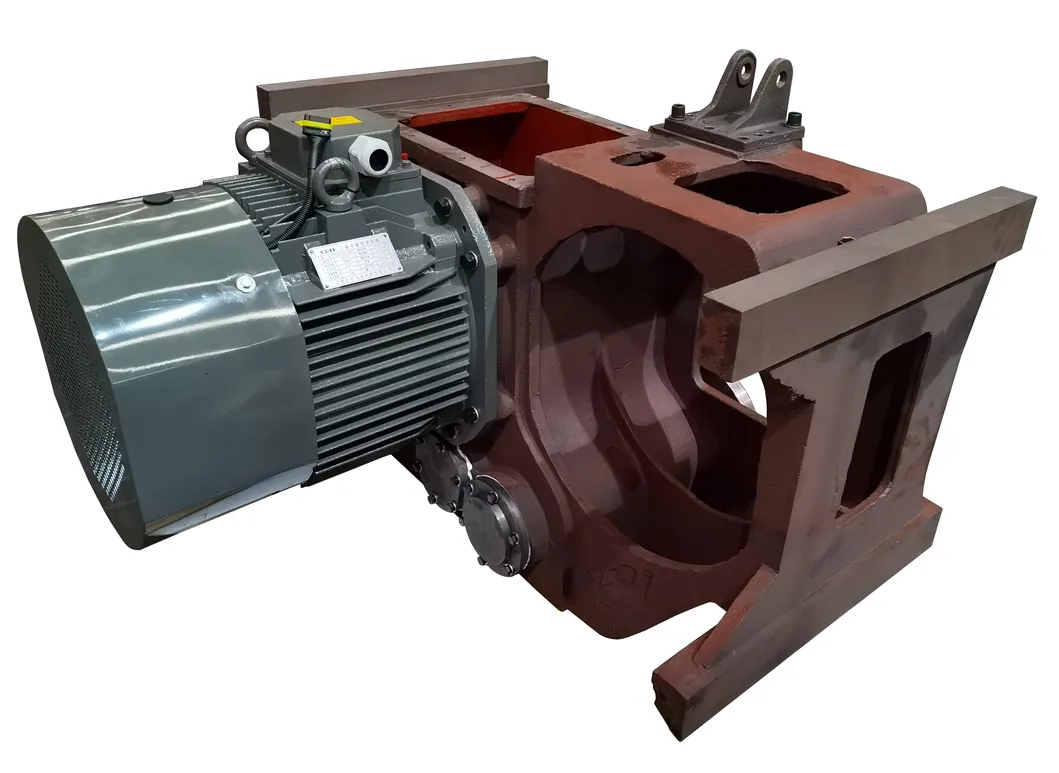

Domestic famous CETL engines, 66 kw, high rated speed at 11000 rpm, wide range of speed control and high reliability.

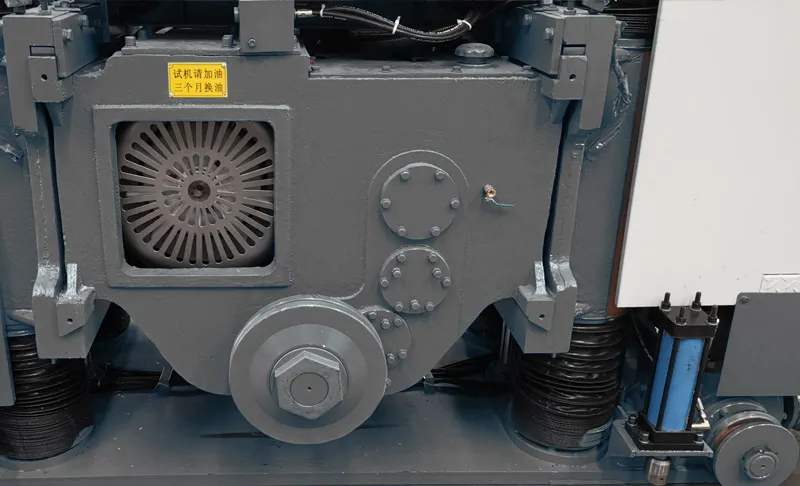

Patent structure for better power utilization and work stability. A group of 4 gear shafts couple tightly, transmitting power to double blades steadily without the need for v-belts.

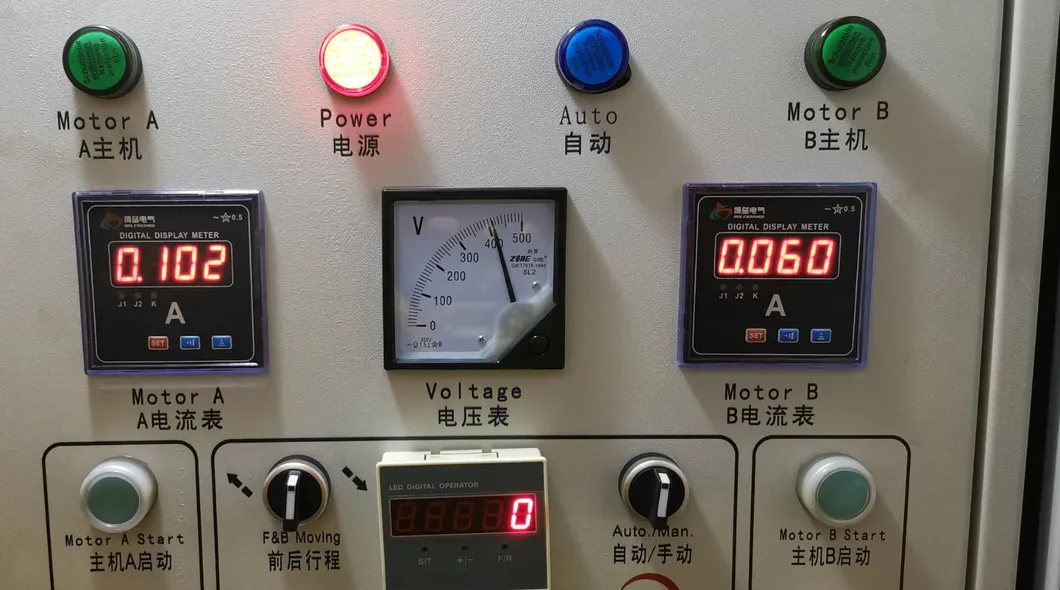

Easy-to-use control panel with branded electrical components to ensure stable and long-term performance.

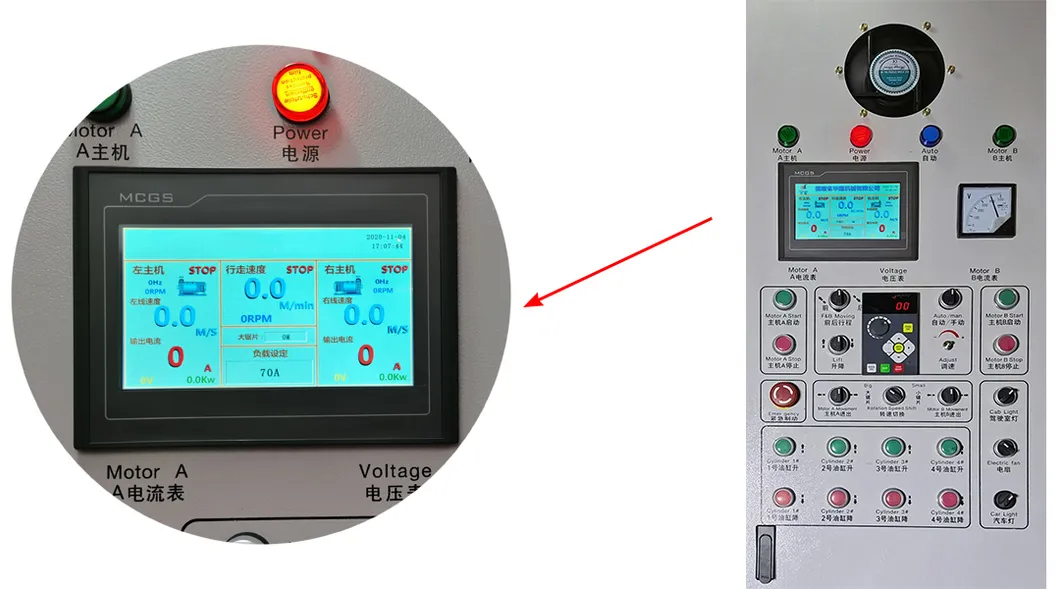

Upgraded touch screen function allows for automatic and steady adjustment of cutting speeds, reducing mechanical impact and improving mining efficiency.

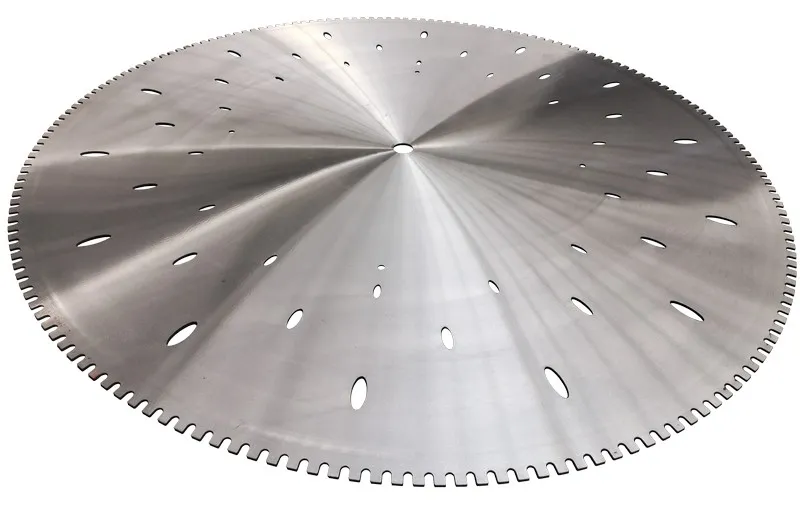

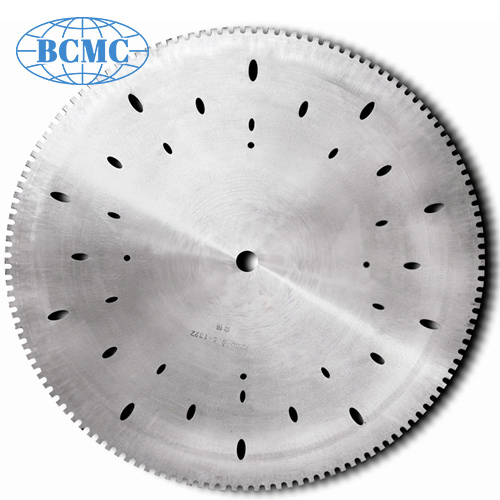

New kind of blade with holes to reduce weight, improve water cooling, and facilitate slag discharge. Sustainable and durable design.
Quality Assurance: Strictly conforming to ISO9001:2105 quality management system.
On-purchase Service: Many machines available for choice, customization options, and expert technical support.
After-sale Service: Quick supply of parts, troubleshooting via multiple channels, and on-site installation/operation training.

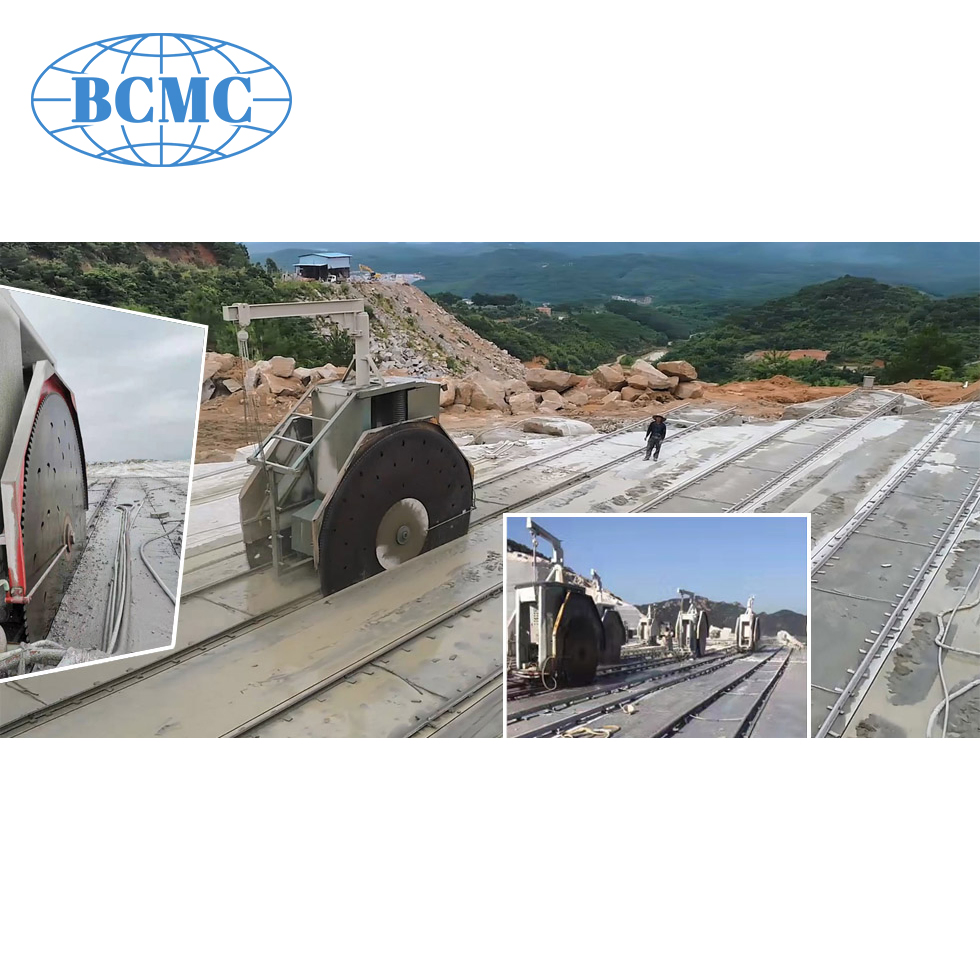

This machine is designed for mining granite, marble, quartz, and ceramics at quarries with high efficiency.
The dual blade design combined with 4-shaft transmission allows for faster cutting speeds and more stable operation, increasing productivity by over 10% compared to traditional models.
Yes, by utilizing permanent magnet motors and frequency converters, the machine offers a 10-15% energy saving over the 2QYKT series.
The machine features an automatic lubrication system and fully enclosed pillars to protect moving parts from the environment, significantly reducing daily maintenance needs.
Yes, the main motor speed can be regulated via a frequency converter, allowing operators to adjust the speed based on the hardness of the stone being cut.
The machine is built with a stable structure to eliminate vibration and features enclosed protection for moving systems, ensuring a safer and more stable working environment.
