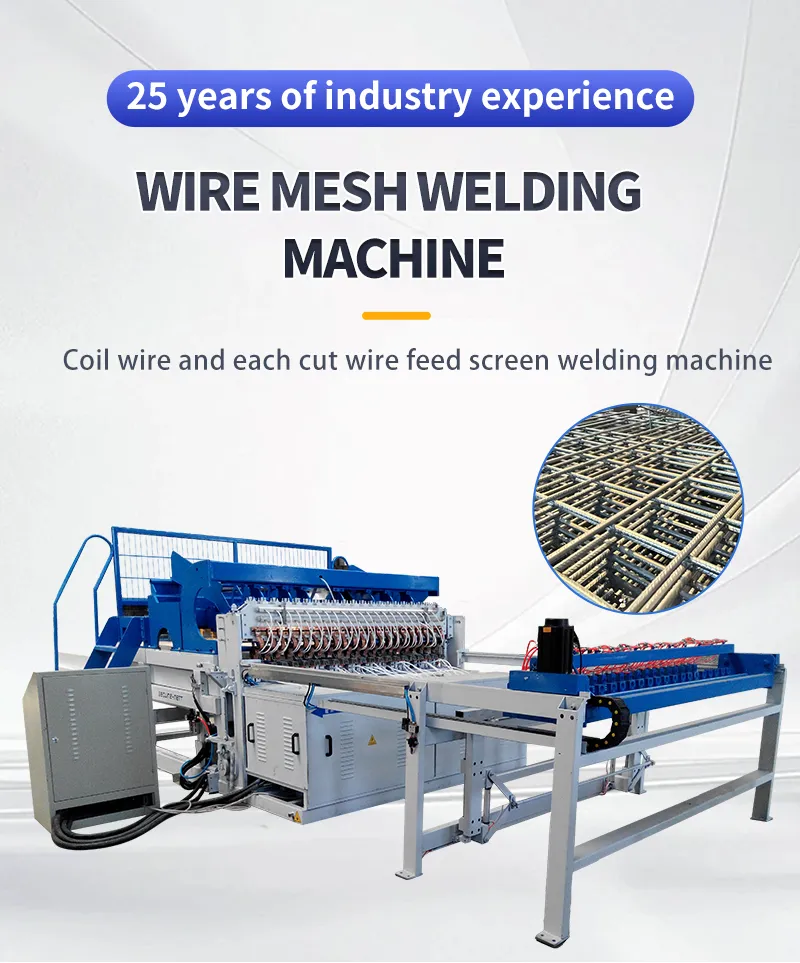

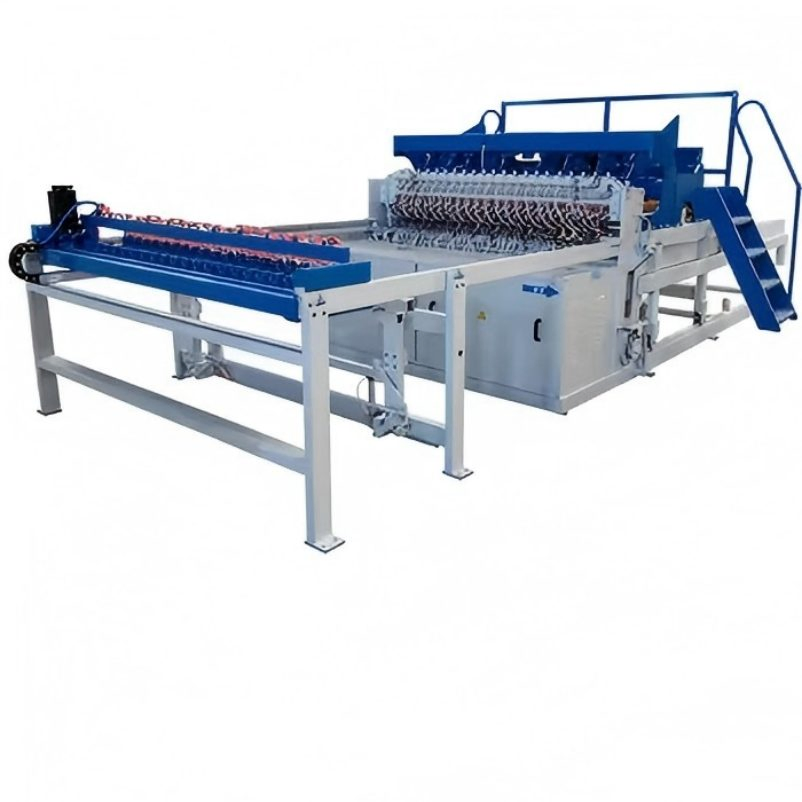

The welded wire mesh machine adopts numerical control synchronous control technology. Both the welding time and the individual control welding time are composed of a PLC digital programming system. The input panels are either touch screens or keyboards, making the operation more intelligent and rational. The steel mesh welding machine conducts one-time pressing and multi-step welding. The greatest advantage of this control is that it can produce over 30 different sizes of mesh holes between the warp and weft on the same mesh surface.
The welding adopts a new type of highly efficient water-cooled welding transformer, which expands the range of welding wire diameters. The net pulling is controlled by a servo motor, which not only improves the accuracy of the grid but also ensures the adjustability of the distance between the weft wires.
✔

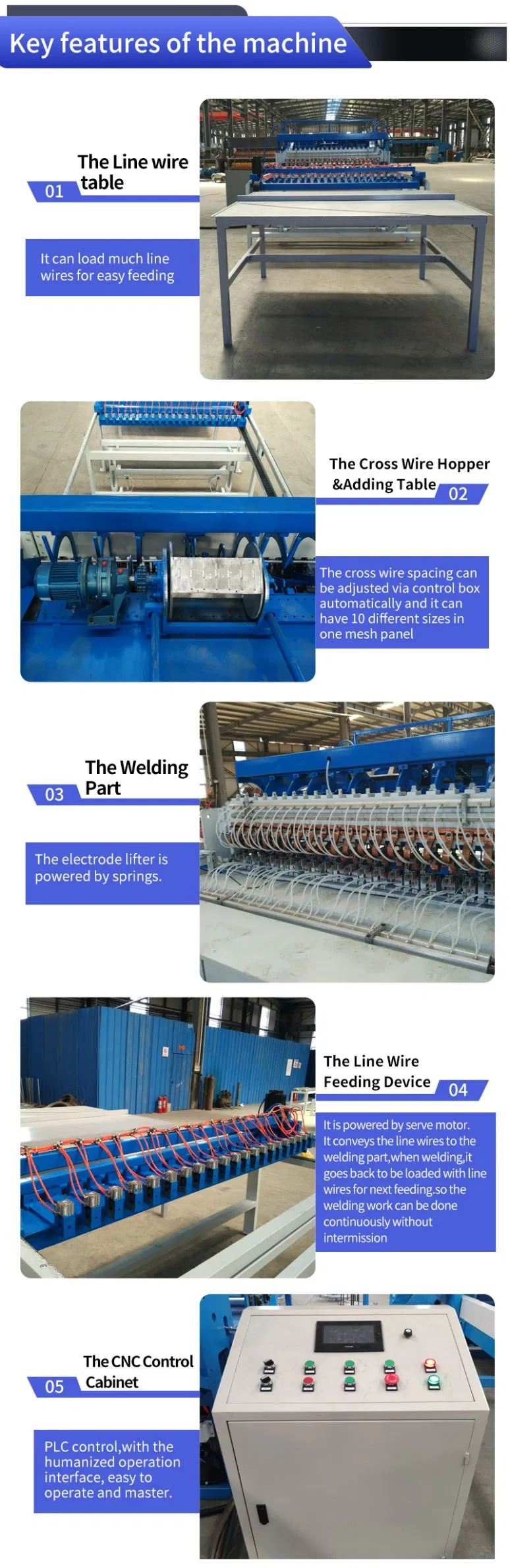

Key Features
Mesh size is directly set on the touch screen, convenient and simple.
Vibration device added to cross wire feeding to prevent winding.
Automatic line wire feeding with pre-straightening and cutting.
Cross wire adjustment on screen via PLC interface.
Adjustable welding current for different wire diameters.
Automatic output setting and machine stop function.
▶
Machine Advantages

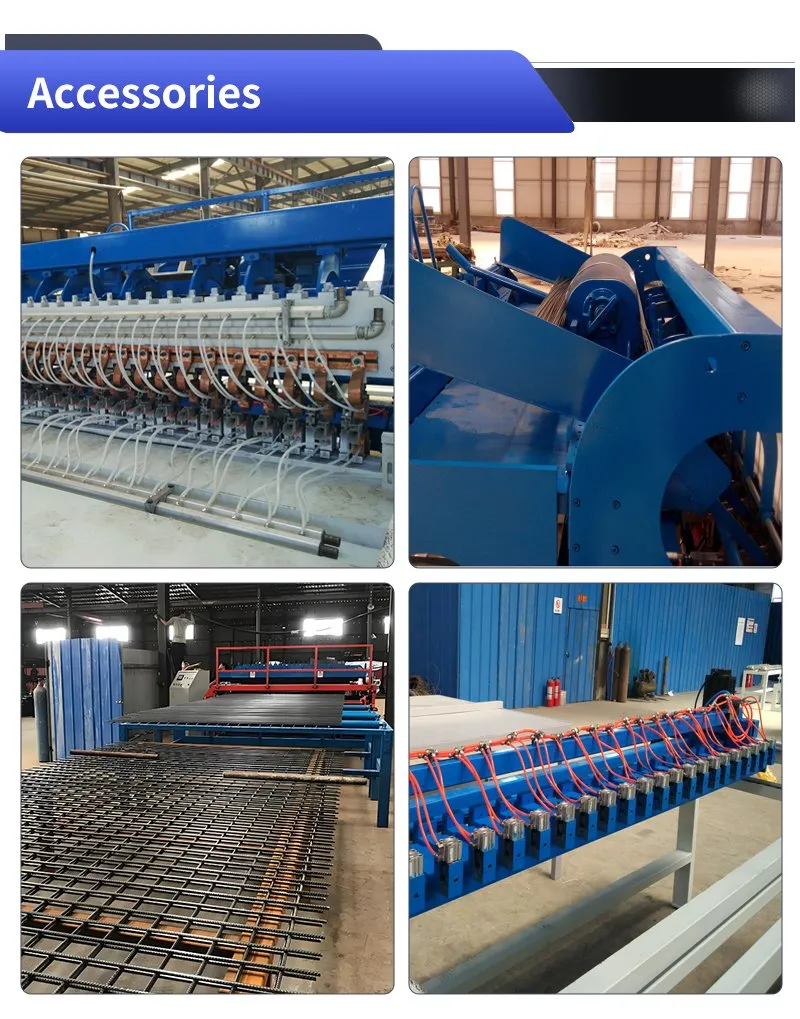

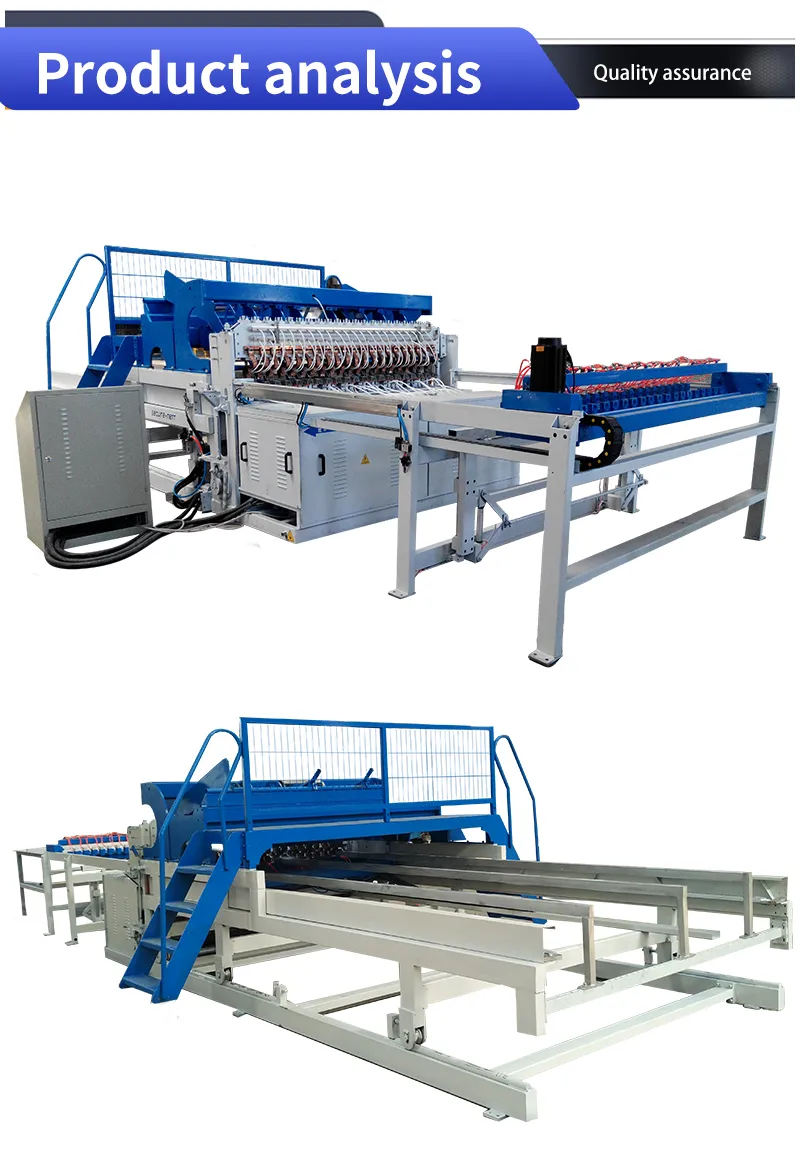

Machine Base: Use superior H section steel to connect, ensuring the installation levelness and machine precision. Automatic Feeding: Automatic separation and feeding form distributes wires quickly and evenly to welding electrodes, eliminating manual placement and reducing labor costs. Welding Host: Uses special resistance transformers and forced cylinders to ensure joint strength and high-speed operation.
📋
Technical Specifications
Model
TZ1500
TZ2100
TZ2500
Number of electrodes
16
22
26
Max.mesh width
110
165
220
Wire diameter
0.8–1.2
1.2–1.8
1.8–2.5
Product length
6.2
7.5
8.8
Cross wire space
9.5
11.2
13.6
Electric capacity
650KVA
950KVA
1250KVA
Work speed
30-50 times/min
Control system
PLC programmable controller
⚙
After Sales & Profile
Standard Warranty: 12 months. Global Support: 24/7 technical assistance and spare parts supply.

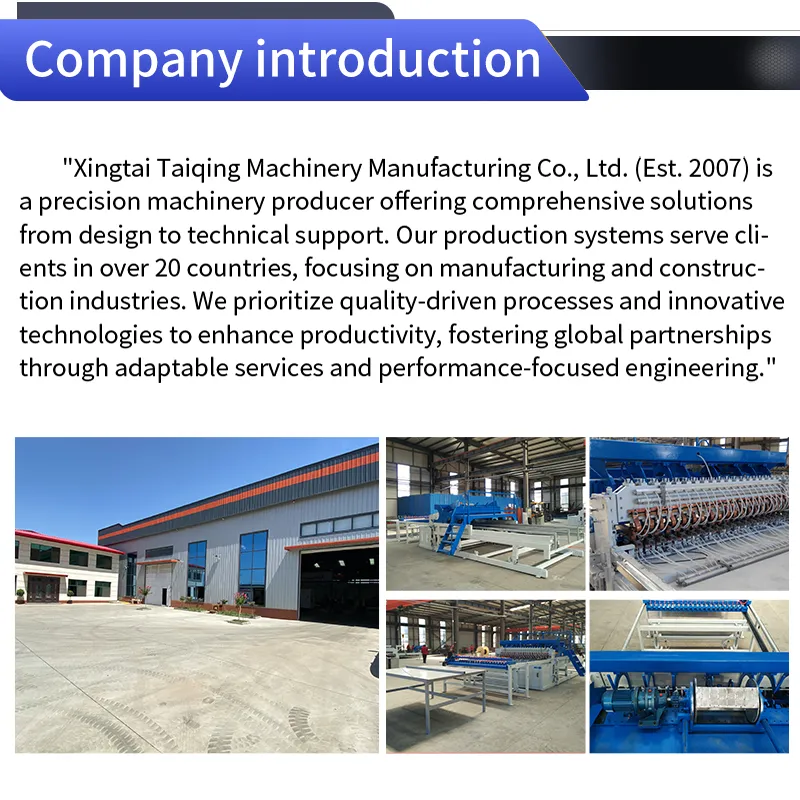

Our manufacturing facility is certified with ISO 9001, CE, and GOST, exporting to 50+ countries with strict quality control.
?
Frequently Asked Questions
What is the warranty period for the machine?
We provide a 12-month standard warranty starting from the date of installation, along with 24/7 global technical support.
Can the machine handle different wire diameters?
Yes, the machine features adjustable welding current and uses a high-efficiency water-cooled transformer to handle various wire diameters effectively.
How is the mesh size adjusted?
The mesh size can be directly set via the PLC touch screen control panel, allowing for over 30 different grid sizes on the same surface.
What control system does the machine use?
The machine is equipped with a high-precision PLC digital programming system and a user-friendly touch screen interface.

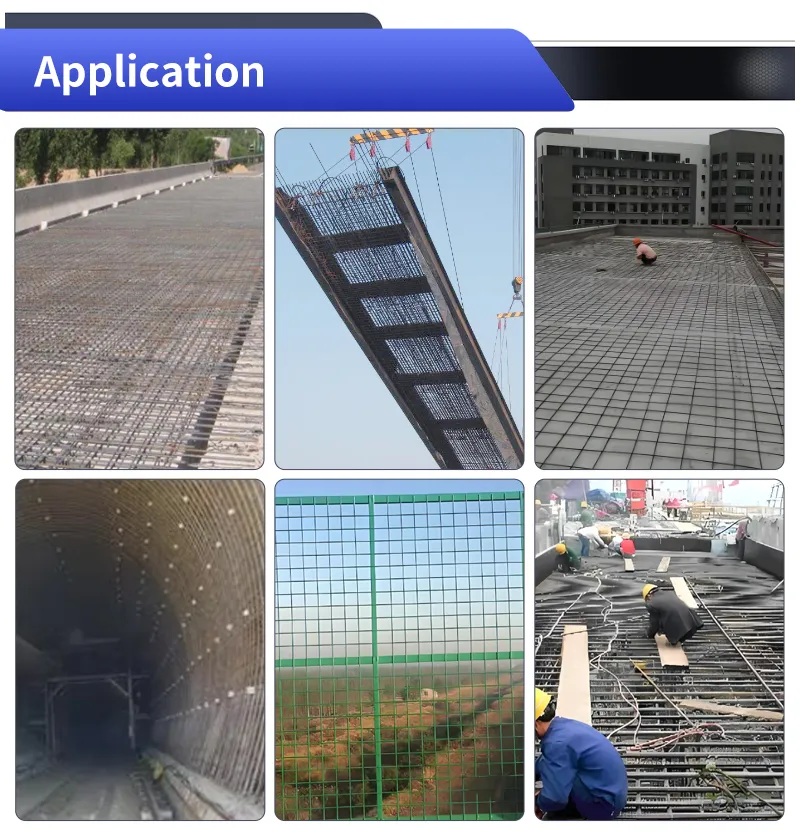

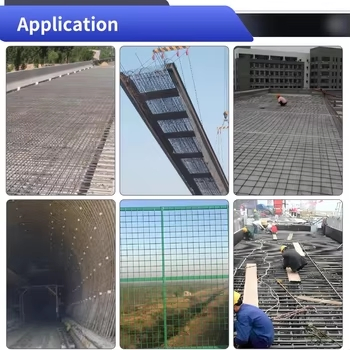

What are the main applications of the produced mesh?
The welded mesh is ideal for construction floor slabs, bridges, airports, tunnels, and various concrete reinforcement projects.
Is the wire feeding automatic?
Yes, it includes an automatic line wire feeding system and a cross-wire feeding system with a vibration device to prevent entanglement.
