Customization: Available
After-sales Service: Engineer Go to Buyer's Factory Install Machine
Type: Gabion Mesh Machine
Send Inquiry

Product Description

Overview
Gabion Mesh Machine
  • More than 25 years' experience in machinery manufacturing
  • Machine adopts advanced European design & techniques
  • Complete technical support system for efficient operation
  • Certified with ISO 9001 and CE standards
  • Comprehensive documentation: manual operation, electric drawing, machine layout, and installation videos
Technical Parameters

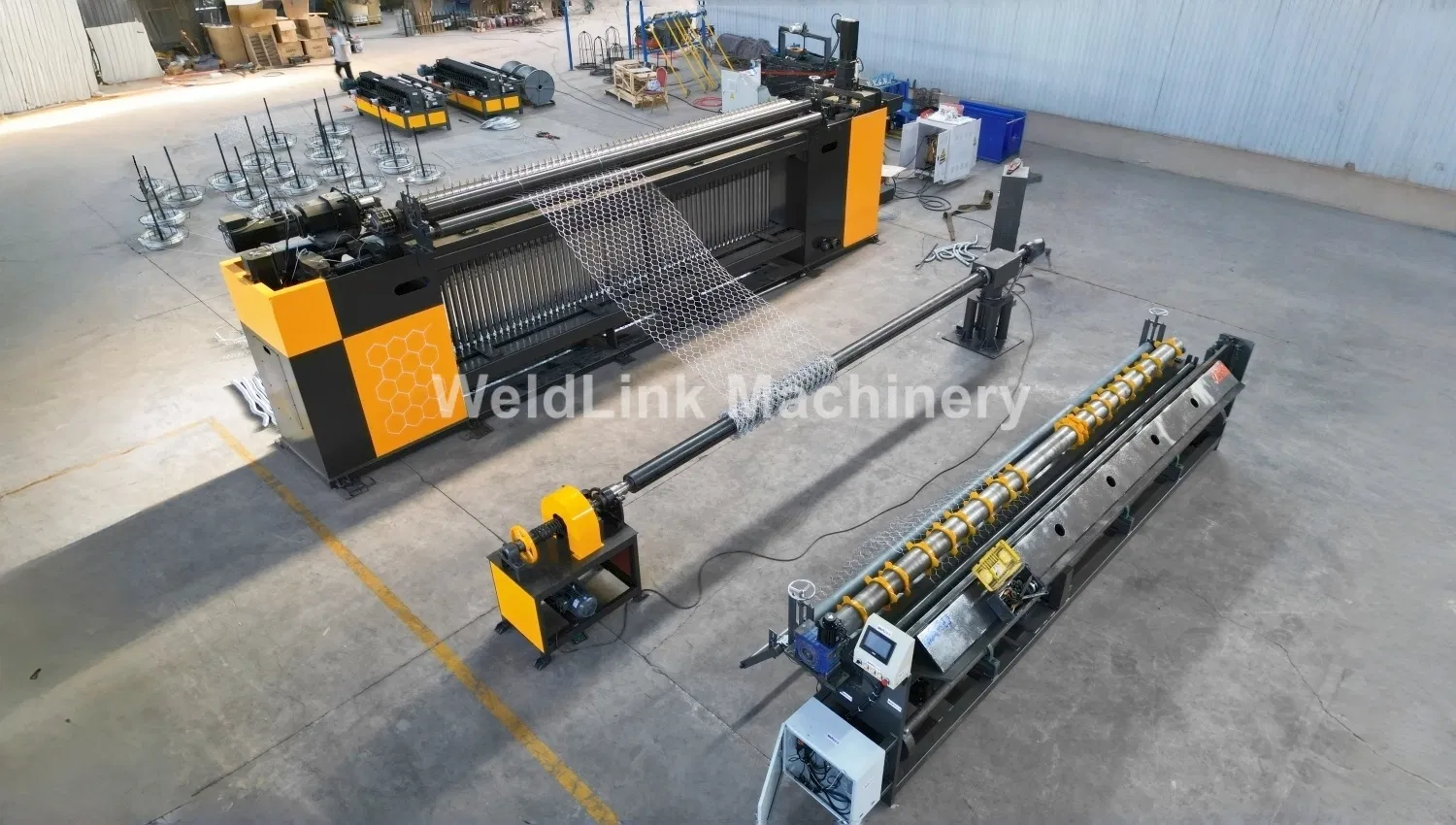

CNC Gabion Machine
CNC Gabion Machine

The CNC gabion machine is highly favored for its simple operation and ultra-high output, reaching approximately 10,000-12,000 square meters per 10 hours.

ModelDP-LNWL-5300H
Wire Diameter1.5-4.0mm
Mesh Opening Size60*80mm, 70*90mm, 80*100mm, 100*120mm, 120*140mm etc.
Mesh WidthMax. 5300mm
Working Speed3 or 5 (adjustable via touch screen)
Twist Type3 twist (30-55mm adj.) or 5 twist (45-70mm adj.)
Motor Capacity22kw + 15kw + 11kw + 0.75kw
Production Capacity10000-12000 m²/10 hours
Dimensions10 * 1.8 * 3.5 M
Weight16T
VoltageAs per requirement
Machine Details

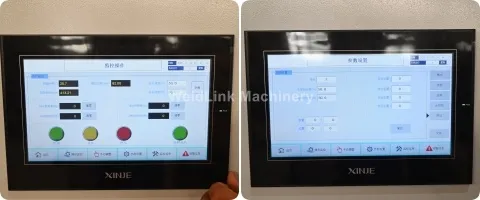

CNC Touch Screen
CNC Touch Screen Control

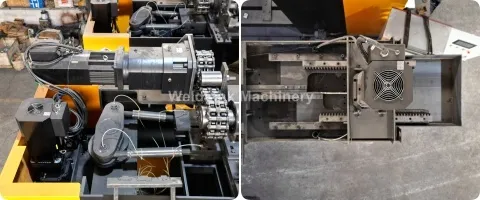

Servo Motor
Servo Motor Control

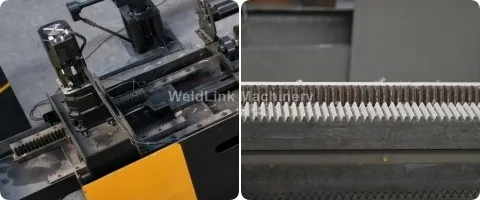

Gear Rack
Big Gear Rack Driving

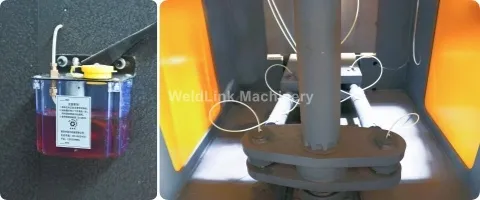

Lubrication System
Automatic Lubrication System

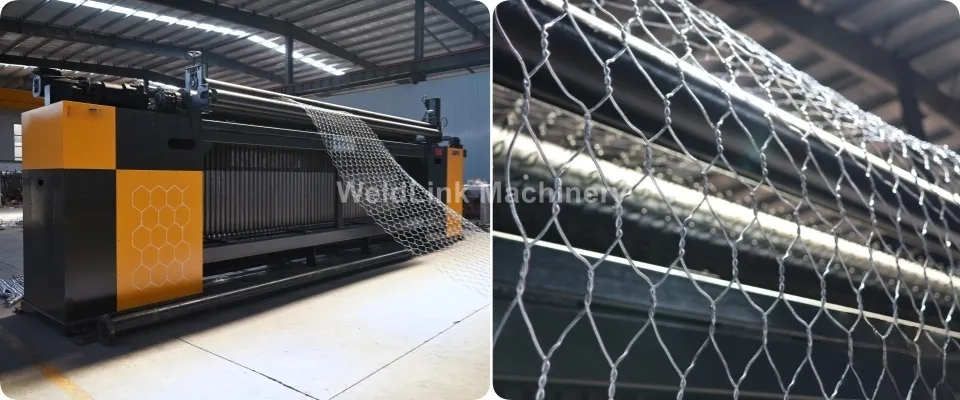

Easy Operation
Easy Operation Design
  • CNC System: Twist number and length set directly on the touch screen.
  • Servo Control: Three servo motors manage machine parts independently for high-speed stability.
  • High Power: Equipped with 4 racks for big power, allowing simultaneous weaving of multiple nets.
  • Maintenance: Automatic oiling device with 0.75kw motor for continuous lubrication.
Auxiliary Equipment

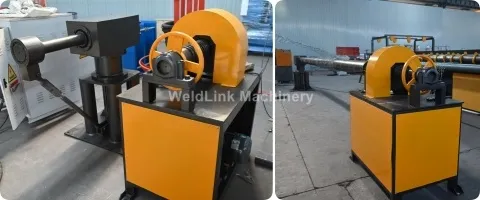

Mesh Rolling Machine
Mesh Rolling Machine

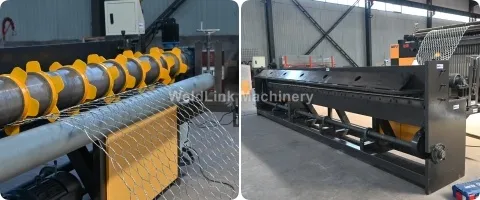

Mesh Cutting Machine
Mesh Cutting Machine

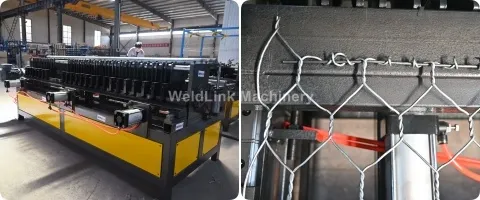

Border reinforcement
Border Reinforcement Machine

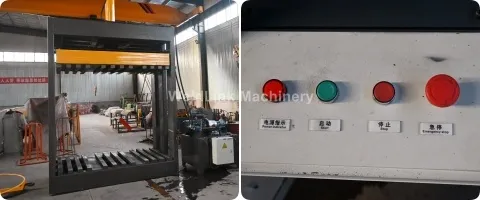

Hydraulic Pressing
Hydraulic Pressing Machine

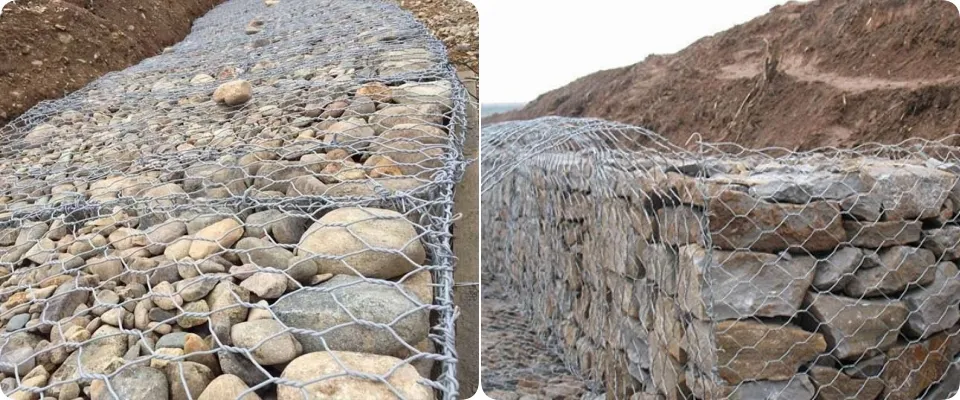

Finished Product & Applications
Gabion Mesh Applications

Gabion mesh is a essential wirework container filled with rock, concrete, or sand. It is widely used in civil engineering, road construction, river bank protection, and infrastructure security applications.

Manufacturing & Support

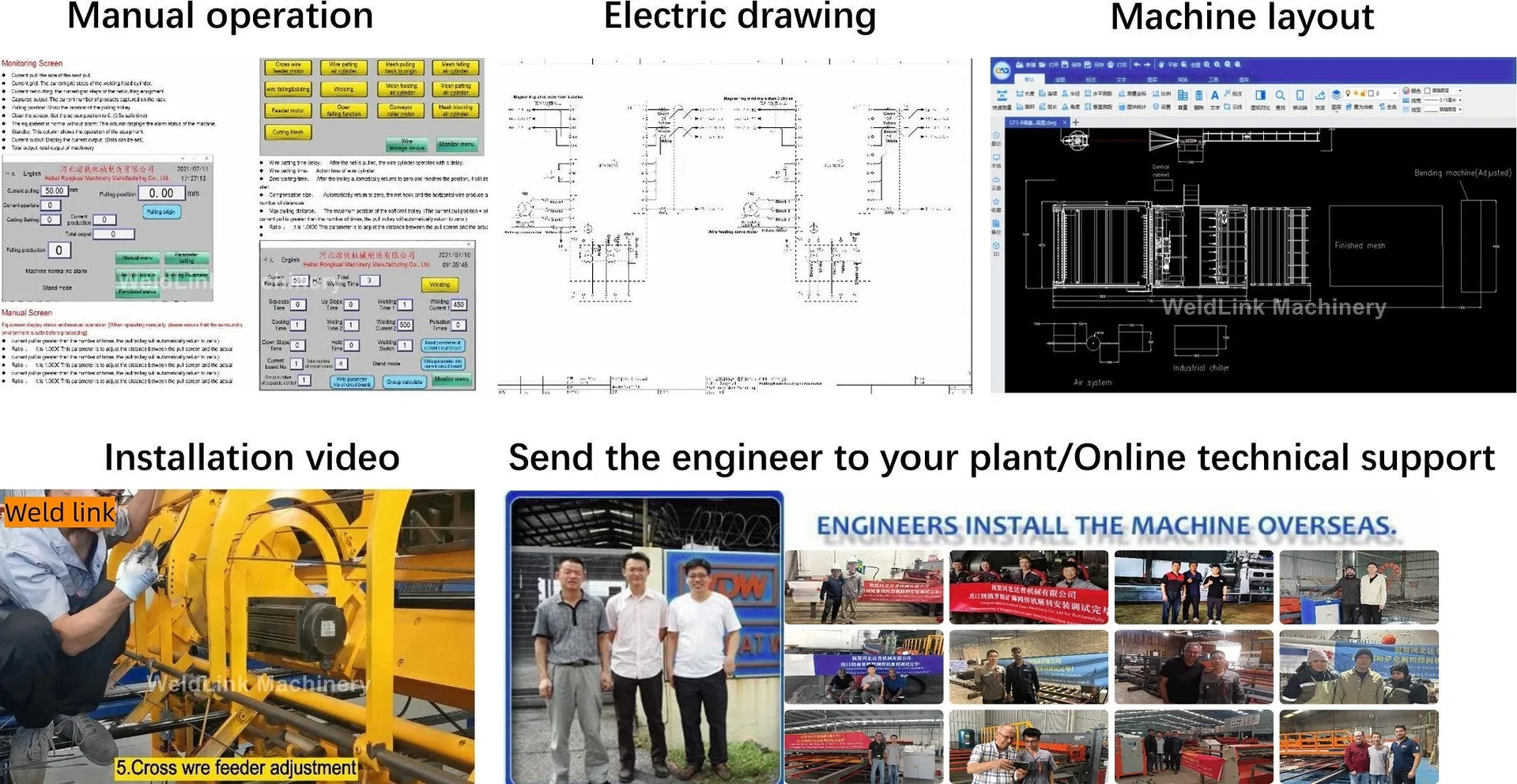

After Sales Service
After Sales Service Support
Exhibition
Exhibitions and Plant Visits

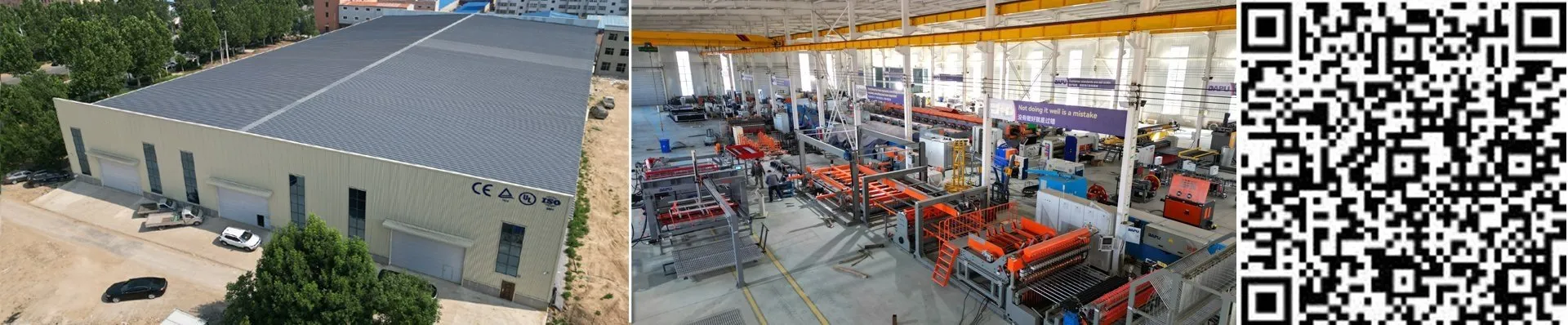

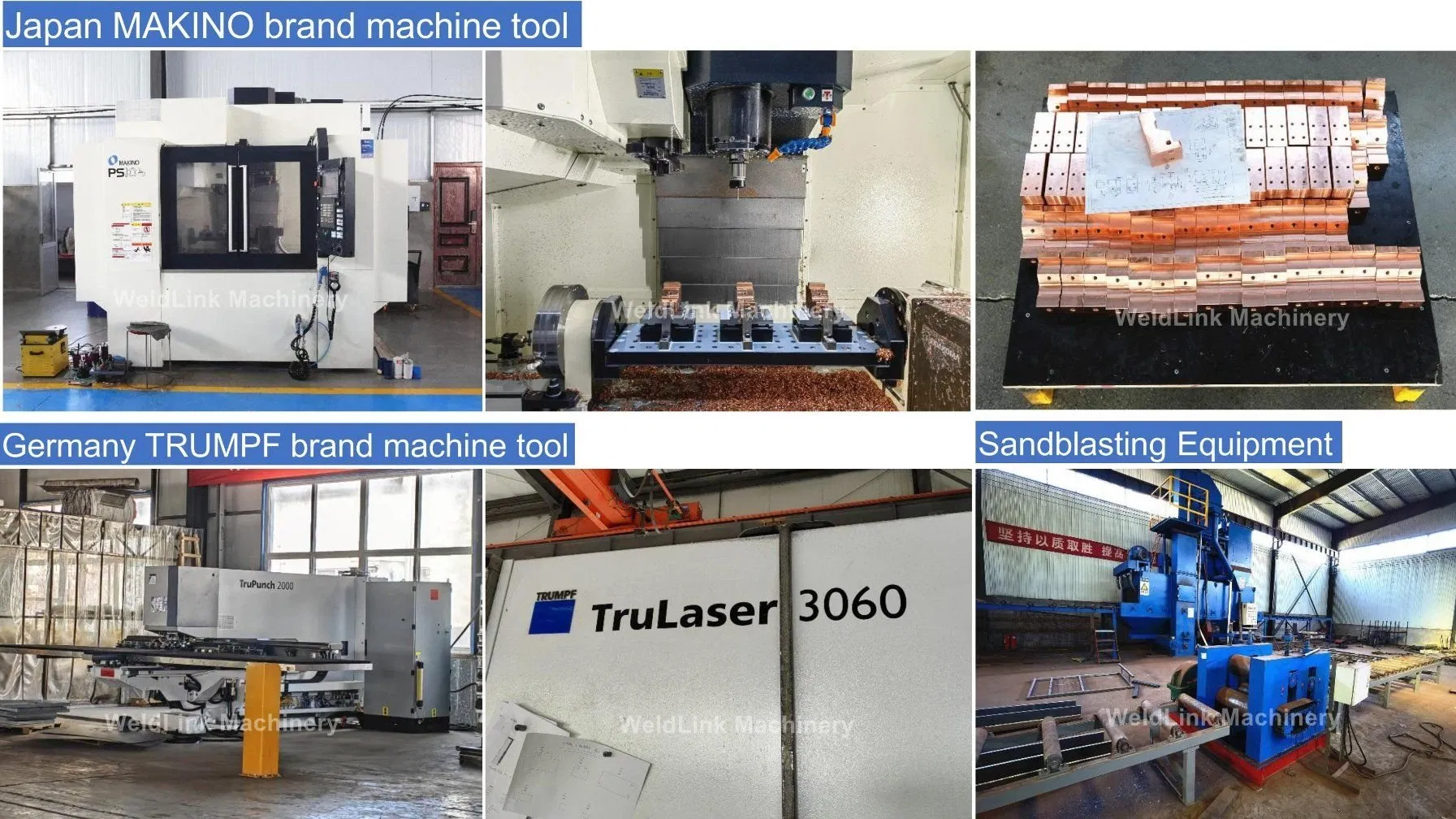

Manufacturing Unit
Advanced Manufacturing Unit
Frequently Asked Questions
What is the production capacity of the CNC Gabion Machine?
The machine features ultra-high output, producing approximately 10,000 to 12,000 square meters of mesh per 10-hour shift.
What range of wire diameters can the machine handle?
Our equipment supports wire diameters ranging from 1.5mm up to 4.0mm.
What types of raw materials are compatible?
The machine is designed to weave galvanized wire and PVC coated wire efficiently.
Is the twist number adjustable?
Yes, the machine supports both 3-twist and 5-twist configurations, which can be easily set via the CNC touch screen.
What is the maximum mesh width available?
The maximum mesh width supported by the DP-LNWL-5300H model is 5300mm.
Does the machine require highly skilled labor?
No, the CNC system and intuitive touch screen interface make the machine easy to operate, requiring less specialized skill from workers.
