Affordable 3-Layer Blown Film Equipment for Global Distribution

Customization:	Available
After-sales Service:	Warranty
Warranty:	1 Years

Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.

3-Layer

Type

PE Film Blowing Machine

Raw Material

Max Folding Width

1200mm

Certification

CE, ISO9001:2008

Production Capacity

220-280kg/H

After-Sales Service

Video Technical Support

Warranty Period

1 Years

⚙️

Product Description

Product Application: The production line of 3-layer co-extrusion blown film machines is designed for a wide range of general packaging films. It is highly effective for producing symmetrical film, including liquid packaging film, shrink/stretch film, electrostatic protection film, waterproof film for ponds, and heavy packaging film.

Model	SGII-3L1000	SGII-3L1200	SGII-3L1500	SGII-3L2000
Suitable Material	HDPE / LDPE / LLDPE / EVA
Film Width	1000 mm	1200 mm	1500 mm	2000 mm
Film Thickness	0.002 - 0.2 mm
Max. Output	180kg / h	220kg / h	280kg / h	350kg / h
Extruder Details
Screw Diameter	50mm; 55mm	55mm; 60mm	60mm; 65mm	65mm; 75mm
Main Motor Power	22kw 2 ; 30kw 1	30kw 2 ; 37kw 1	37kw 2 ; 45kw 1	37kw 2 ; 55kw 1
Die Head Type	Three layers with inner cooling device
Air Ring	Double lips air ring
Voltage	380V, 50Hz
Weight	About 9 T	About 12 T	About 13 T	About 15 T

📸

Detailed Photos

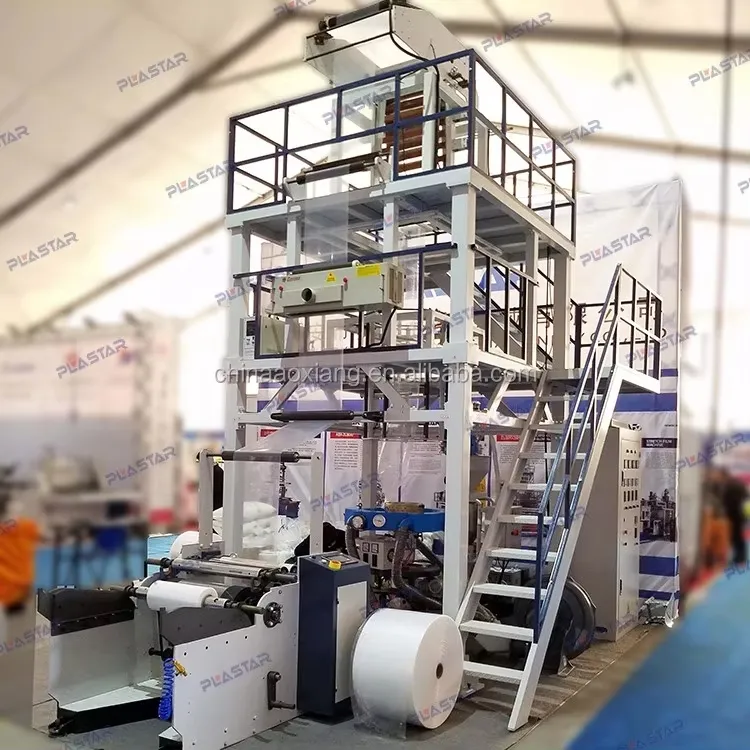

MAIN EXTRUDER
Components: Main motor, Gear box, Screw, Screen changer, Die head.
Technology: Advanced die head technology ensures superior film quality and stable material control.

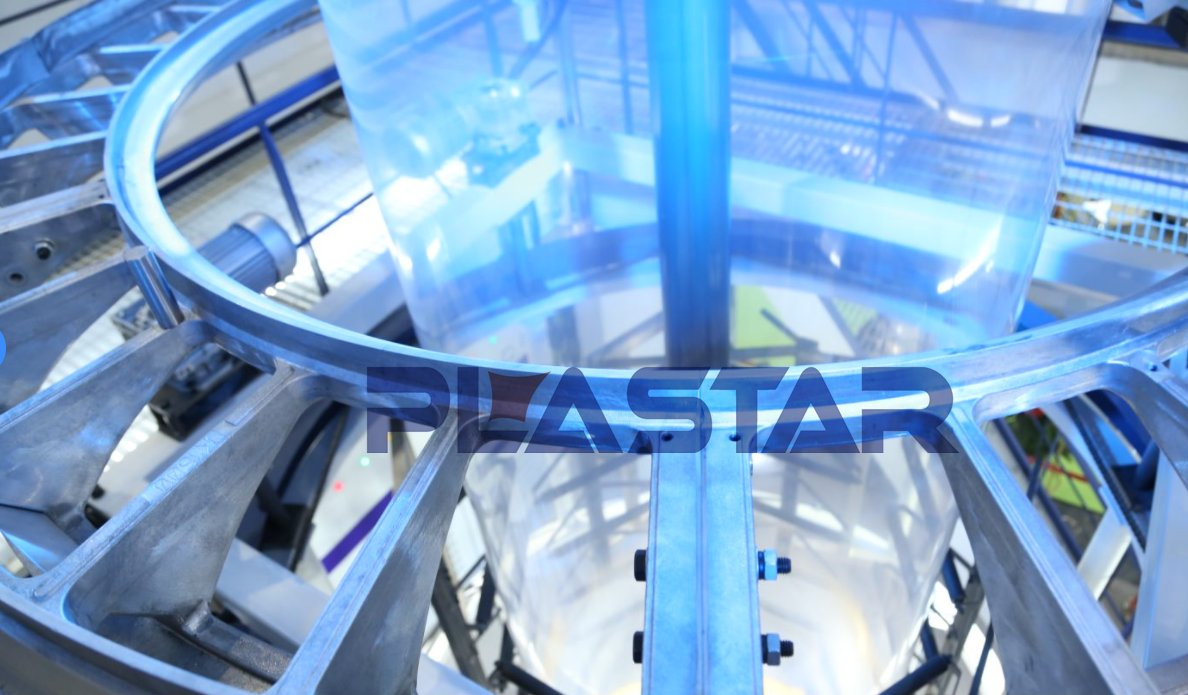

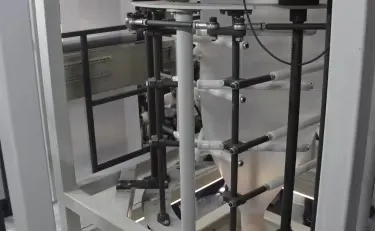

BUBBLE STABILIZING FRAME
Structure: Circle type.
Adjustment: Manual adjustment for precision control during the blowing process.

✔ Simple structure with automatic device, easy installation, and maintenance.

✔ High output and stable running machine, max output: 50kg/h.

✔ Capability to produce ultra-thin films down to 0.006mm thickness using virgin material.

✔ Loss-in-weight gravimetric system for precise extruding output and thickness control.

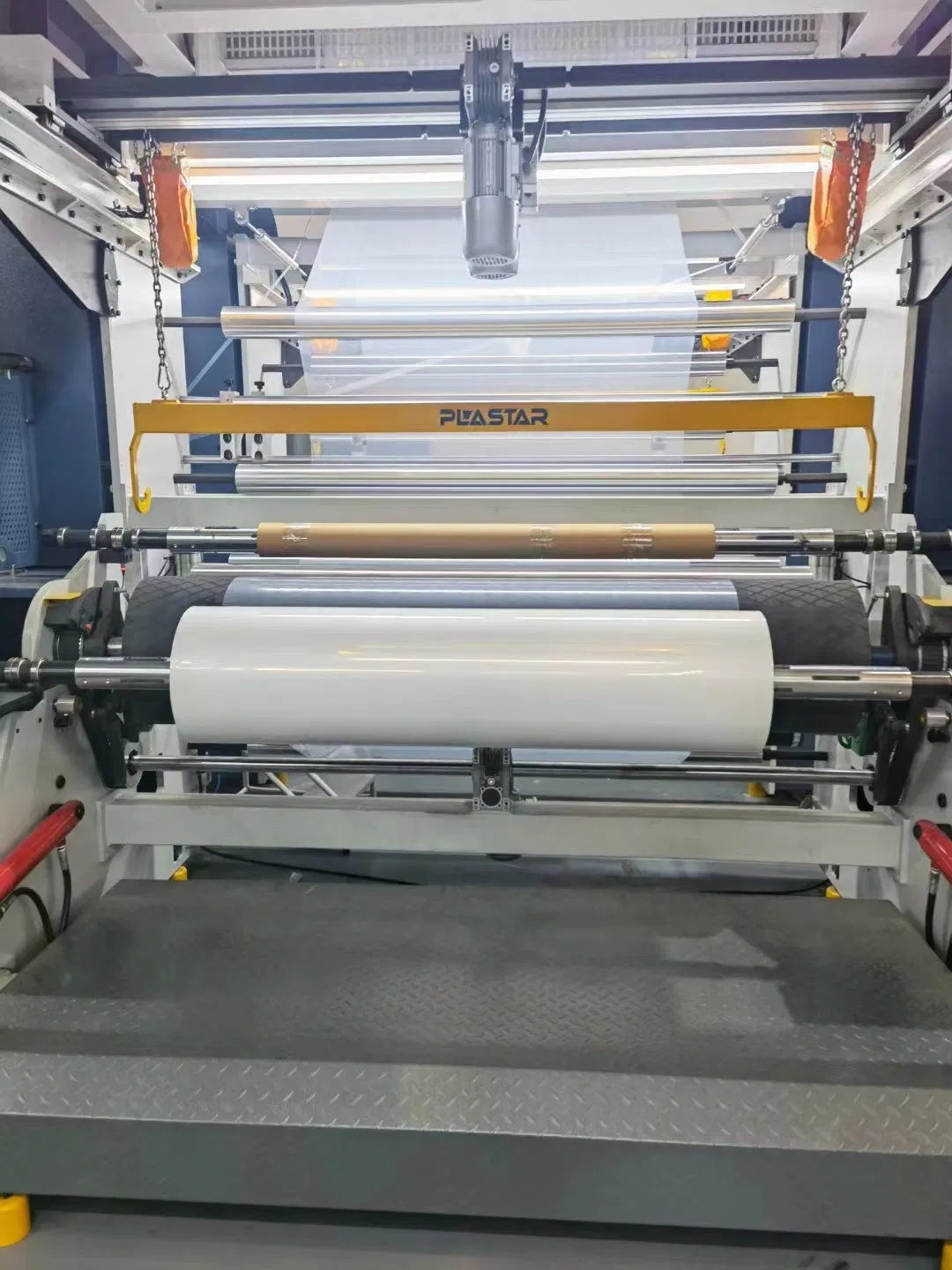

✔ Robust winding roller capable of handling heavy film rollers up to 1100mm diameter.

✔ Easy-change film roller design for efficient operation and cutting.

🏢

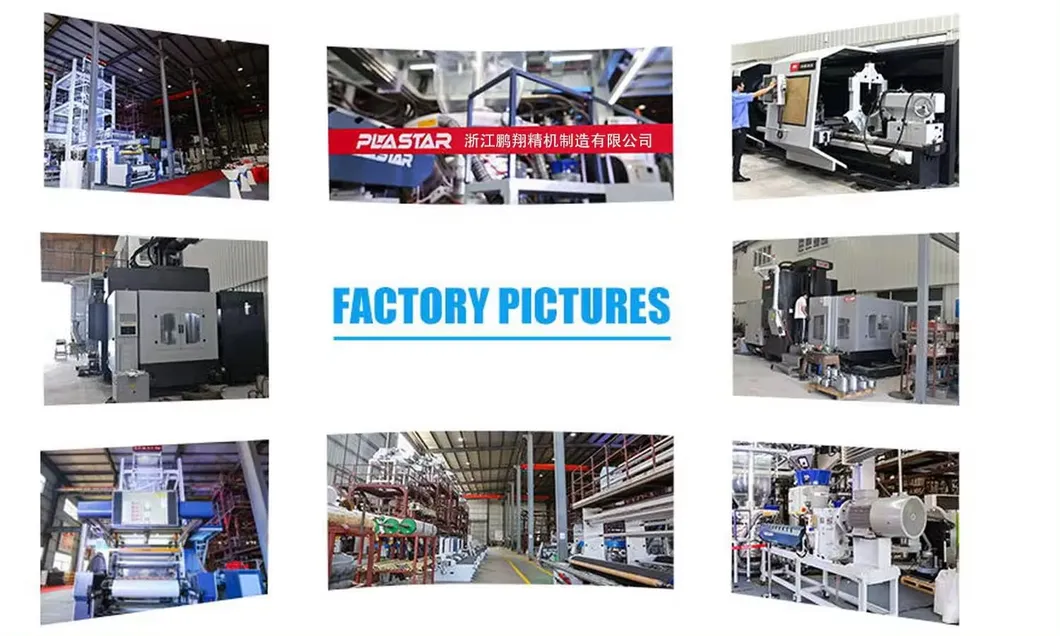

Visual Display

📜

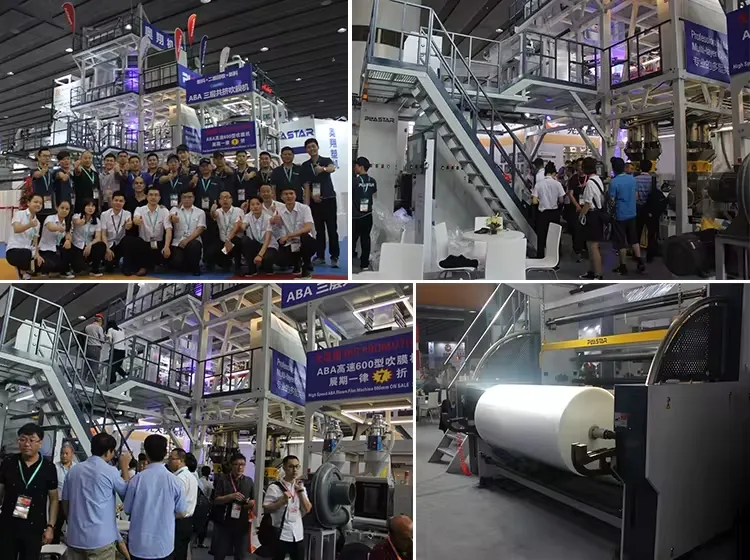

Certifications & Exhibition

📦

Packaging & Shipping

❓

Frequently Asked Questions

Q1. Why should I buy from your factory?

We are a professional blown film machine manufacturer with extensive experience. We ensure strict quality control and reliability, and we operate our own CNC center for precision manufacturing of key parts like die heads.

Q2. What certifications do the machines hold?

Our production process implements the ISO9001:2015 quality management system. The machines have passed TUV certification, Swiss SGS certification, and EU safety CE certification, meeting international safety requirements.

Q3. What is the typical delivery time for these machines?

Production usually takes between 30 to 60 working days, depending on the specific model size and configuration requirements.

Q4. What is the warranty period?

All machines come with a one-year warranty starting from the date of commissioning at the customer's site. We provide a full warranty for the whole machine, excluding consumables.

Q5. How is after-sales technical support handled?

We provide remote video communication to resolve technical issues. If a problem cannot be solved remotely, we can dispatch engineers to your facility. Parts under warranty are replaced free of charge.

Q6. What are the accepted payment methods?

Production begins upon receipt of a 30% deposit. The remaining 70% balance is required after production is completed and before the shipment is arranged.
