Advanced FRP Mesh Manufacturing Equipment for Global Distribution

Customization:	Available
After-sales Service:	1 Years
Warranty:	2 Years

Send Inquiry

Product Description

Basic Specifications

Model NO.

customized

Product Type

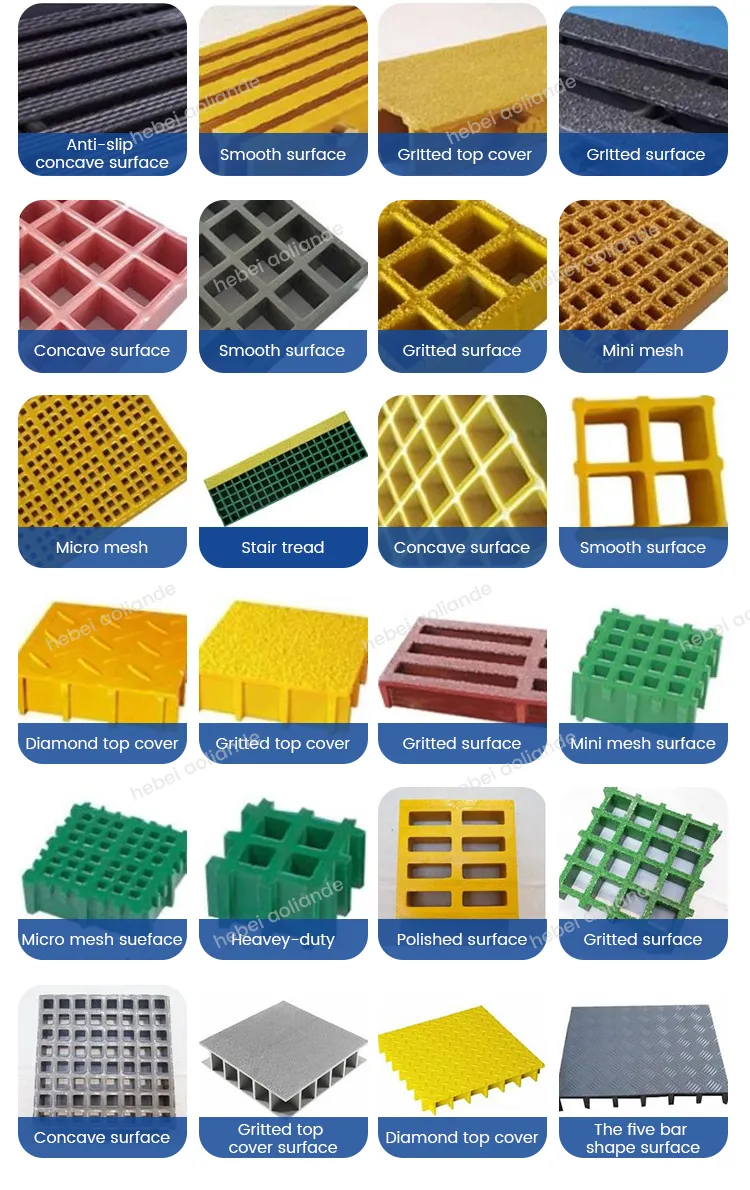

FRP Grating

Screw

Multi-Screw

Automation

Automatic

Computerized

Certification

CE, ISO9001:2008

Panel Size

1000*4000/1220*3660mm

Product Name

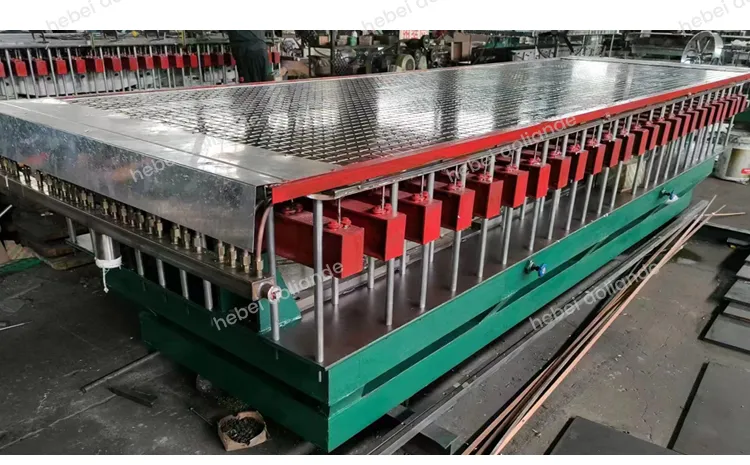

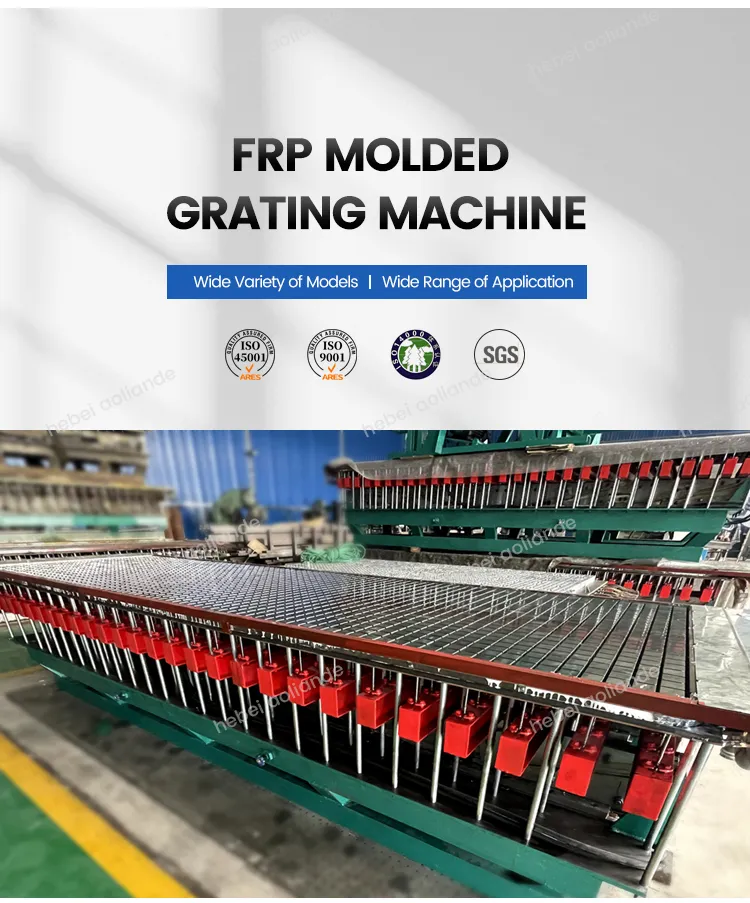

FRP Grating Machine

Machinery Test

Support

HS Code

8477800000

Capacity

10000sets/Year

📦

Packaging & Delivery

Package Size

3000.00cm * 1800.00cm * 1800.00cm

Gross Weight

2000.000kg

Standard

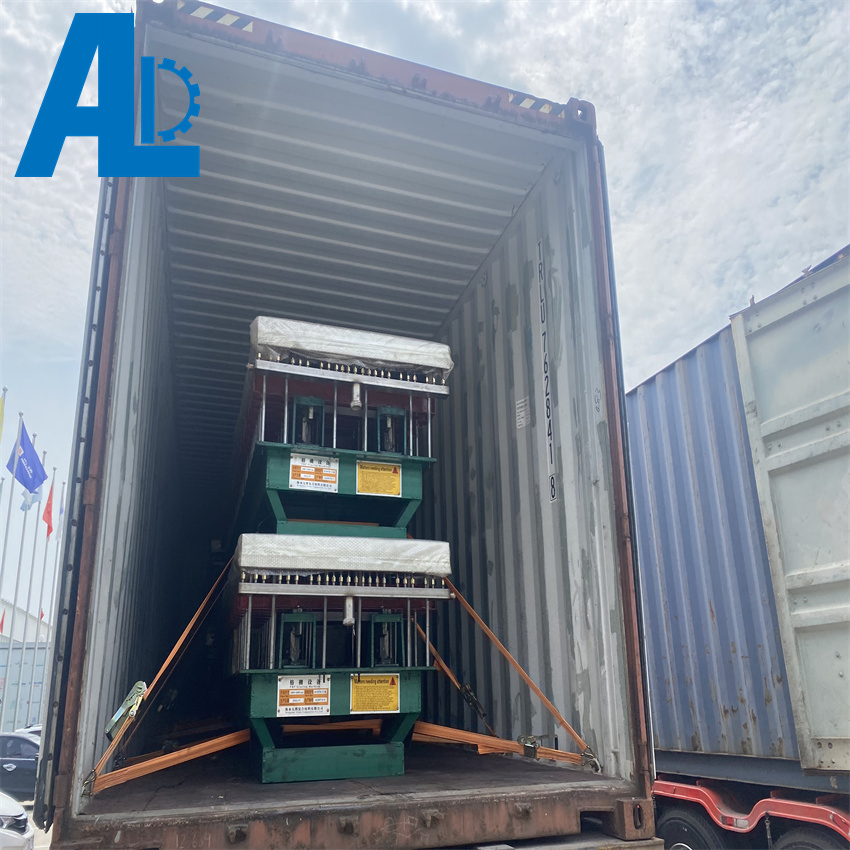

Export Packaging

★

Product Description

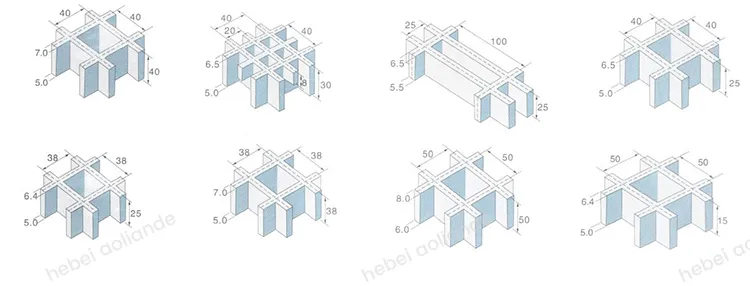

No.	Mesh Size(mm)	Panel Size(mm)	Module(mm)
1	38x38	1220x3660x38	38.5-41
2	38x38	1220x3660x30	30.5-32
3	38x38	1220x3660x25	25.5-27
4	50x50	1220x3660x50	50.5-52
5	38x38	1000x4038x38	38.5-41
Remarks: The size can be customized according to requirements.

Plant Facilities Requirements

Min plant space: Length 6m, Width 3m (single grating mold).
Power Supply: AC380V ± 5% 50Hz, 3phase (Customizable).
Rated Power: 4KW; Accessory: 10KW.
Production Effective: 2 ± 10% hours/pcs.
Cooling Tower: 30m³/h flow.
Dust extraction required during polishing.

FRP Grating Production Process

Startup checking → Pre heating → material mixing → roving → pull in resin → press with fixture → repeat → heating → Curing → Ejection → finishing

Training & Maintenance: We provide comprehensive training options. Customers can send engineers to our plant or we can deploy our experts for onsite installation and setup. During the warranty period, we provide free repairs and service for manufacturing-related quality issues.

⚙

Technical Parameters

No.	Item	Technical Parameters	Comments
1	Product size (mm)	3660×1220×38	-
2	Inner Square size (mm)	38×38×38	Mold specification

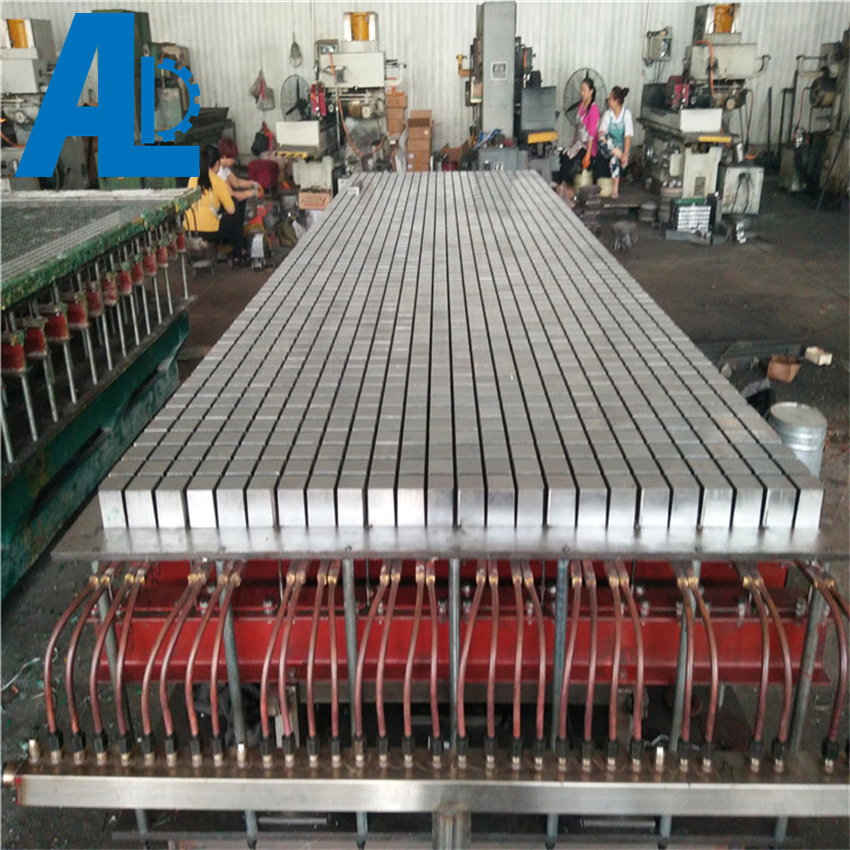

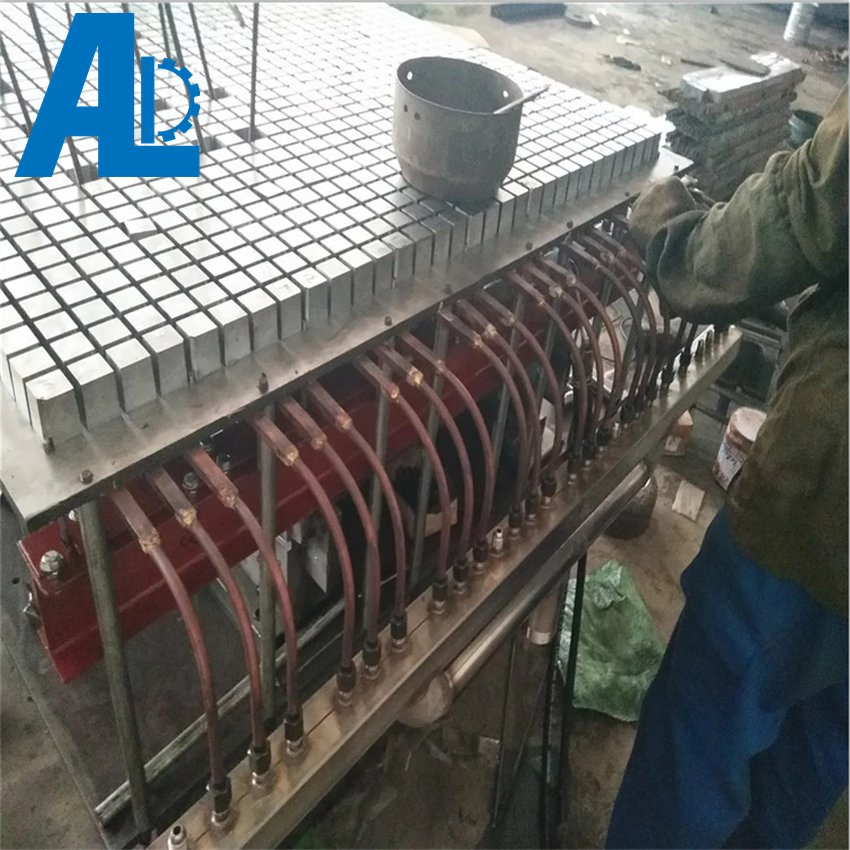

3	Block (mold) material	45# steel (14mm)	-
4	Block size (mm)	BE 33×33 / SE 31×31	BE: Big end, SE: Small end
5	Rib Thickness (mm)	Bottom: 5 / Top: 7	-
6	Plating thickness	Chromeplate 0.03-0.05mm	-

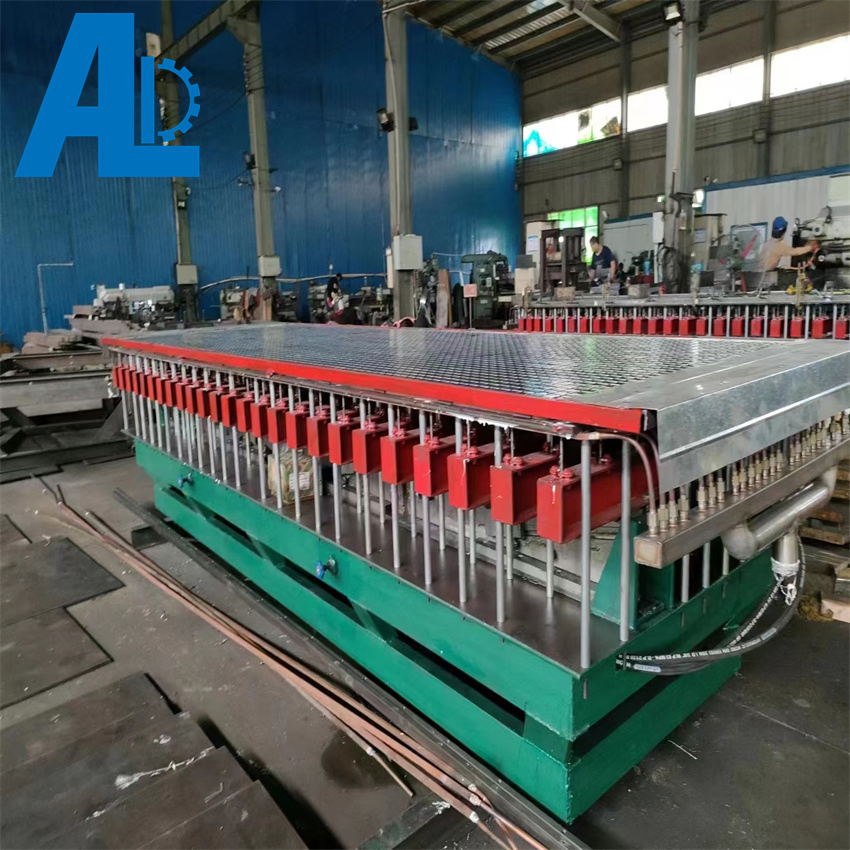

11	Machine dimension (mm)	4300×1300×900	-
13	Manufacturer speed	2pcs/hour	Includes curing time
16	Total Weight	4 Tons	-

FAQ

Are you a factory or a trading company?

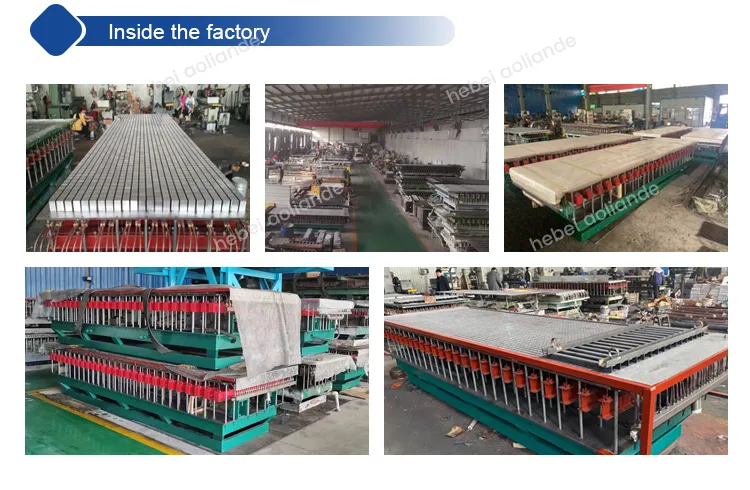

We are a factory and a professional manufacturer. We have more than 200 skilled technicians and professional equipment mold engineers for design and production.

Can you do OEM?

Yes, we can do OEM and ODM products. We can make all kinds of customized products according to your specific drawings or samples.

Can you provide technical advice?

We provide professional technical advice free of charge to help you optimize your production.

What is your production capacity?

With an annual output of 60,000 tons, we have multiple production lines to meet customer requirements for fast delivery.

What are your payment methods?

We accept TT, LC, and Credit insurance orders for your convenience.

What are your delivery terms?

We accept EXW, FOB, CNF, CIF, etc. You can choose the one that is most convenient and cost-effective for you.
