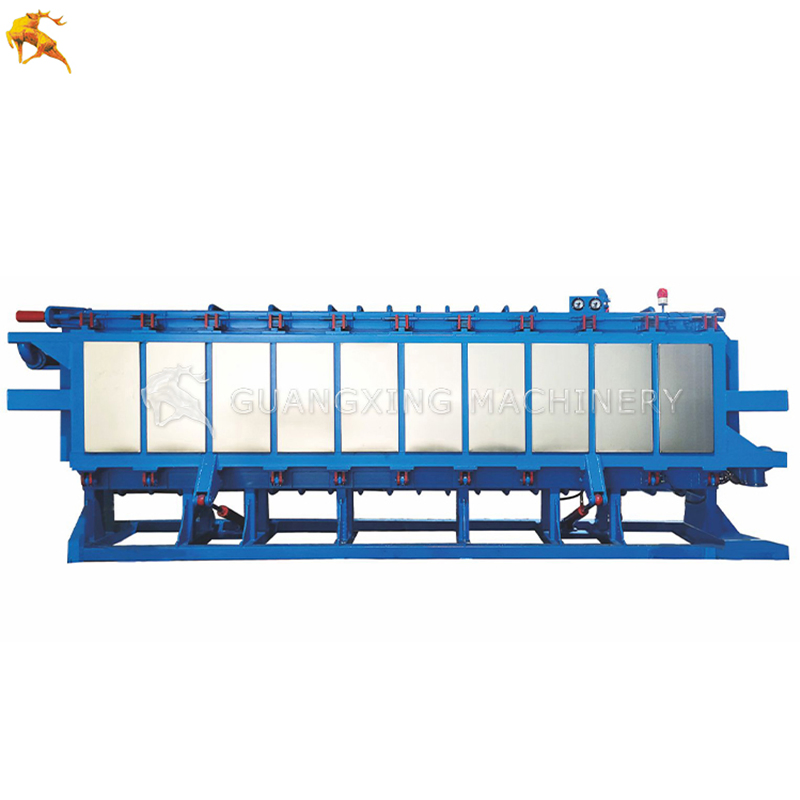

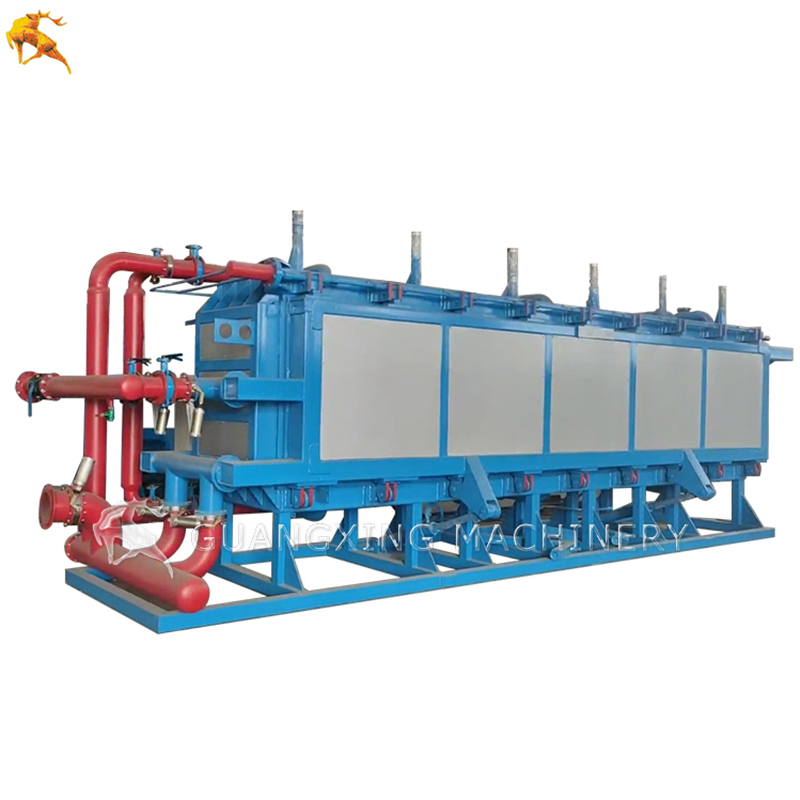

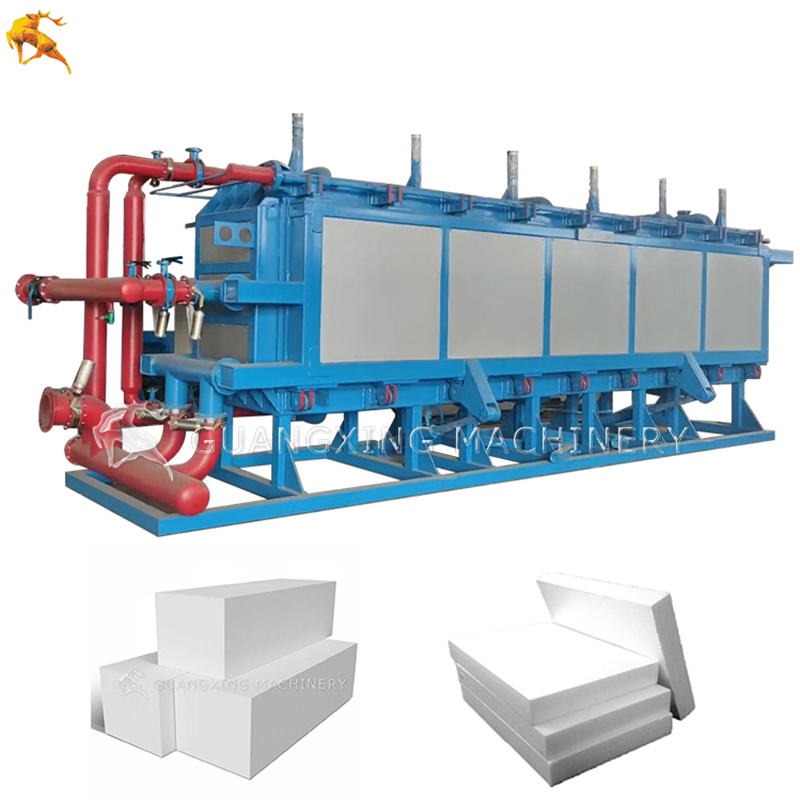

Equipped with Synchronous transmission with wide adjusting range for machine multipurpose application.
Welded by high quality profile steel with age heating treatment to ensure high strength without deformation. Can endure expansive force of high density products.
Adopted PLC Controller and Touch Screen to realize automatic circulation of mould opening/closing, feeding, heating, cooling, and demoulding.
Adopted special aluminum alloy in machine cavity, providing high thermal conductivity, good extension and long lifetime.
Using overseas advanced through heat molding technique and variable pressure blower for material feeding and cooling.
Strong penetrating power leads to good bonding effect; fast forming and low moisture content guaranteeing product consistency.

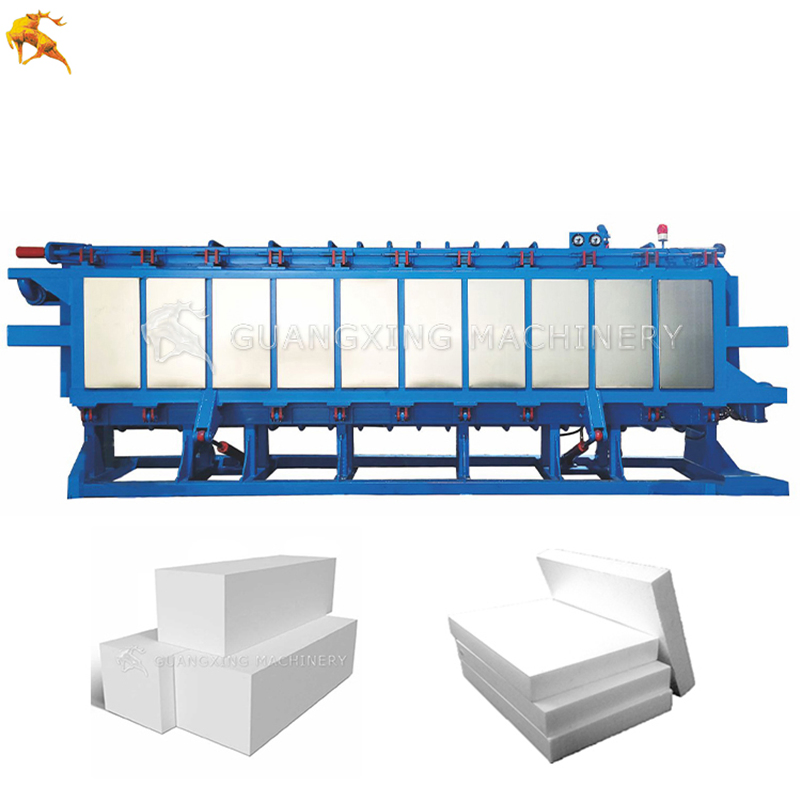

Adjustable to produce different width EPS block for EPS panel, EPS sandwich panel, and EPS foam block in different shapes.
| Item | Unit | PSB-A600 | PSB-A800 |
|---|---|---|---|
| Net Internal Size of Mould Chamber | mm | 6120x1240x630 | 8160x1250x630 |
| Adjustable Size of Mould Chamber | mm | 6120x980x630 | 8160x980x630 |
| Volume of Mould Chamber | m³ | 3.77-4.78 | 5.0-6.37 |
| Product Density/Specific Weight | Kg/m³ | 4.5-30 | 4.5-30 |
| Production Efficiency | Piece/h | 6-10 | 6-10 |
| Steam Pressure | Mpa | 0.6-0.8 | 0.6-0.8 |
| Steam Inlet Diameter | Mm | 150 | 150 |
| Total Power of Installed Machine | Kw | 20.5 | 20.5 |
| Max. External Dimension | Mm | 7700x2150x3270 | 9700x2190x3270 |
| Power Supply | V | 380V or 220V alternated | |
As a professional manufacturer of exterior wall insulation equipment and composite panel equipment, this enterprise is one of the largest and most competitive in the industry. The rock wool production line, polyurethane rock wool color steel composite panel production line and EPS phenolic foam production line developed have all reached international advanced levels and passed ISO 9001 quality management system certification.
The products are utilized extensively across numerous regions and are exported to Europe, Central Asia, and Southeast Asia. With first-class technology and products, high-quality services are provided from product design, research and development, to production and installation training. It is recognized for keeping promises and valuing service quality.
