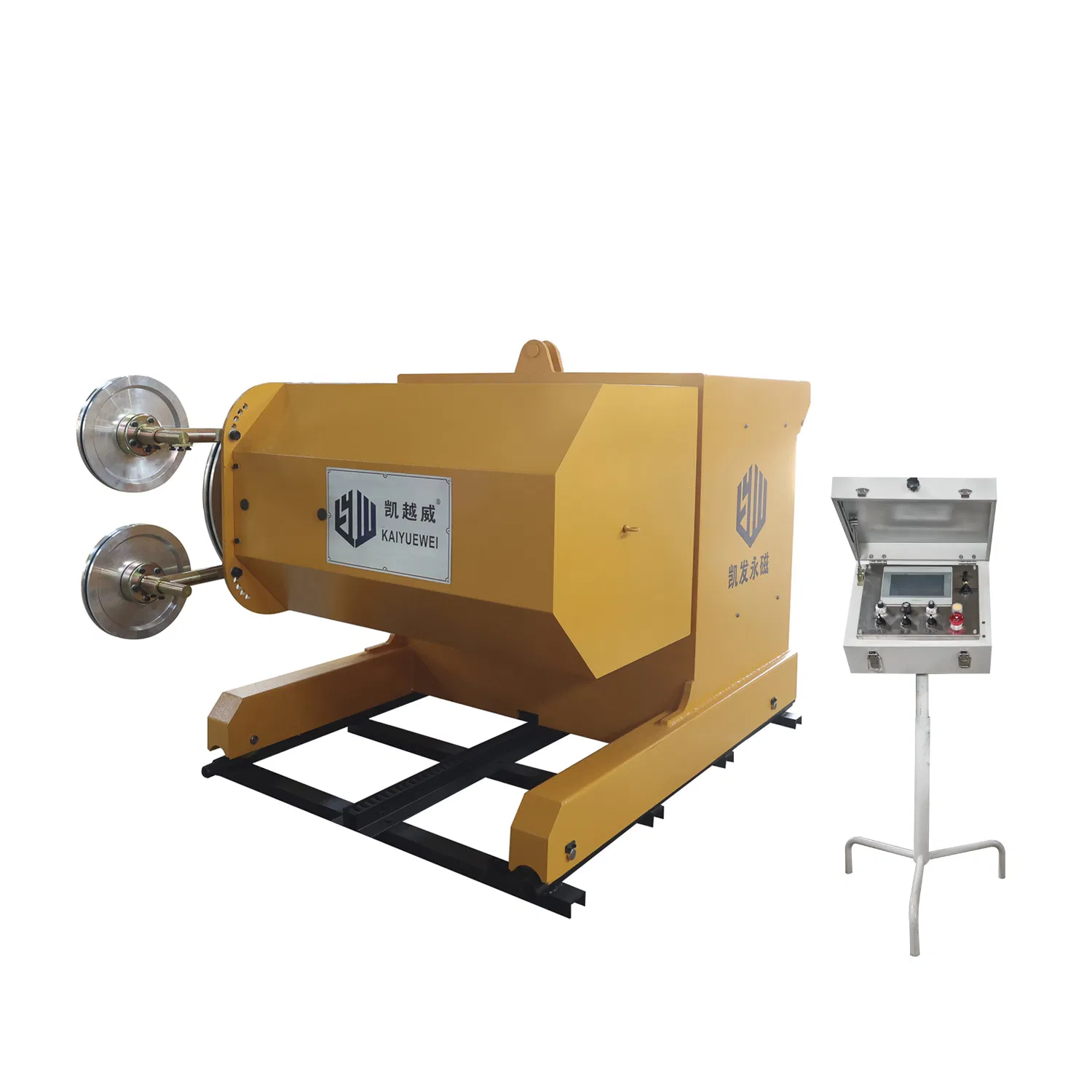

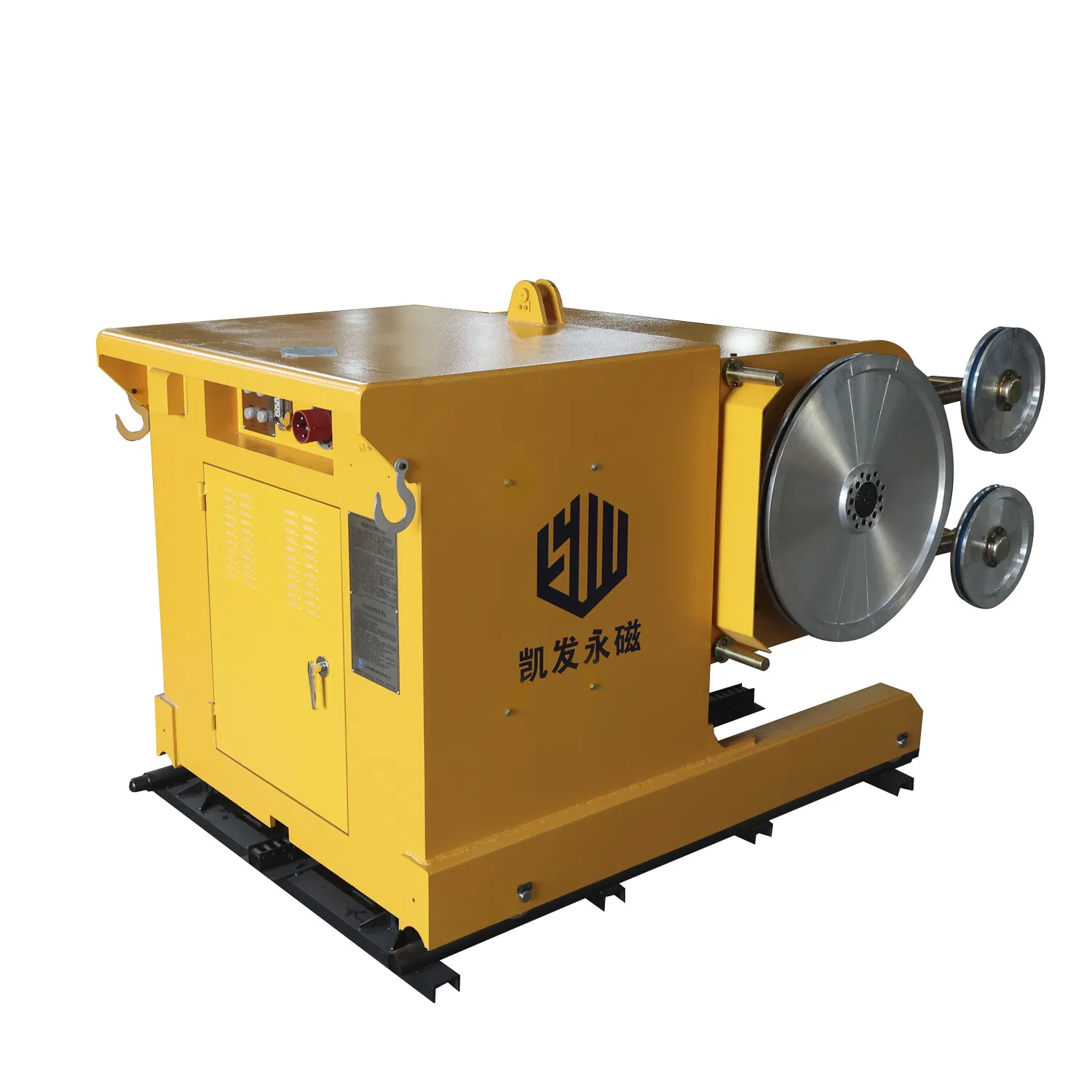

75 Kw Quarry Using Cutting Diamond Wire Saw Machine for Granite
75 Kw Quarry Using Cutting Diamond Wire Saw Machine for Granite
75 Kw Quarry Using Cutting Diamond Wire Saw Machine for Granite
75 Kw Quarry Using Cutting Diamond Wire Saw Machine for Granite
75 Kw Quarry Using Cutting Diamond Wire Saw Machine for Granite
1 / 5
75 Kw Quarry Using Cutting Diamond Wire Saw Machine for Granite
75 Kw Quarry Using Cutting Diamond Wire Saw Machine for Granite
75 Kw Quarry Using Cutting Diamond Wire Saw Machine for Granite
75 Kw Quarry Using Cutting Diamond Wire Saw Machine for Granite
75 Kw Quarry Using Cutting Diamond Wire Saw Machine for Granite

75 Kw Quarry Using Cutting Diamond Wire Saw Machine for Granite

Customization: Available
After-sales Service: Remote Service by Technicians
Warranty: Remote Service by Technicians
Send Inquiry

Product Description

Basic Information
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Control
CNC
Certification
ISO, CE
Transport Package
by Sea
Specification
2500*1500*1550
Origin
China
Technical Specifications
MODEKF-WS-YC75
TOTAL POWER78.75KW
MAIN MOTOR POWER75KW
FLYWHEEL DIAMETER800mm
WIRE SAW SPEED0-40m/s
MAXIMUM CLIMBING ANGLE15°
ROTATION ANGLE(ELECTRIC)360°
WALKING SPEED OF MACHINE0-150m/h
ALLOWED WORKING TEMP-15~+40ºC
DIMENSION (L*W*H)2500*1500*1550mm
NET WEIGHT3.2T
Key Features & Advantages
High Yield & Low Energy Consumption
Utilizes a first-class energy-efficient permanent magnet motor from CATL, with an energy conversion rate up to 99%. Increases mining efficiency by 30% and reduces energy consumption by approximately 10%.
Internet of Things (IoT) Remote Control
Equipped with an IoT system for real-time remote access to cutting data via mobile or computer. Tracks current, speed, walking speed, and cutting duration for fine management.
Dual Operating Modes
Features both touch screen and physical button operation. Optional wireless remote control is available to reduce faults caused by data cable contact issues.
Intelligent Cutting Control
Software-controlled cutting process automatically adjusts travel speed via algorithms to maintain optimal tension, increasing efficiency by more than 10% compared to similar power models.
Diamond Wire Saw Machine 1

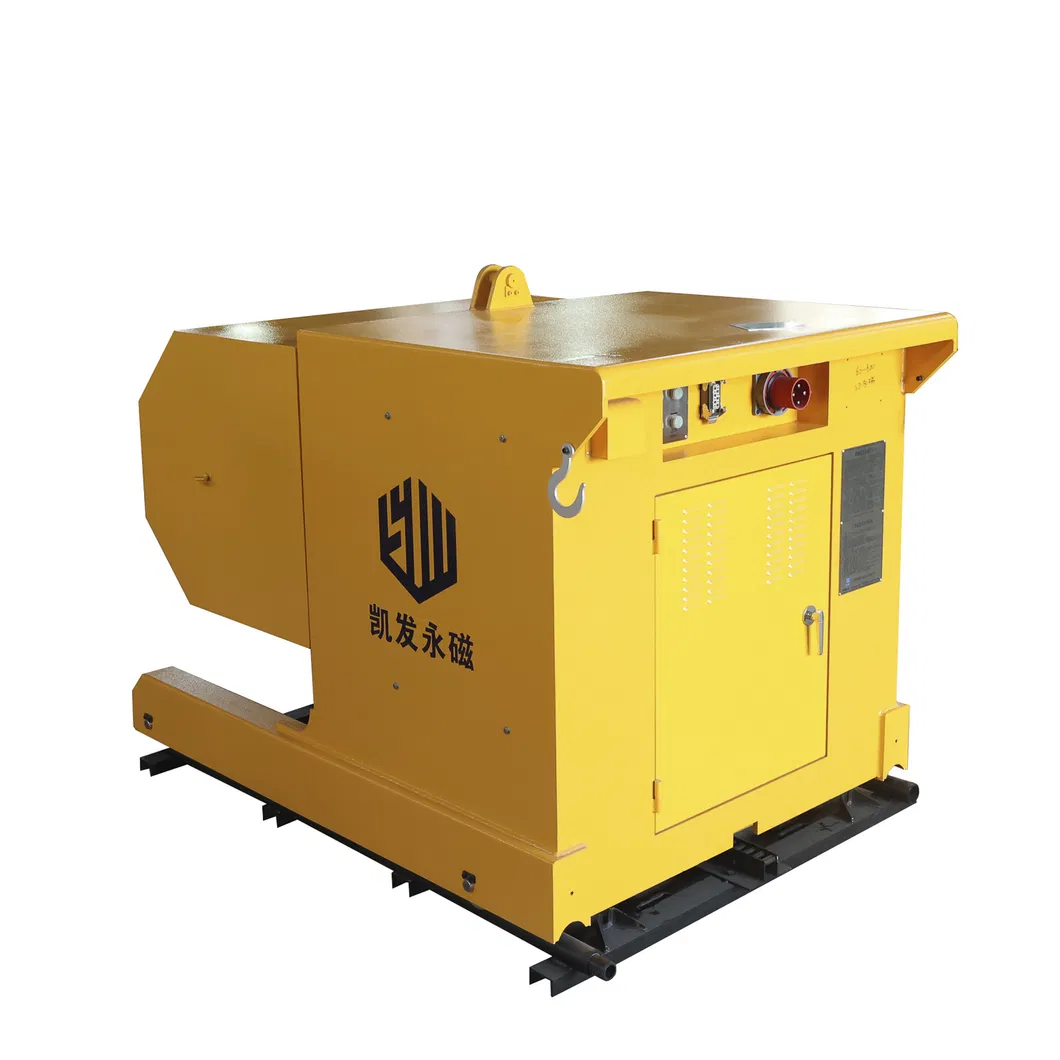

Diamond Wire Saw Machine 2

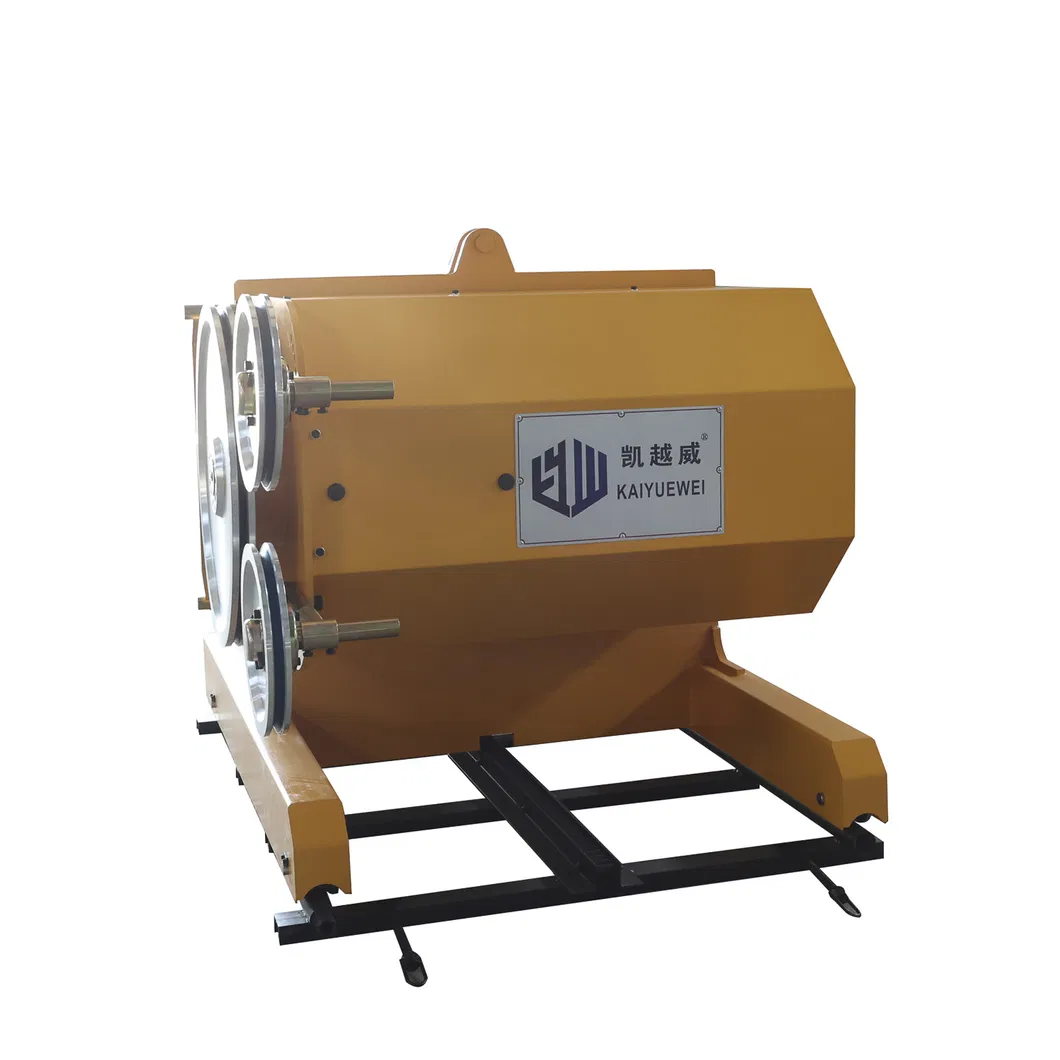

Diamond Wire Saw Machine 3
Diamond Wire Saw Machine 4

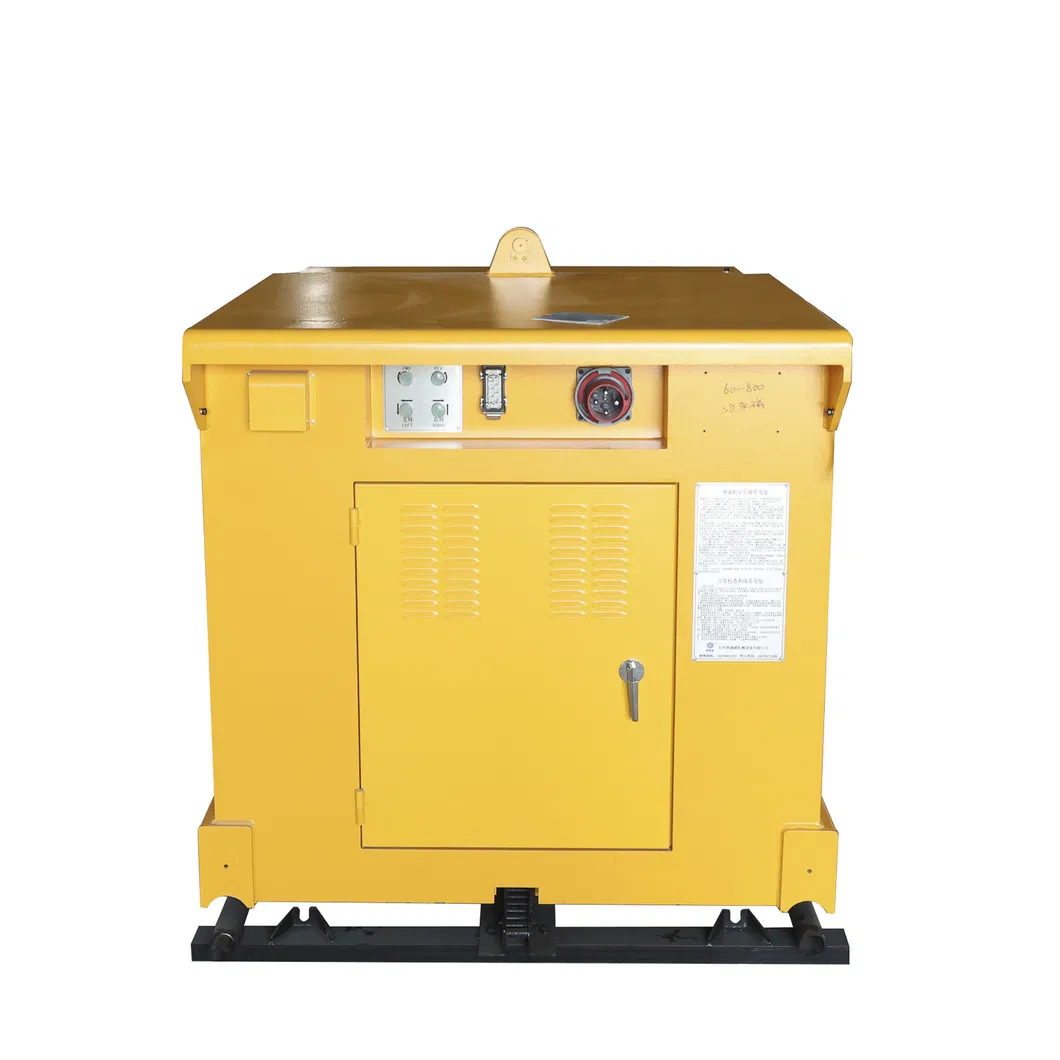

Diamond Wire Saw Machine 5
Diamond Wire Saw Machine 6
Frequently Asked Questions
Q1: What is the main motor power of this wire saw machine?
A: The machine is equipped with a powerful 75KW main motor, with a total power output of 78.75KW.
Q2: Can the machine be operated remotely?
A: Yes, it is equipped with an IoT system for remote data monitoring and supports an optional wireless remote control for operation.
Q3: How does the permanent magnet motor improve efficiency?
A: The CATL permanent magnet motor offers a 99% energy conversion rate, increasing mining efficiency by 30% while reducing energy consumption by 10%.
Q4: What is the rotation capability of the flywheel?
A: The machine features an electric rotation angle of 360°, allowing for flexible cutting directions in the mine.
Q5: Is the cutting process automated?
A: Yes, it uses an intelligent CNC operating system that automatically adjusts travel speed and maintains optimal wire tension for maximum efficiency.
Q6: What are the machine's dimensions and weight?
A: The dimensions are 2500*1500*1550mm (L*W*H) and the net weight is approximately 3.2T.
