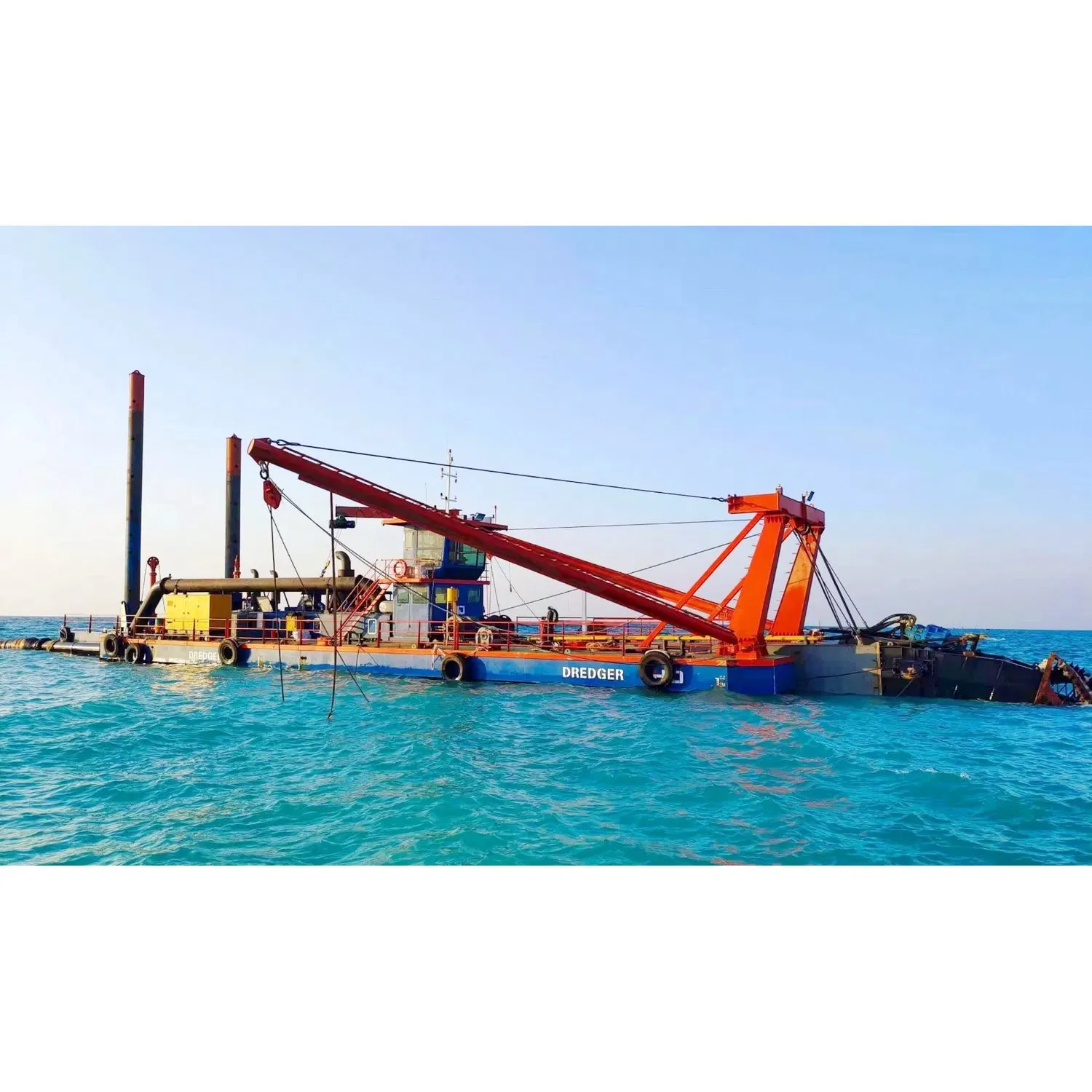

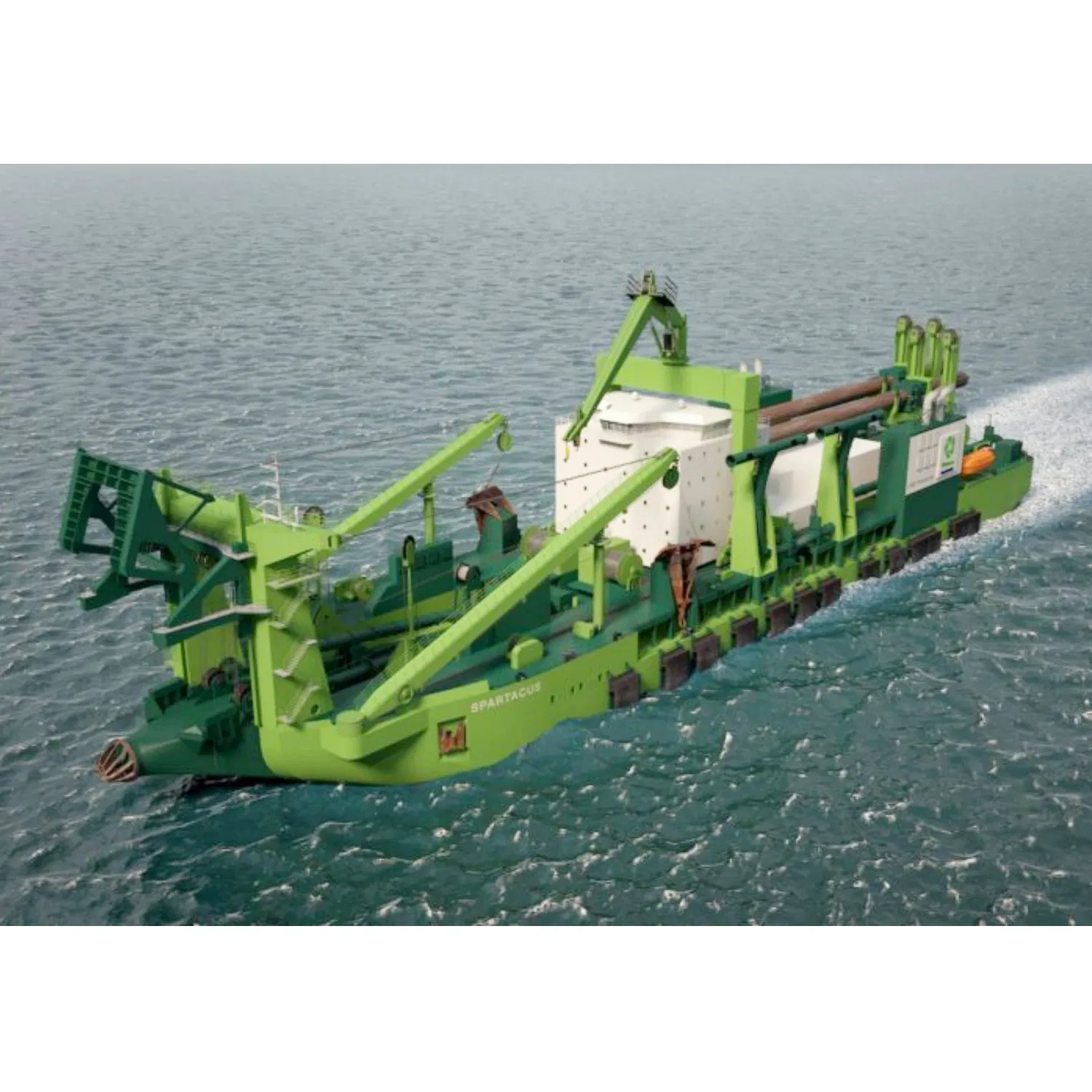

500kw Cutter Head and Heavy Duty Marine Equipment Cutter Suction Dredger

Customization: Available
After-sales Service: Design of Ship Construction Drawings, Ship Mainten
Warranty: According to Classification Society Requirements

Product Description

Basic Information
Model NO.
ZSRD-WN-3803
Type
Cutter Suction Dredger
Power Type
Diesel
Cyclone Type
Hydrocyclone
Slot Type
Cts
Condition
New
Origin
China
HS Code
890510000
🛠️ Product Description
Dredgers are responsible for clearing the silt from waterways and rivers so that other ships can pass smoothly. They are also a powerful tool for blowing sand and filling the sea. There are types such as cutter suction dredgers and trailing suction dredgers. The smooth flow of rivers depends entirely on dredgers.

The task of dredgers is to carry out underwater earthwork construction, specifically: deepening, widening and clearing existing waterways and ports; excavating new waterways, ports and canals; dredging the foundation trenches of docks, docks, locks and other hydraulic structures, and throwing the excavated silt into the deep sea or blowing it into land depressions to create farmland.

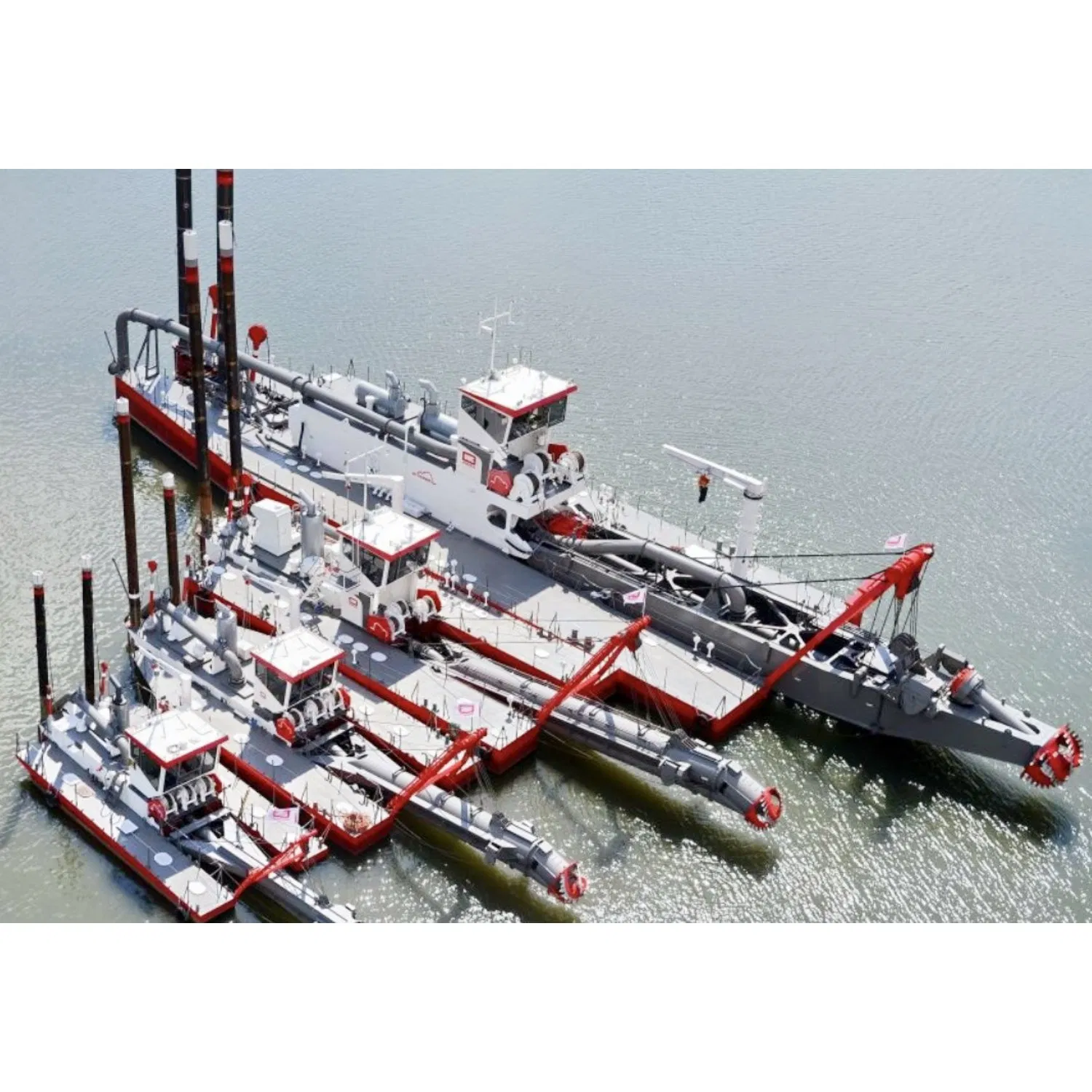

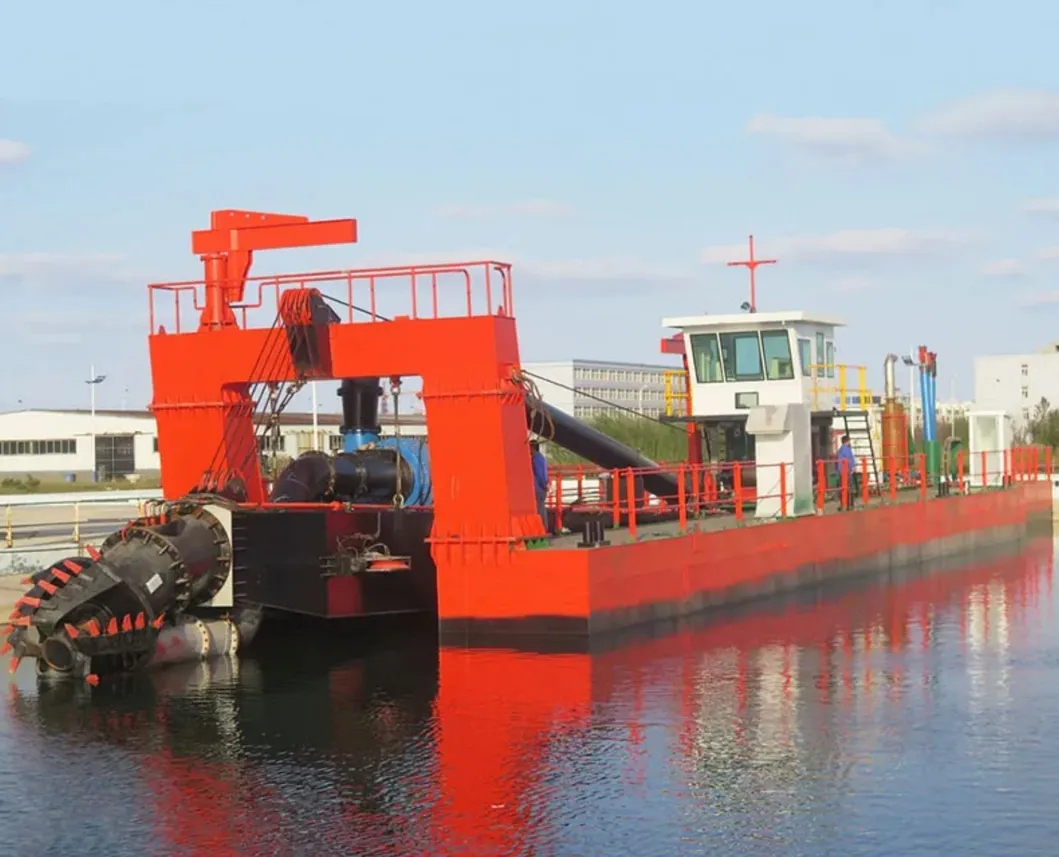

Dredger Image 1

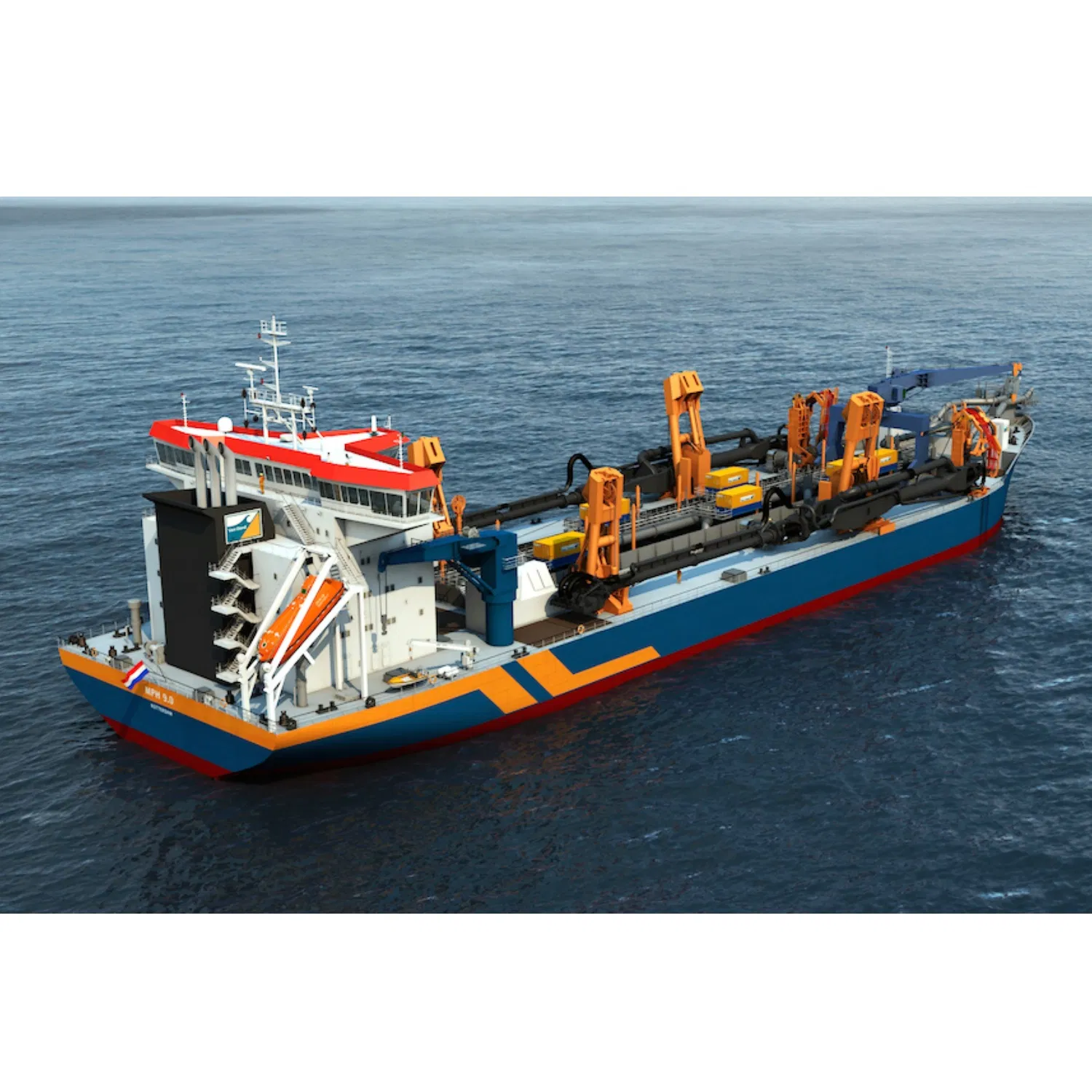

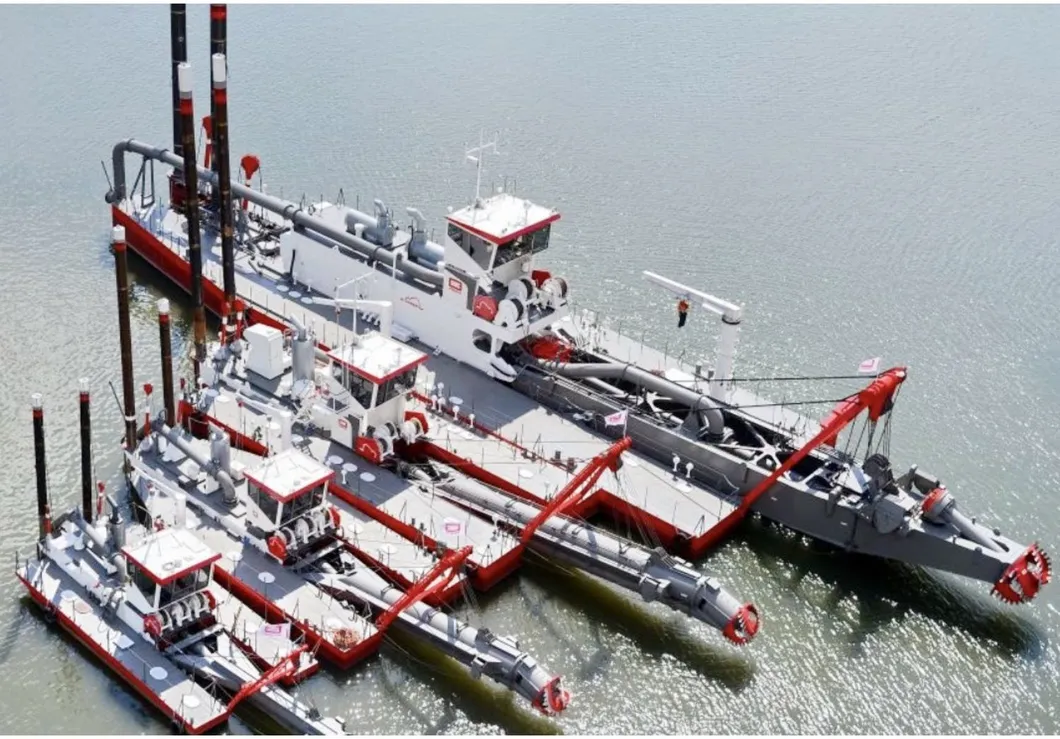

Dredger Image 2

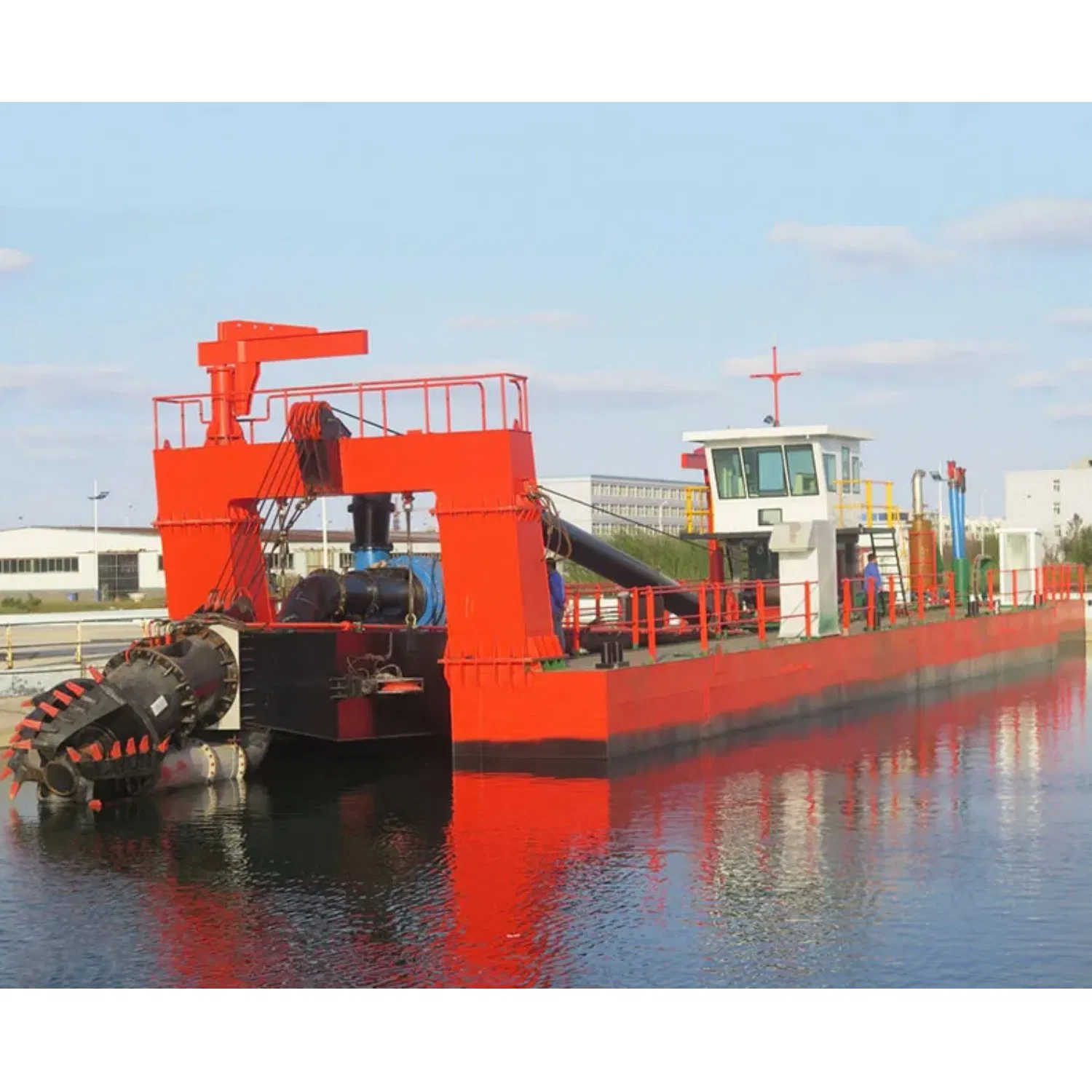

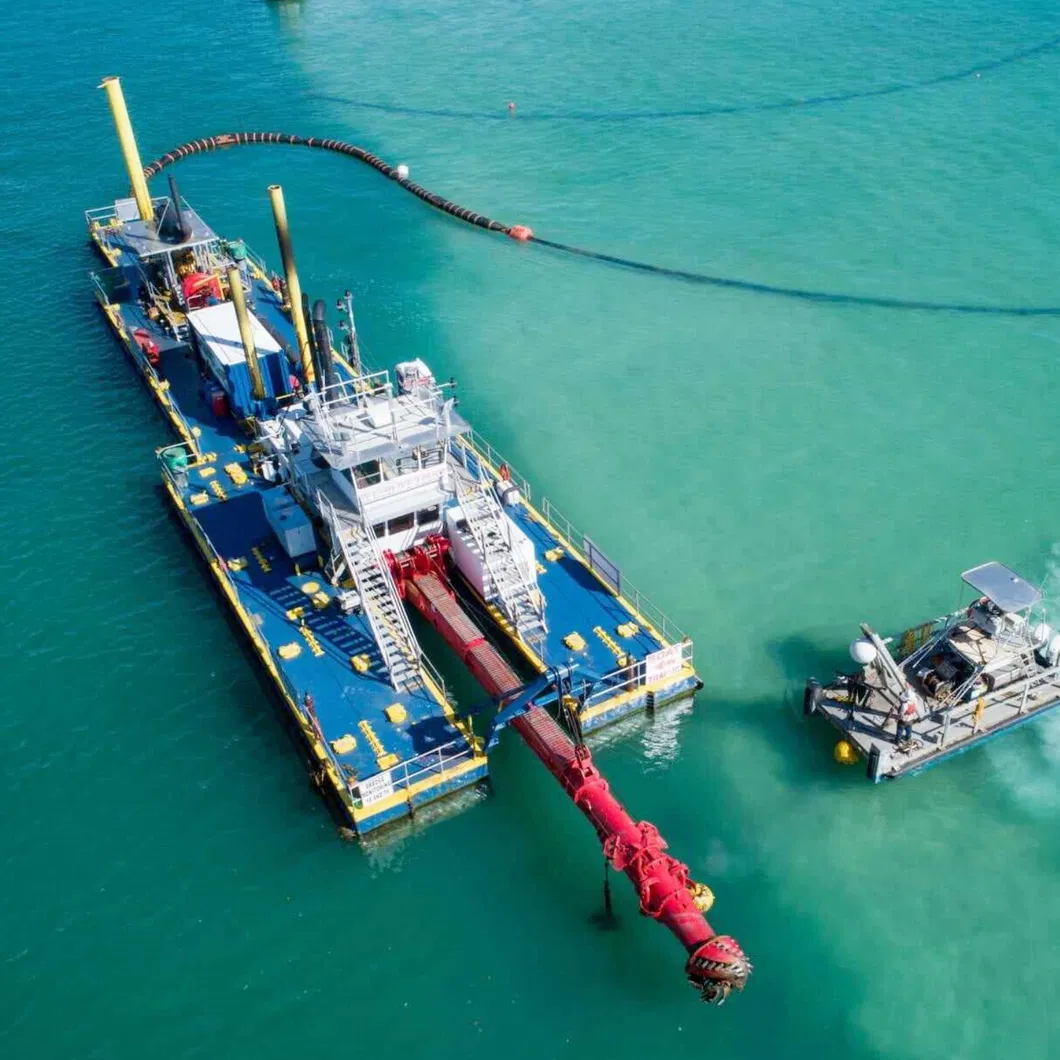

Dredger Image 3
📊 Product Parameters
Parameter Name Specifications Detail
Ship TypeCSD (Cutter Suction Dredger)
ClassZC
Loa (Length Overall)68.8M
Breadth16M
Depth4.8M
Draft3.1M
GT / NT1601T / 408T
Max Dredging Depth28.5M
Clean Water Displacement12500m³
Discharge Distance5000M
Suction / Discharge Pipe Dia.0.9M / 0.85M
Dredge Pump Power2600kw
Total Installed Power9600kw
Aux. Engine Power900kw
Spud SystemSPUD CARRIER
📸 Detailed Photos & Interior

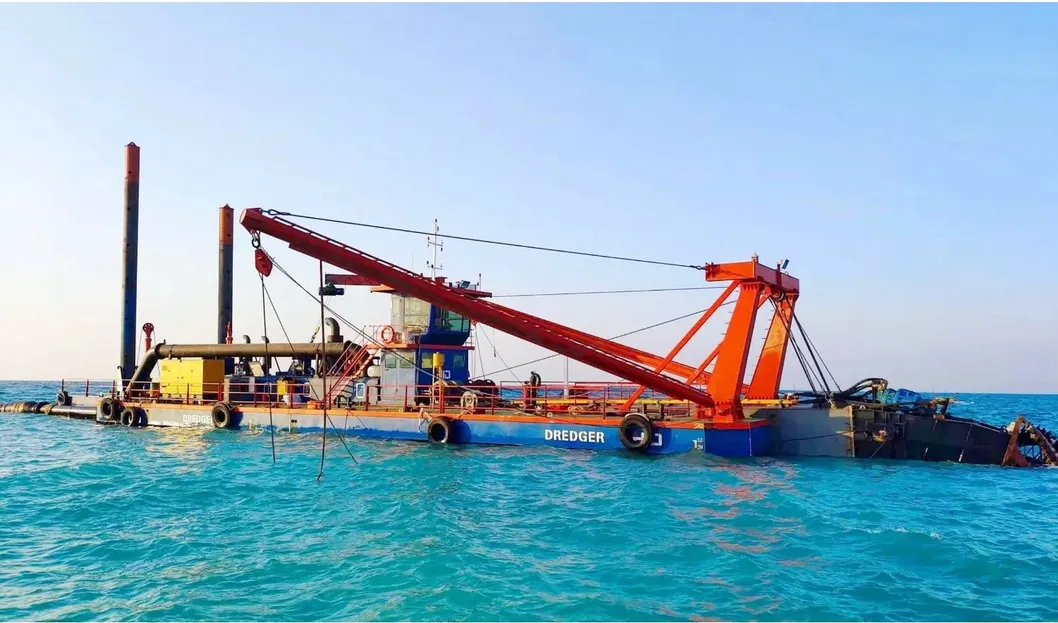

Detail 1

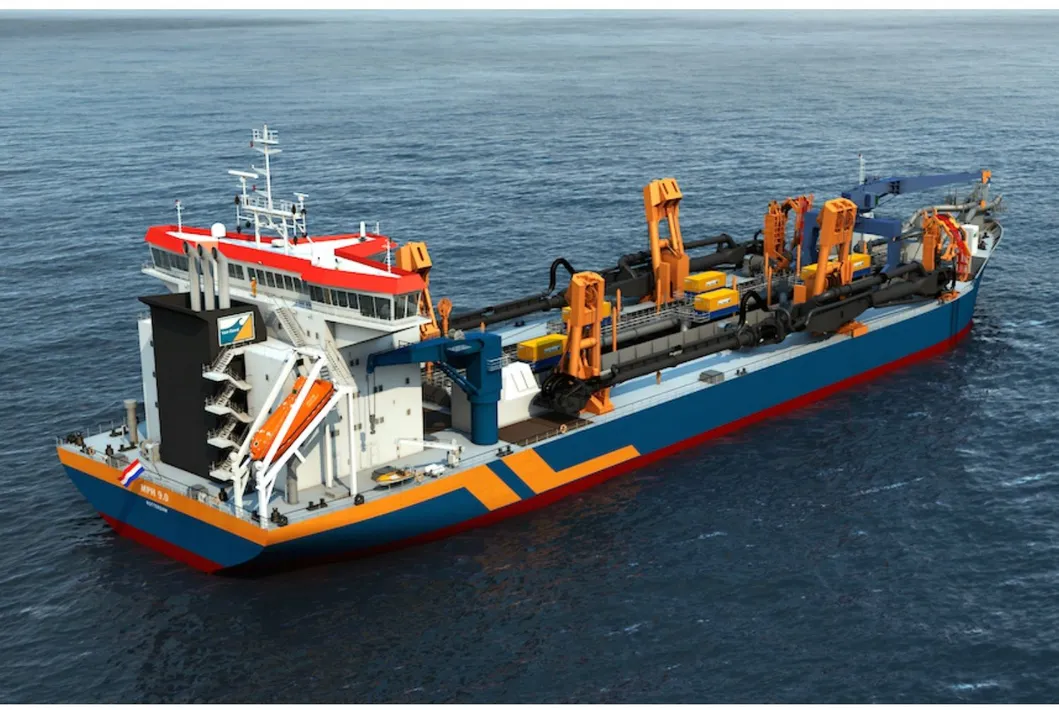

Detail 2

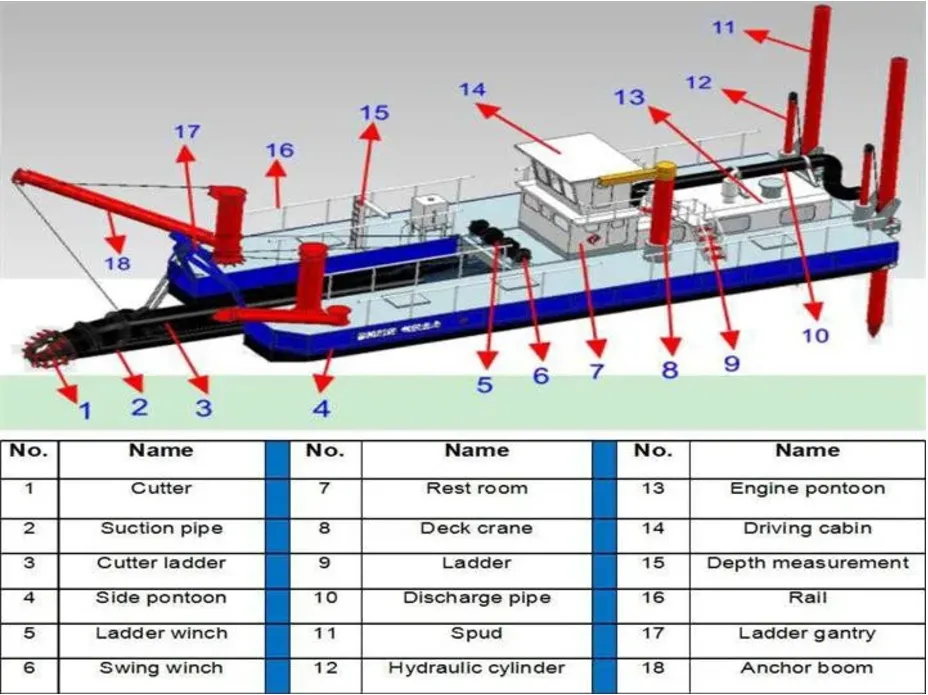

Detail 3

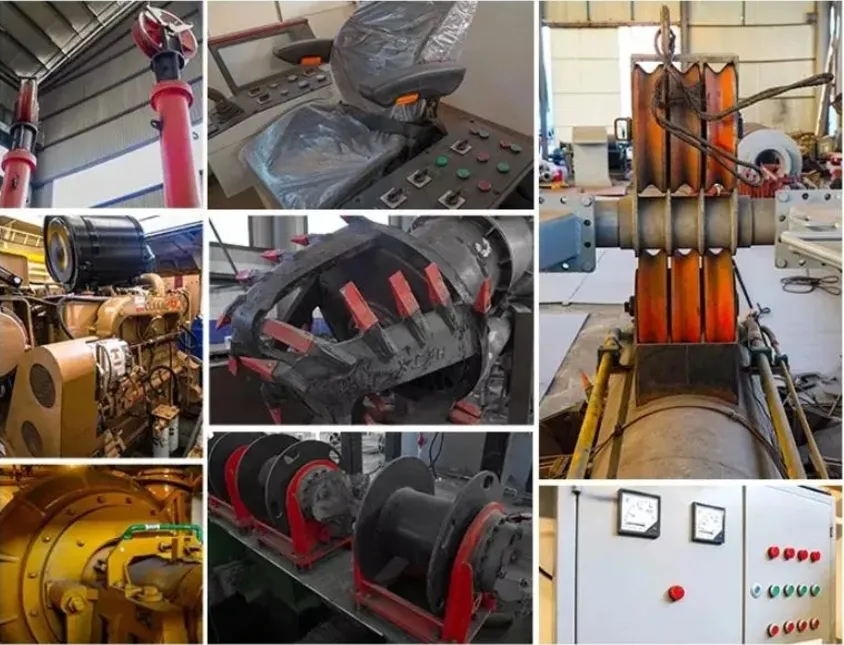

Interior 1

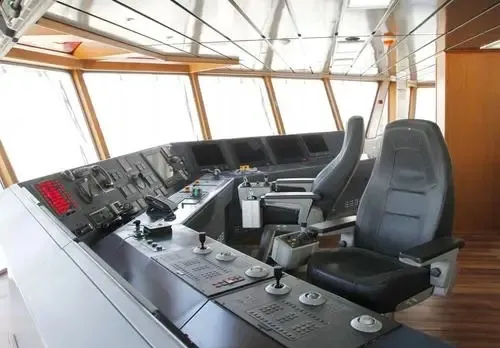

Interior 2

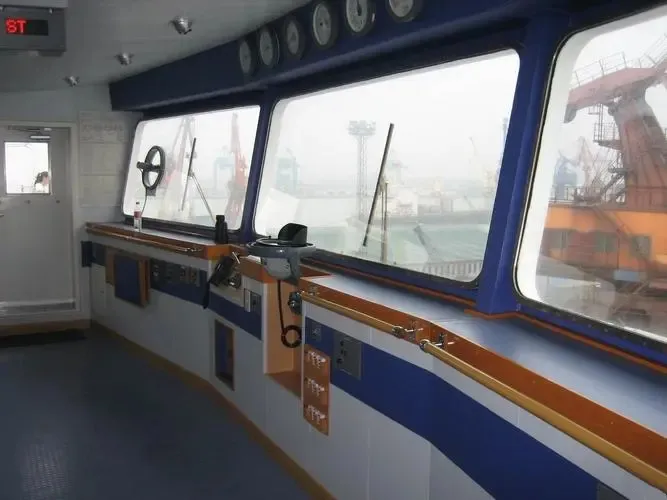

Interior 3
🏭 Factory & Production Process

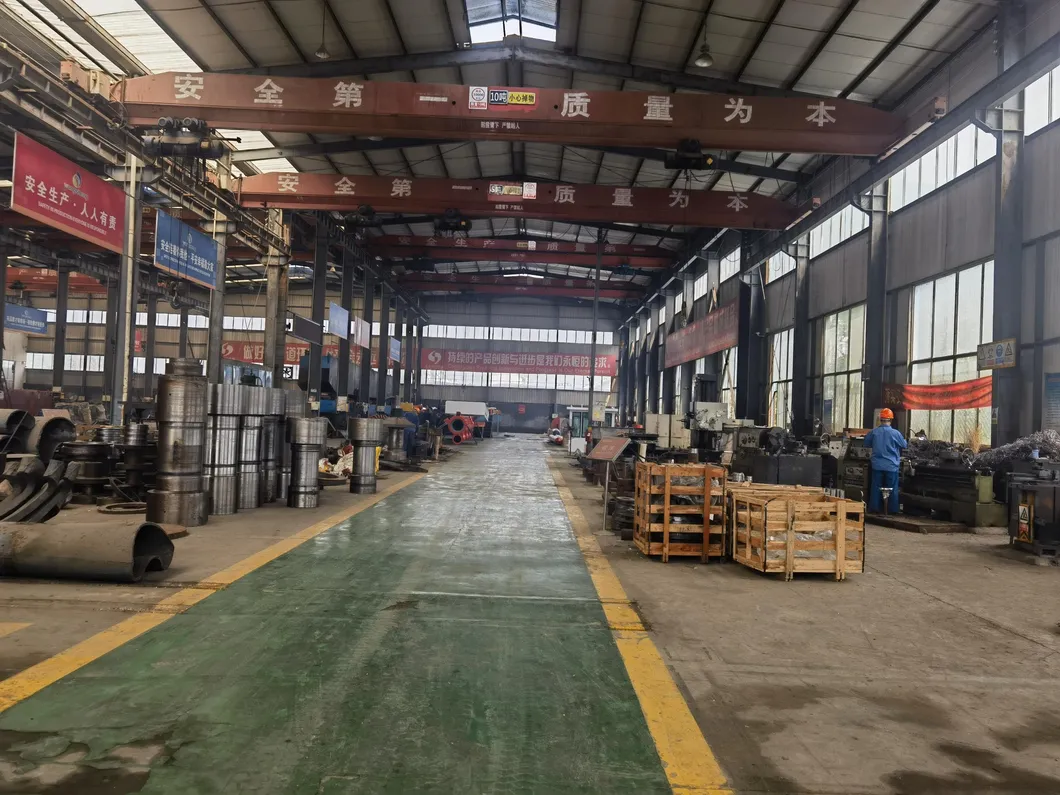

Factory 1

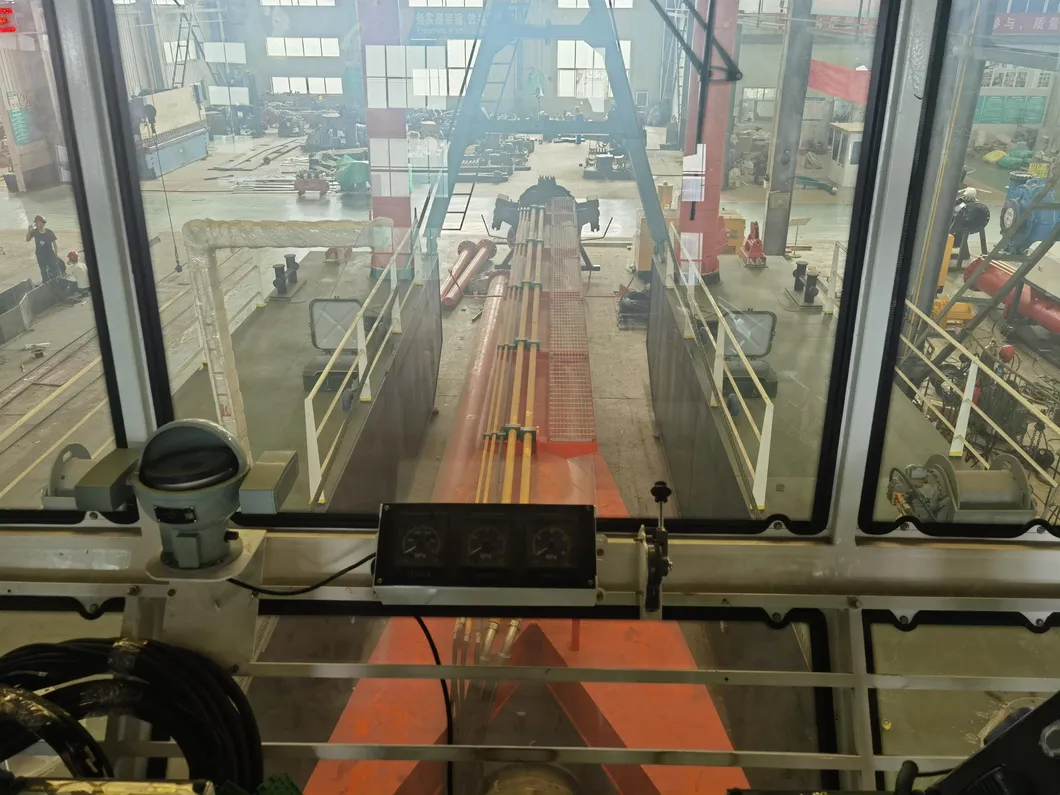

Factory 2

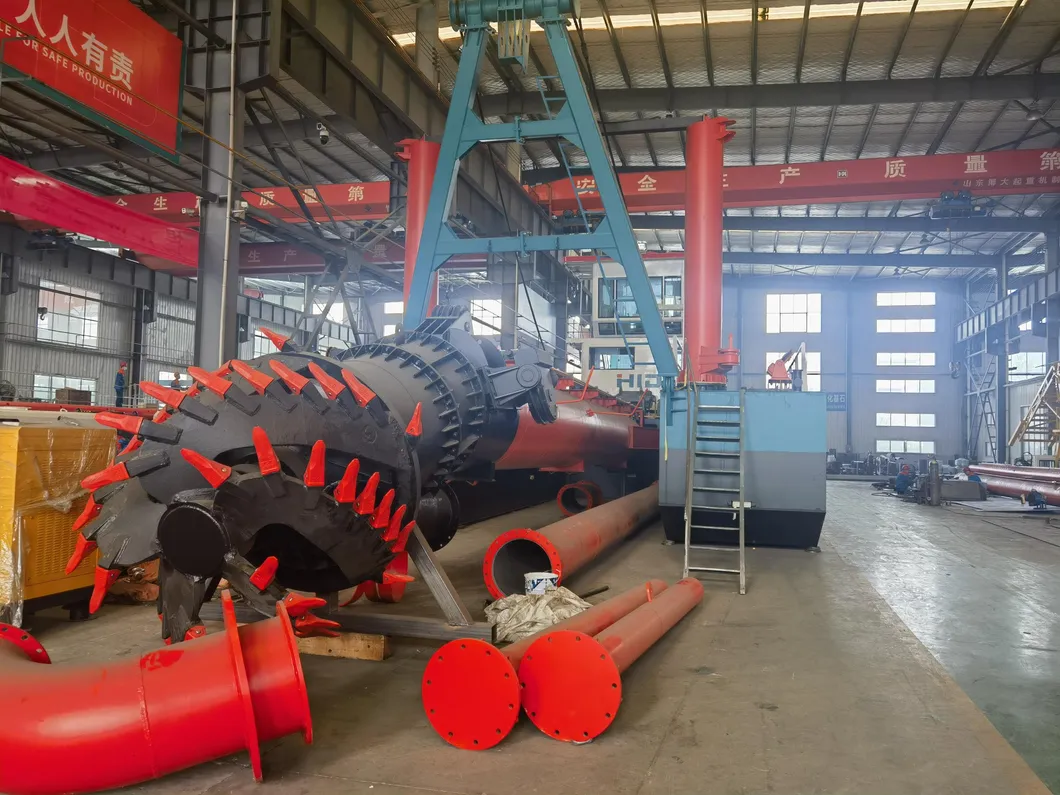

Factory 3

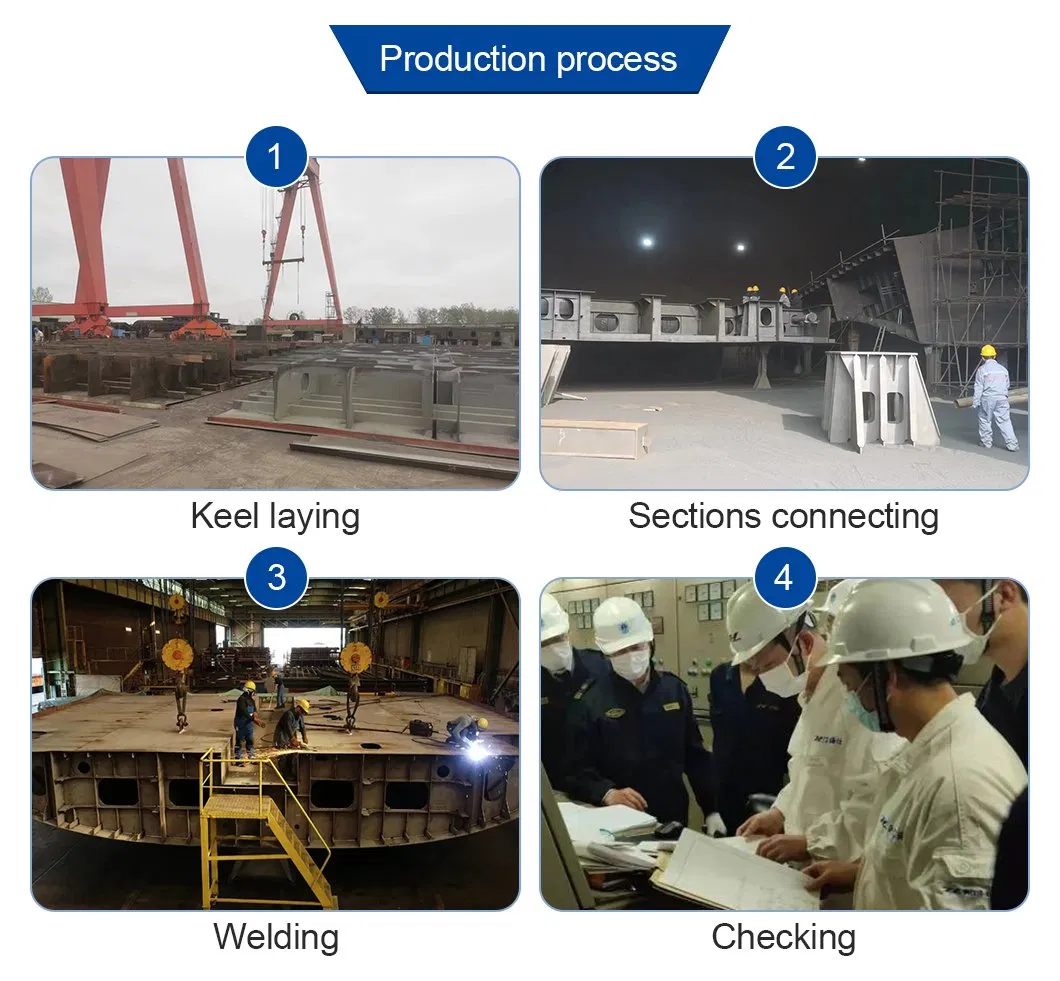

Process 1

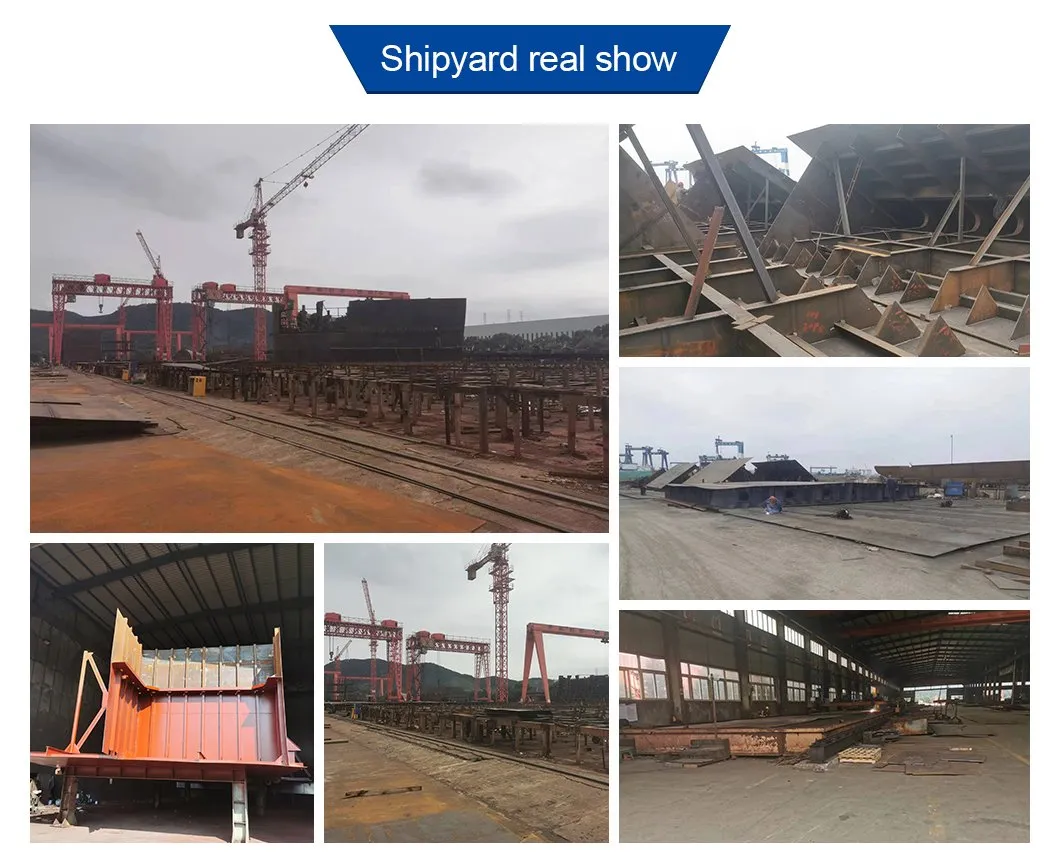

Process 2
Process 3

Vessel Construction Customization

We specialize in building new ocean-going vessels including bulk carriers, general cargo vessels, containers, and oil tankers. To provide an accurate proposal, please clarify requirements regarding DWT/TEUS, navigation area (open sea or coastwise), and preferred classification society (BV or CCS).

Frequently Asked Questions
What is the primary function of this Cutter Suction Dredger?
This equipment is designed for clearing silt from waterways, deepening ports, excavating new canals, and performing sand-blowing for sea reclamation and land creation.
What is the maximum dredging depth and discharge distance?
The dredger can reach a maximum dredging depth of 28.5 meters and has a discharge distance capacity of up to 5000 meters.
What is the total power installation for this model?
The total installed power is 9600kw, which includes a 2600kw dredge pump and a 3700kw inboard pump.
Is this vessel self-propelled?
Based on the technical specifications, this particular model (ZSRD-WN-3803) is not self-propelled and utilizes a spud carrier system for positioning.
Which classification societies are supported?
Construction can be tailored to meet the standards of major classification societies such as BV (Bureau Veritas) or CCS (China Classification Society).
Can the vessel be equipped with additional cranes?
Yes, the construction can be customized to include crane installations based on the specific requirements of the client's operational needs.
